Description

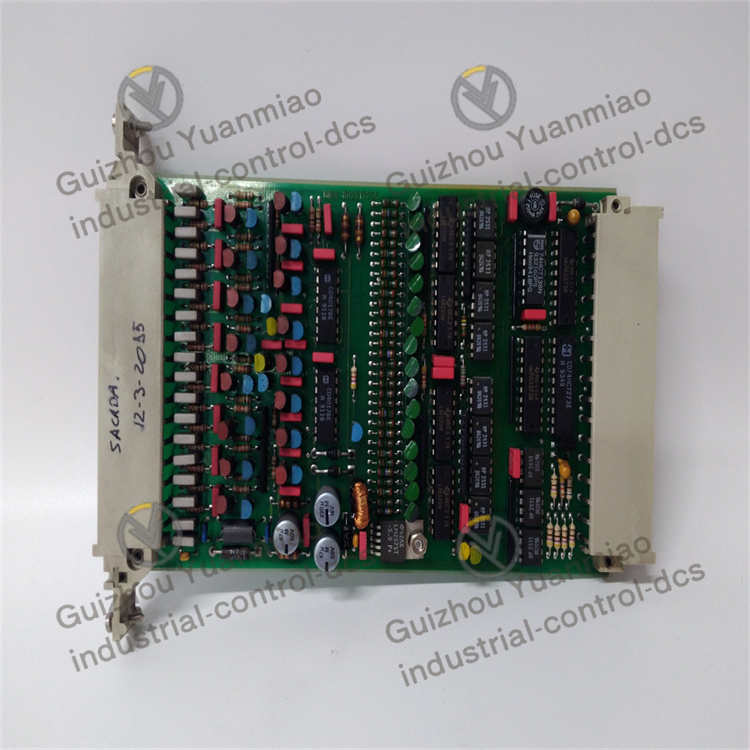

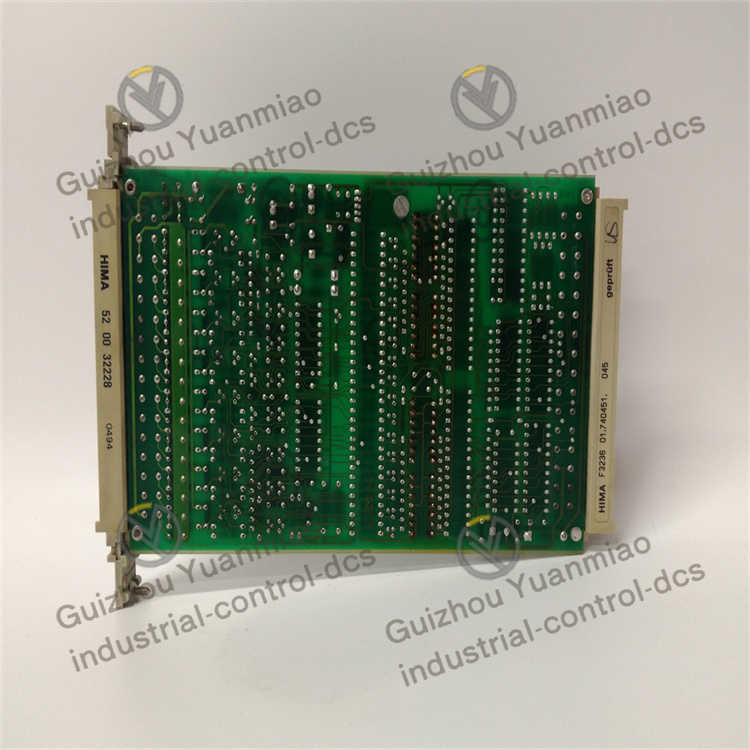

HIMA  F3236  Digital input module

Input points: 16-channel digital input.
Signal type: Suitable for receiving signals from sensors, switches, buttons or other digital devices, and can be used in sensors with safety isolation requirements.
Input method: Supports 1-signal input (6mA, including cable plug) or mechanical contact 24V input.
Power supply mode: Supports 5V DC or 24V DC power supply. The current is 120mA when it is 5V DC and 200mA when it is 24V DC.

Microprocessor: INTEL 386EX is adopted, 32-bit, with a clock frequency of 25MHz.
Storage: 1MB of flash memory EPROM is used for storing the operating system and user programs, and 1MB of SRAM is used for data storage.
Functional testing: During operation, comprehensive tests are automatically conducted, including crosstalk between input and zero travel, the function of filter capacitors, and the function of the module, etc.

Switching time: The typical switching time is 8ms.
Space requirements: 4TE.
Certification: Complies with EN 61508 standard and reaches SIL3 safety level.
Compatibility: Compatible with various HIMA PLCS, including the C300, C500 and C700 series, and also compatible with safety PLCS from other manufacturers.
