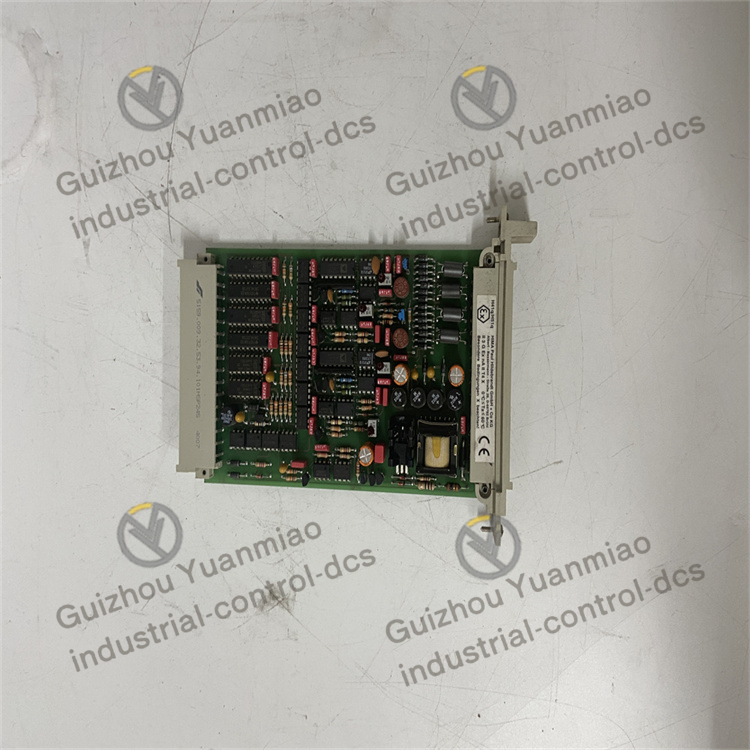

HIMA  F6705  Analog output module

Basic information
Product type: Analog output module, 2x digital/analog converter, for safety-related applications.

Functional characteristics
Multiple output types: Supports multiple analog output types, covering voltage signals, current signals, etc., and can be adapted to different types of sensors and actuators, enhancing its applicability in various industrial scenarios.
High-precision output: It features extremely high output accuracy, capable of precisely controlling the actions of the actuator, reducing production issues caused by control errors, and enhancing the stability and consistency of the production process.

Electrical isolation: Output channel 0/4-20mA, each channel is independently current isolated, featuring safety isolation function and integrated safety shutdown function. It can operate in source or drain mode, meeting the requirement level AK1-6.
High reliability: Inheriting the consistent high reliability feature of HIMA products, from material selection to manufacturing processes, all are strictly controlled. It can stably output signals under long-term and high-intensity industrial operation environments, ensuring the reliable operation of the control system.

Industrial-grade design: Adopting robust and durable industrial-grade design standards, it features outstanding anti-vibration and anti-interference capabilities, and can adapt to harsh industrial environments such as high temperatures, ensuring accurate output of analog signals and the normal operation of the system.
Communication capability: It usually has interfaces for communication with other devices or systems, such as Ethernet, serial interfaces, etc., to achieve data exchange and control operations with external devices.

Technical parameters
Resolution: 12 bits (4095 steps) 0 corresponds to 0mA and 3840 corresponds to 20mA.
Load: In source mode, the load, including line resistance, is ≤550Ω. In drain mode, the load is ≤(Uq – 10V)/21.2mA (Uq is the source voltage).
Error: The basic error at 25℃ is ≤0.2% (40μA); The operating error is ≤0.4% at 0 – +60℃.
Line length: up to 1000m (considering load).
Electrical strength: 250V to simulated ground.
When inserted in the basic state: ≤40μA.
Source voltage (Uq) in drain mode: 10-30V.
Space requirements: 4TE.
Working data: 5V DC/85mA, 24V DC/130mA.
