Description

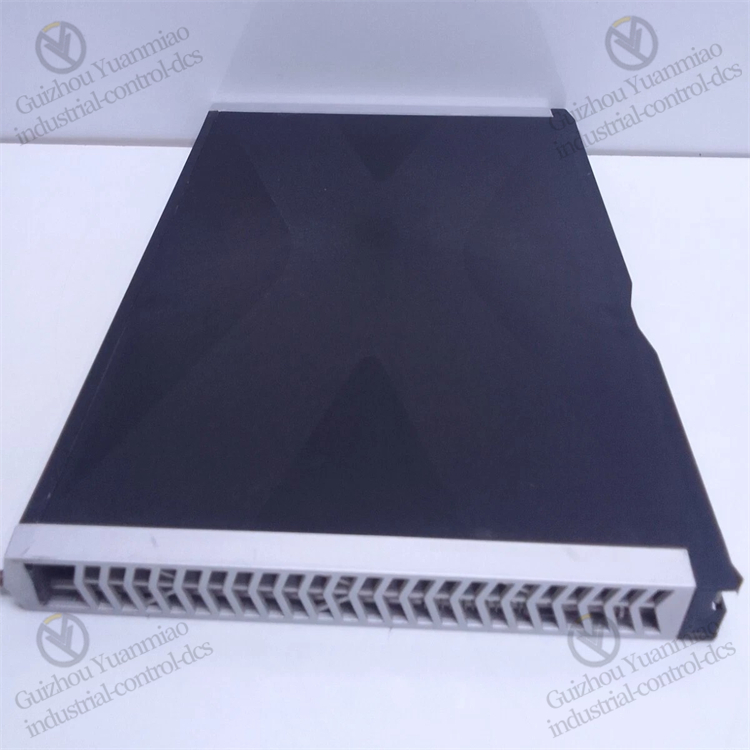

HIMA X-SB01 System Bus Module
Functional Characteristics:
- Digital Input Evaluation: It can evaluate up to 16 digital input signals, providing rich input data for the system.
- High Reliability: Adopting high-quality electronic components and reliable manufacturing processes, it can operate stably and reliably under harsh environmental conditions.
- High Efficiency Performance: It has fast data transmission and response capabilities, enabling efficient data exchange and control functions.
- Easy Configuration and Use: It provides an easy-to-use user interface and configuration tools, facilitating users to set parameters and perform operational control.
- Strong Compatibility: It can seamlessly integrate with various industrial automation equipment and systems to achieve efficient and reliable system bus functions.
Technical Parameters:
- Power Supply Voltage: 24VDC.
- Maximum Input Current: 0.65A.
- Protection Class: IP20.
- Dimensions: Approximately 23×2.92×31cm.
- Weight: Approximately 1.2kg.
Working Principle: The HIMA X-SB01 system bus module supports multiple system bus protocols such as Profinet and EtherNet/IP. Through these protocols, it networks various devices connected to the bus (such as sensors, controllers, actuators, etc.) to realize data communication between devices. The module receives signals from devices like sensors, encodes and packages the data according to specific bus protocols, and then transmits the data to target devices (such as controllers) through the bus. At the same time, it can receive instruction data sent by the controller, decode it, and transmit it to corresponding actuators and other devices, thereby realizing the collaborative work of the entire system. In addition, the module is equipped with data verification and error correction functions to ensure the accuracy of data during transmission. Moreover, through internal circuit design and software algorithms, it realizes the management and control of bus communication, such as arbitrating bus access rights to avoid data conflicts.
Application Fields:
- Petrochemical Field: It can be used in places such as oil pumping units, combined stations, and oil depots to realize status monitoring and control of on-site equipment, ensuring the safety and stability of the petrochemical production process.
- Metallurgical Industry: It is suitable for steel mills, iron works, coal mines, copper mines, aluminum factories, etc. It can connect various detection instruments and control equipment to realize automatic control and scheduling of the production process.
- Cement Industry: In the links of cement production such as mixing, batching, concrete preparation, and rotary kiln control, it can effectively transmit data, ensure the coordinated operation of each process, and improve production efficiency and product quality.
- Boiler Field: Whether it is industrial boilers, civil boilers, heat treatment furnaces, single crystal furnaces, kilns, etc., this module can be used to connect temperature, pressure and other sensors and burners and other actuators to realize automatic control and safety protection of boilers.
- Water Treatment Field: It can be applied to industrial and civil water treatment, environmental sewage treatment, urban residential area water supply, urban central heating and water supply, and towerless water supply equipment, etc. It monitors and controls various parameters in the water treatment process to ensure the normal operation of water quality and water supply systems.
- Construction Field: In building automation systems, it can be used in access control, fire prevention, anti-theft, elevator control, central air conditioning and other systems to realize intelligent management and control of various equipment in buildings.
- Machinery Field: It is suitable for various mechanical equipment such as pharmaceutical machinery, plastic machinery, textile machinery, rubber machinery, mining machinery, and tobacco machinery. It helps realize automatic operation and fault diagnosis of equipment, and improves the operation efficiency and reliability of equipment.
