Description

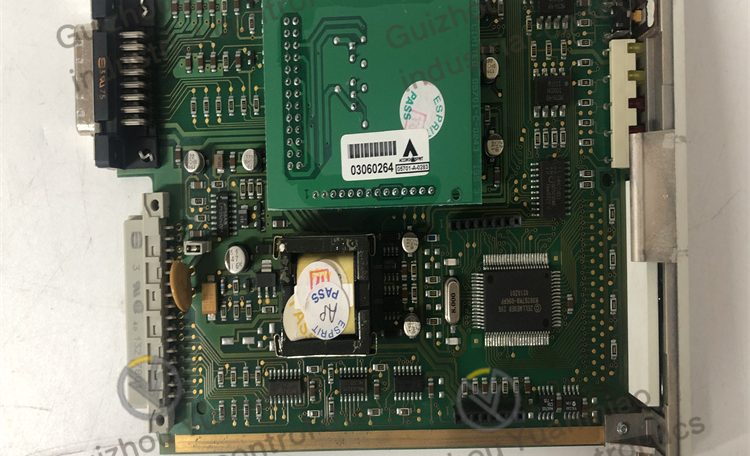

Honeywell  05701-A-0351  Single-Channel Gas Detection Control Card

Basic Information

• Product Type: Infrared-type single-channel gas detection control card.
• Brand: Honeywell.
• Power Supply Voltage: 24V DC.
• Power Consumption: 5W.
• Operating Temperature: -40°C to +85°C.
• Protection Level: IP65.
• Dimensions: 140 mm x 210 mm x 40 mm.
• Form Factor: DIN 3106.
• Connector: 1 x 50-pin D-Sub connector.

Main Features

• Advanced Detection Technology: Adopts infrared detection technology, capable of detecting various gases, including combustible gases, toxic gases, and inert gases. It features high precision and sensitivity, enabling effective detection of low-concentration gases.
• High Reliability: Manufactured with high-quality components and subjected to strict testing, ensuring stable operation in harsh environments.
• Easy to Use: Provides clear documentation and detailed software tools, facilitating quick integration of the module into systems. Installation and operation are both convenient.

I/O Configuration

• Analog Input: 1 channel, supporting 0-10V or 4-20mA signal input.
• Analog Output: 1 channel, capable of outputting 0-10V or 4-20mA signals.
• Digital Input: 2 channels.
• Digital Output: 2 channels.

Communication Capability

• Typically supports multiple digital communication protocols. Some models are equipped with an RS-485 communication interface, enabling data exchange with central monitoring systems, PLCs, or other devices for convenient remote monitoring and system integration.

Functional Characteristics

• Alarm Function: Triggers audible, visual, and/or digital alarms when gas leaks or harmful gas concentrations exceed safe thresholds, promptly notifying relevant personnel.
• Data Recording: Some versions may have a data recording function, which can log gas concentration data for subsequent analysis and reporting.
• Self-Diagnosis Function: May  have self-diagnosis capability to detect sensor or equipment failures, ensuring system reliability and stability.
• Programmability: Some versions are programmable, allowing configuration and customization according to different application requirements, thus enhancing system flexibility and adaptability.

Application Fields

• Industrial Control: Used for monitoring gas concentrations in industrial production processes to ensure production safety.
• Factory Automation: As part of an automation system, it realizes real-time monitoring and control of gas concentrations to ensure the normal progression of production processes.
• Process Control: Used to control gas concentrations in industrial production processes, ensuring product quality and production efficiency.
• Instrumentation and Alarm: Provides gas leakage alarm signals to support safety protection.
• Emergency Incident Handling: Provides gas concentration data in emergency situations to serve as a basis for emergency response.
