Description

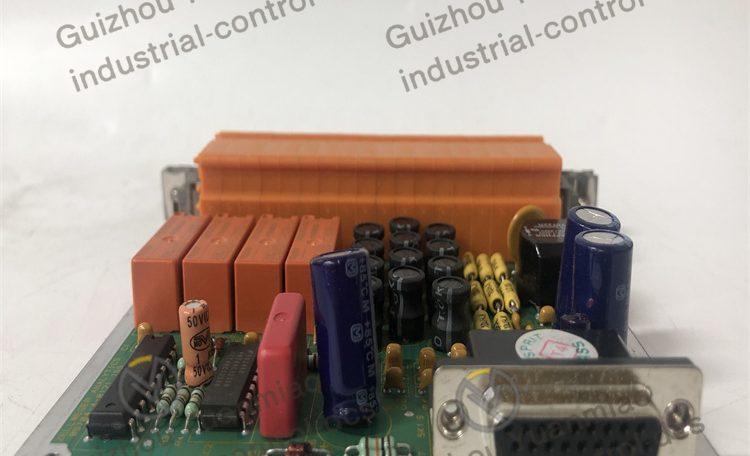

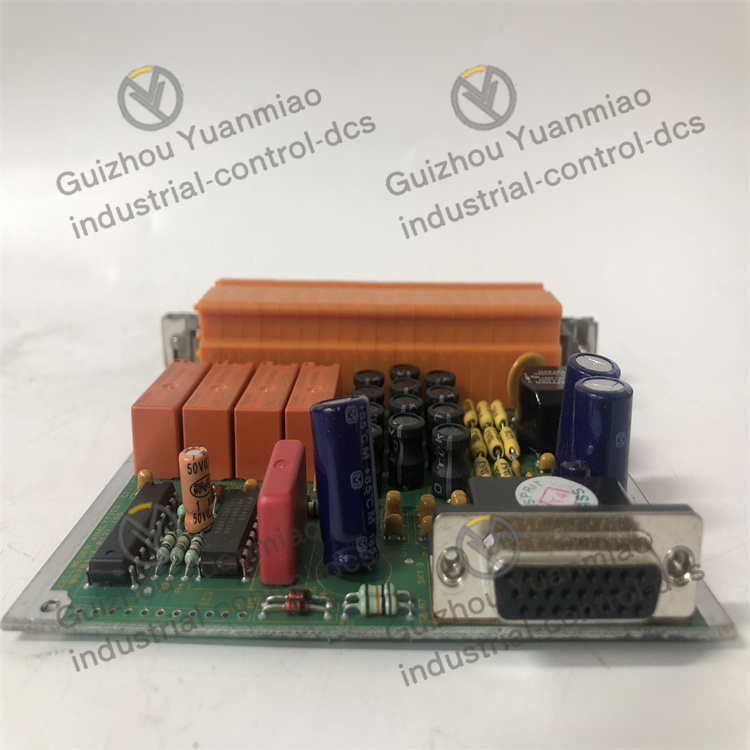

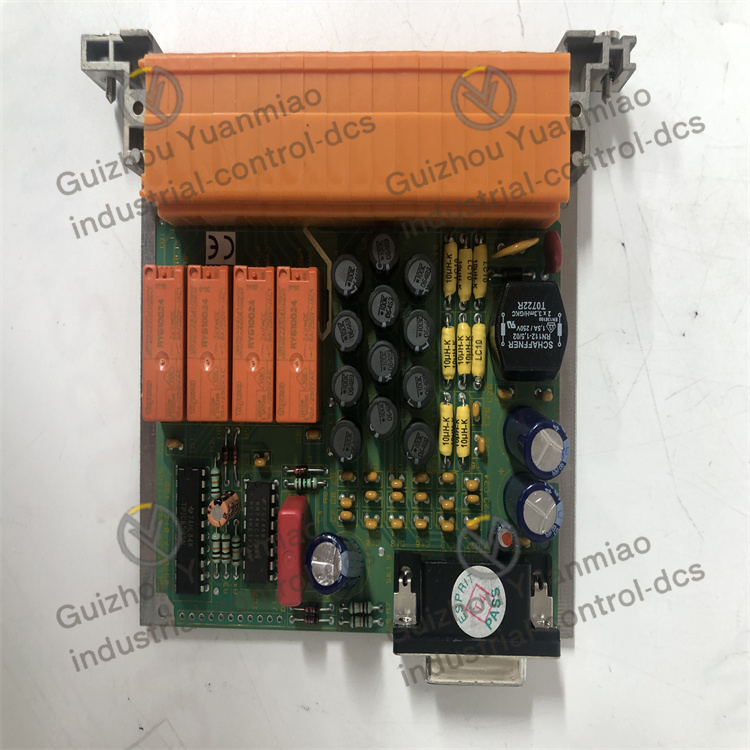

Honeywell  05701-A-0361  Industrial Automation Module

Basic Parameters

• Power Supply Voltage: Typically 24V DC.
• Power: 250W.
• Operating Temperature: -40°C to 70°C.
• Storage Temperature: -40°C to 85°C.
• Humidity Range: 5% to 95% (non-condensing).
• Protection Level: IP67.
• Dimensions: Approximately 140mm x 100mm x 25mm.
• Weight: Approximately 0.5kg.

Communication Capability

I/O Configuration

• Analog Input: 1 channel.
• Digital Input: 1 channel.
• Analog Output: 1 channel.
• Digital Output: 1 channel.
• Measurement Range: 0 to 100 psi.
• Output Signal: 4 to 20 mA.

Functional Features

• Diverse I/O Interfaces: Typically includes multiple analog inputs, digital inputs, and digital outputs. It supports input signal types such as voltage, current, or frequency signals, and outputs in forms like relay outputs or digital signals, meeting diverse signal access and control requirements.
• Wide Voltage Operating Range: The working voltage range is 18-32VDC, with a common supply voltage of 24VDC. This wide range ensures stable operation in different power supply environments.
• Harsh Environment Adaptability: With an operating temperature range of -40°C to 70°C and a protection level of IP65, it features excellent dust and water resistance, as well as tolerance to vibration and other harsh conditions, enabling stable operation in various complex industrial scenarios.
• Multiple Communication Protocols Support: Supports protocols like RS232, RS485, and CAN, facilitating data exchange with central monitoring systems, PLCs, or other devices for remote monitoring and system integration, and fitting well into different industrial automation systems.
• High-Precision Control: Adopting advanced technology, the control accuracy reaches ±0.5%, enabling precise control of physical quantities such as temperature, pressure, and flow to ensure the precision of production processes.
• Rapid Response and Load Adaptation: Quickly responds to load changes and adjusts in a timely manner according to actual conditions, ensuring system stability and reliable operation.
• Multifunctional Measurement: Supports measurement of multiple physical quantities such as temperature, pressure, flow, and position, applicable to various industrial scenarios for monitoring and controlling different parameters.
• Alarm Management Function: Equipped with an alarm management function, it promptly sends alarm signals when monitored parameters or other 异常 (abnormalities) occur, notifying relevant personnel for handling and safeguarding system safety.
• Multi-Channel Monitoring: Enables multi-channel monitoring, allowing simultaneous monitoring of multiple points or parameters to improve monitoring efficiency and comprehensiveness.
• High Reliability and Durability: Manufactured with high-quality materials, subjected to strict testing, and designed for long life, it has low maintenance costs, ensures stable operation over long periods, reduces maintenance and replacement frequencies, and lowers usage costs.
• Good Flexibility and Expandability: Supports software programming, allowing users to configure and customize it via programming according to different application needs, such as setting parameters and adjusting control logic. Meanwhile, the modular design facilitates installation, maintenance, and expansion, enabling combination and upgrading as required.

Application Fields

• Industrial Manufacturing: Used in industries such as automotive manufacturing, food processing, and metal processing to control and monitor production line equipment.
• Energy Industry: Applied in oil and gas, power systems, etc., for pressure monitoring, temperature control, and system monitoring and protection.
• Chemical Industry: Achieves chemical reaction control, pressure monitoring, etc., ensuring the safety and stability of chemical production.
• Other Fields: Also applicable to textile machinery, wastewater treatment, metallurgy, papermaking, etc., providing support for automation control and safety monitoring in these fields.
