Description

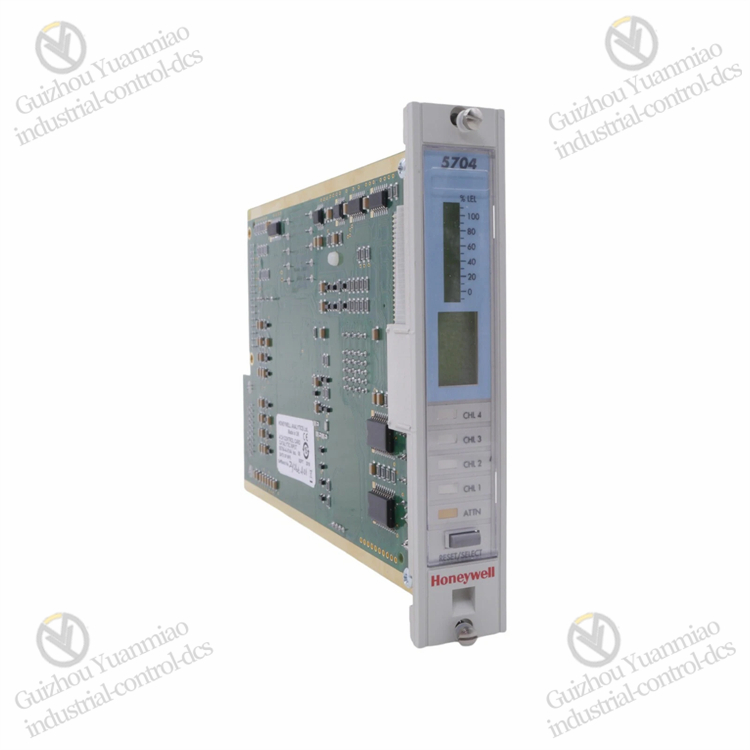

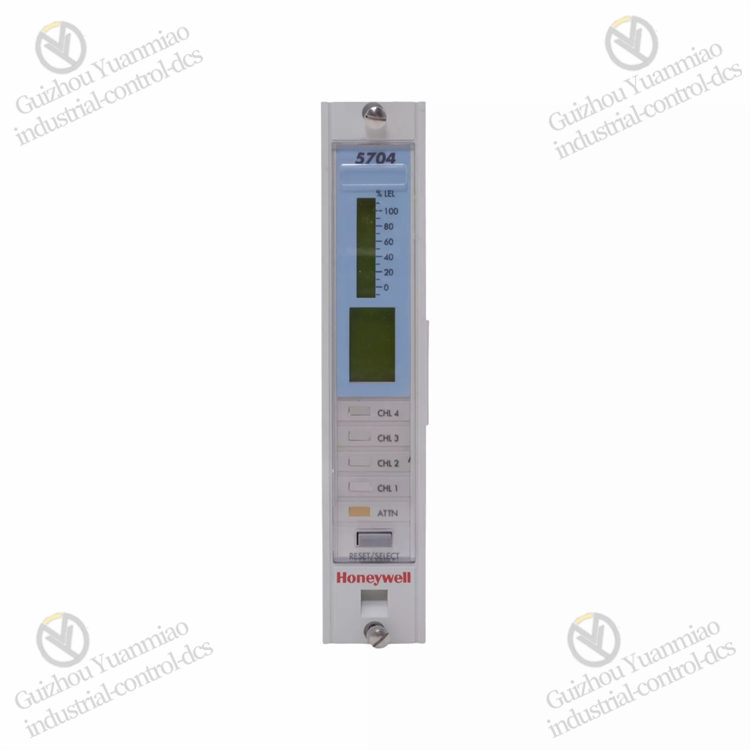

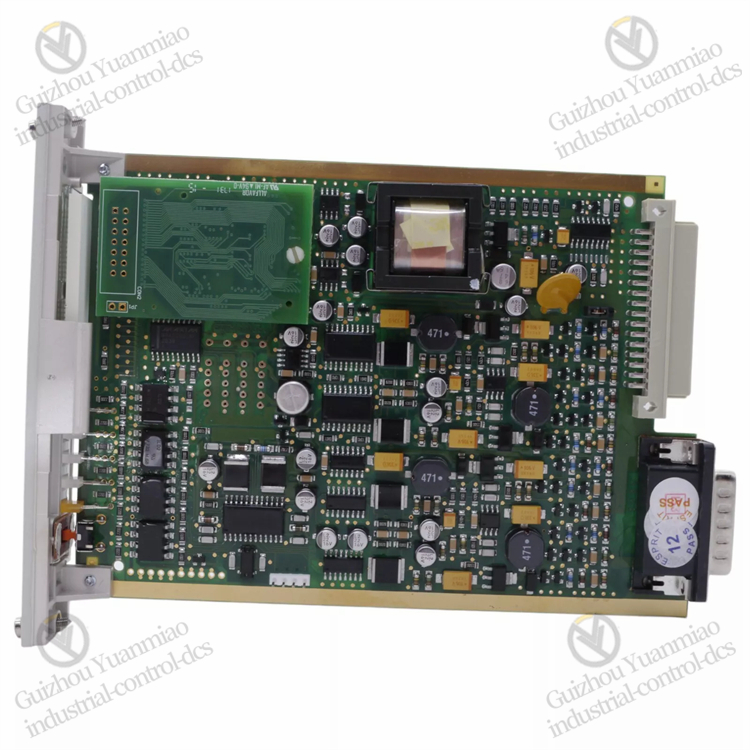

Honeywell 05704-A-0144 Four-channel Catalytic Input Control Card

• Multi-channel signal processing: It can receive and process signals from four catalytic combustion gas sensors simultaneously, enabling gas concentration monitoring at multiple detection points.
• Signal conversion: It can convert the signals output by catalytic combustion sensors into digital signals, facilitating subsequent analysis and processing. Meanwhile, it can realize the control of gas concentration through alarm, relay output and other methods.
• Flexible configuration: It supports users to customize input logic and functions, which can be set according to actual application needs to adapt to different gas detection scenarios.
• Fault diagnosis: It has the functions of sensor performance monitoring and fault detection, which can timely detect faults such as sensor open circuit and short circuit, ensuring the stable operation of the system.

• Voltage range: 18-32 VDC.
• Current range: 0.5-1.5 mA.
• Operating temperature range: -20°C to +60°C.
• Size: 100 mm x 125 mm x 25 mm, small in size, easy to install.
• Protection level: IP65, with good dustproof and waterproof capabilities, able to adapt to harsh environments.
• Output type: Supports relay output, analog output (optional), and multiple industrial communication protocols, facilitating connection and communication with other devices.

• Industrial process control: It can be used in factories, chemical plants and other places to monitor gas leakage and ensure production safety.
• Building automation: Suitable for office buildings, shopping malls, etc., for air quality monitoring, providing people with a safe and comfortable environment.
• Public place safety: It can be applied in subway stations, tunnels and other places for ventilation control, ensuring air quality and personal safety in public places.
• Other fields: It is also widely used in petrochemical, electric power, water treatment, manufacturing, catering and other industries, such as monitoring industrial gas emissions, safe operation of gas equipment, gas concentration in water treatment processes, etc.

• Multi-channel efficient control: Equipped with four channels, it can connect and control four catalytic combustion gas sensors at the same time, enabling gas concentration monitoring at multiple detection points. This improves the flexibility and monitoring efficiency of the control system, and reduces equipment space occupation and costs.
• High-precision signal processing: Adopting advanced catalytic combustion technology, the initial accuracy can reach ±1%, and the current can be adjusted in the range of 90 to 315mA through electronic 1mA steps. It can accurately convert the sensor output signal into digital signal, providing reliable data for gas concentration monitoring.
• Strong compatibility: It is compatible with other Honeywell or third-party modules and equipment, supports multiple communication interfaces such as RS232, RS485, CAN, etc., facilitating integration into various industrial control systems, and can work with equipment from different manufacturers to adapt to diversified industrial application scenarios.
• High reliability and stability: Using high-quality circuit design and materials, it has multiple safety protection functions such as overcurrent, overvoltage, undervoltage, etc., which can prevent short circuit and open circuit, effectively cope with various electrical interference and abnormal situations in industrial environments, ensure long-term stable operation, and reduce failure rate.
• Flexible programmability: Users can configure and customize according to specific application needs to realize custom control logic and functions. Parameters such as alarm thresholds and output modes can be flexibly set to meet the personalized requirements of different gas detection and control scenarios.
• Good environmental adaptability: With a protection level of IP67, it has excellent dustproof and waterproof capabilities, and a wide operating temperature range. It can work stably in environments from -20°C to +60°C, and can adapt to harsh industrial environments such as petrochemical sites and ships.
• Easy operation and maintenance: It provides easy-to-use configuration software and programming interfaces, facilitating users’ development and maintenance. Its modular design also makes the installation and replacement process simpler, helping to reduce maintenance costs and difficulties.
