Description

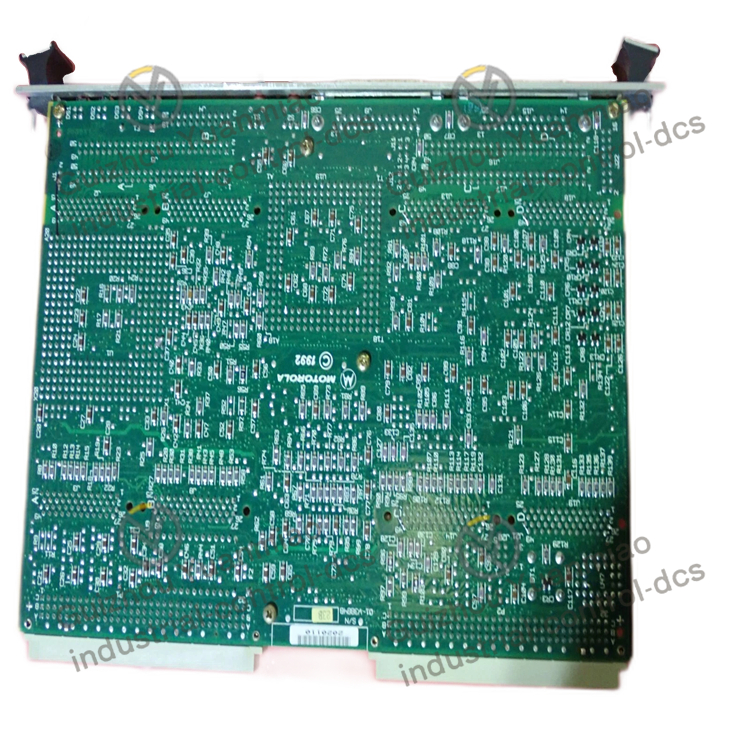

MOTOROLA  MVME162-043  single-board computer

Processor: Based on the MC68040 enhanced 32-bit microprocessor, with a main frequency of 25MHz, it is equipped with 8KB of cache, memory management unit (MMU), and floating-point operation unit (FPU), capable of efficiently handling complex tasks.
Memory and storage: Equipped with 8MB DRAM and 512KB SRAM with a spare battery, it can ensure that data is not lost after power failure.
Interface: It provides 4 serial communication ports, including EIA-232 and EIA-422/485 standards. At the same time, it has 4 IndustryPack interfaces, as well as SCSI bus interface and Ethernet transceiver interface, which can adapt to multiple industrial protocols and facilitate connection and communication with other devices.

Other: If it is the MVME162-043FIM card, it is a 120/240-volt 2-ampere isolated AC output module, providing 5 isolated output points, each of which has a separate common point. The output can control a wide range of inductive and incandescent loads. Each output point has a separately numbered LED display indicating the on/off status. The output fuse is 3 amperes and is equipped with an RC buffer protection. It can be installed in any I/O slot of the RX3i system.

Application
Industrial automation production line: MVME162-043 can be used as an output control module in industrial automation production lines. Its five isolated output points can be connected to actuators such as solenoid valves and contactors to control material transportation and parts processing on the production line. For example, in an automotive assembly production line, the movements of mechanical arms can be controlled to achieve precise assembly of components.
Power system control: In the power system, it can be used to control switchgear, transformer tap connectors, etc. Its AC output characteristics can be adapted to the AC control loop in the power system. By precisely controlling the output, it can achieve operations such as starting, stopping, and regulating power equipment, which is conducive to ensuring the stable operation of the power system and the reliable supply of electric energy.

Mechanical equipment control: For some large-scale mechanical equipment, such as injection molding machines and steel rolling mills, the MVME162-043 can output control signals according to the control requirements of the equipment and adjust the operating parameters of the equipment, such as speed and pressure. Its ability to control a wide range of inductive and incandescent loads can meet the control requirements of different types of loads in mechanical equipment.
Process control system: In the process control systems of industries such as chemical engineering and pharmaceuticals, MVME162-043 can be used to control equipment such as the stirring motor and material transfer pump of the reaction vessel, ensuring that the production process proceeds in accordance with the set process parameters. Meanwhile, the status is displayed and output through LED, facilitating the real-time monitoring of the equipment operation by the operators.
Building automation system: It can be applied in building automation systems to control the operation of elevators, the start and stop of air conditioning units, the on and off of lighting systems, etc. For instance, based on time or environmental conditions, the on and off of the lighting system can be controlled through MVME162-043 to achieve energy-saving purposes, or the lifting and lowering of elevators can be controlled according to floor signals, etc.
