Description

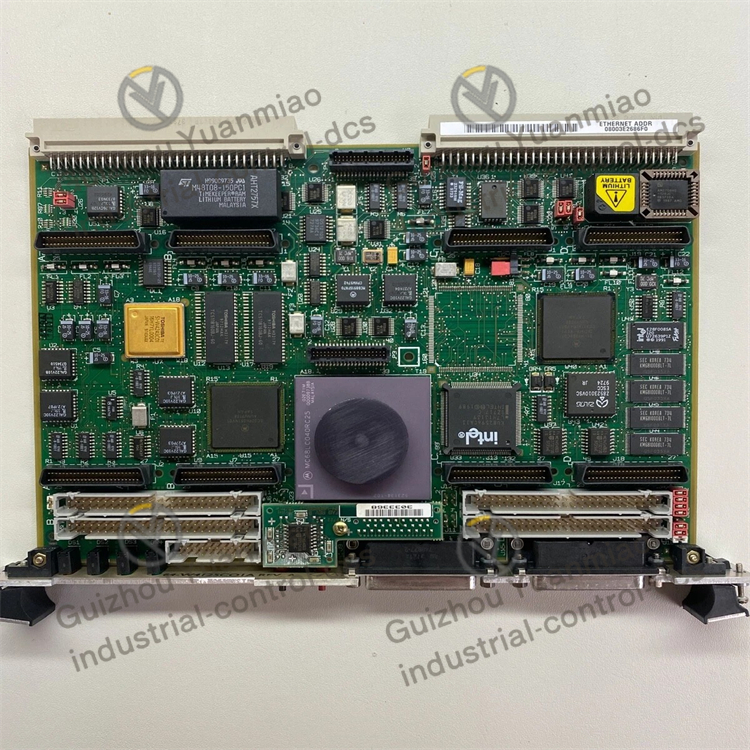

MOTOROLA  MVME162-413  series embedded single-board computer

Processor: It adopts a 25MHz MC68LC040 enhanced 32-bit microprocessor, equipped with an 8KB cache and an MMU (Memory Management Unit), which can meet the processing requirements of complex algorithms and real-time tasks.
Memory: It is usually equipped with 4MB of parity protection DRAM as standard, supports expansion, and comes with 512KB of SRAM with a spare battery to retain critical data in case of power failure.
Storage: Built-in 1MB Flash memory for storing on-board monitors, debuggers or user-installed firmware. Supports EPROM and Flash expansion to further increase storage capacity.

Interface:
Serial communication port: Two serial ports are provided, namely EIA-232-D and EIA-232-D/EIA-530.
IndustryPack interface: It has two IndustryPack ports, which can be conveniently connected to various IndustryPack modules to achieve functional expansions such as I/O control, analog and digital signal processing.
Other interfaces: Optional SCSI bus interface with 32-bit local bus burst DMA is available for connecting external storage devices or other SCSI devices. An optional LAN Ethernet transceiver interface with DMA is available for easy access to the Ethernet network.

Bus: Compatible with the VME bus standard, it supports A32/D64 master/slave interfaces, has strong data transmission capabilities, and can perform high-speed data interaction with other VME bus devices. It is equipped with a four-level requester, a seven-level interrupter and an interrupt handler, which can effectively handle various interrupt events and ensure the real-time responsiveness of the system.
Power supply and power consumption: Supports wide-range DC input of + 5V and ±12V, with a typical power consumption of 20W.
Environmental adaptability: The operating temperature range is generally -40 °C to + 85°C, the relative humidity is 5% to 95% (without condensation), the seismic performance complies with the MIL-STD-810 standard, and it can adapt to harsh industrial environments.
