Description

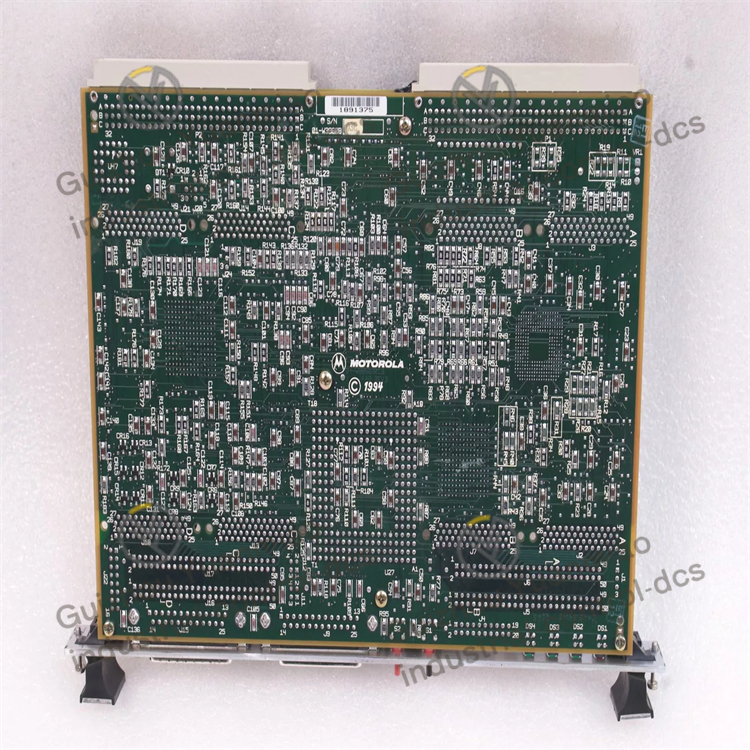

MOTOROLA  MVME162-523  high-performance single-board computer module

Processor: It adopts the MC68040 enhanced 32-bit microprocessor with a main frequency of 32MHz, equipped with 8KB of cache, MMU (Memory Management Unit) and FPU (Floating-point Operation Unit), capable of quickly handling complex algorithms and real-time tasks.
Memory: It is usually equipped with 8MB of DRAM, providing sufficient space and stability for data and program storage. It is also equipped with a 512KB SRAM with a spare battery, which can protect critical data in case of power failure.
Storage: Built-in 1MB flash memory, which can store on-board monitors, debuggers or user-installed firmware.

Communication interface:
Serial port: It has two serial ports, complies with standards such as EIA-232-D, supports multiple communication protocols, and can be used to connect serial port devices to achieve serial data transmission.
Ethernet interface: It is equipped with an optional LAN Ethernet transceiver interface with DMA, supporting high-speed network data transmission and facilitating network communication with other devices.
SCSI bus interface: An optional SCSI bus interface is available, featuring local bus burst DMA, which facilitates connection to external storage devices or other SCSI devices, enabling high-speed data storage and transmission.

Expansion capability:
VMEbus Interface: It is equipped with a VMEbus interface, supporting the connection from the local bus to VMEbus and from VMEbus to the local bus. Other VME devices can be expanded and connected through the VMEbus, facilitating the functional expansion and upgrade of the system.
IndustryPack Interface: It provides 4 IndustryPack interfaces, which can be connected to various IndustryPack modules to expand functions such as I/O control, analog and digital signal processing, and meet the needs of different application scenarios.
Environmental adaptability: The operating temperature range is -40 °C to + 85°C, the relative humidity is 5% to 95% (without condensation), and the seismic performance complies with the MIL-STD-810 standard. It can adapt to harsh industrial environments and ensure stable operation in various complex industrial sites.
