Description

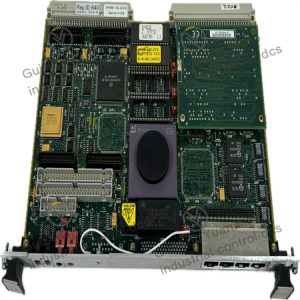

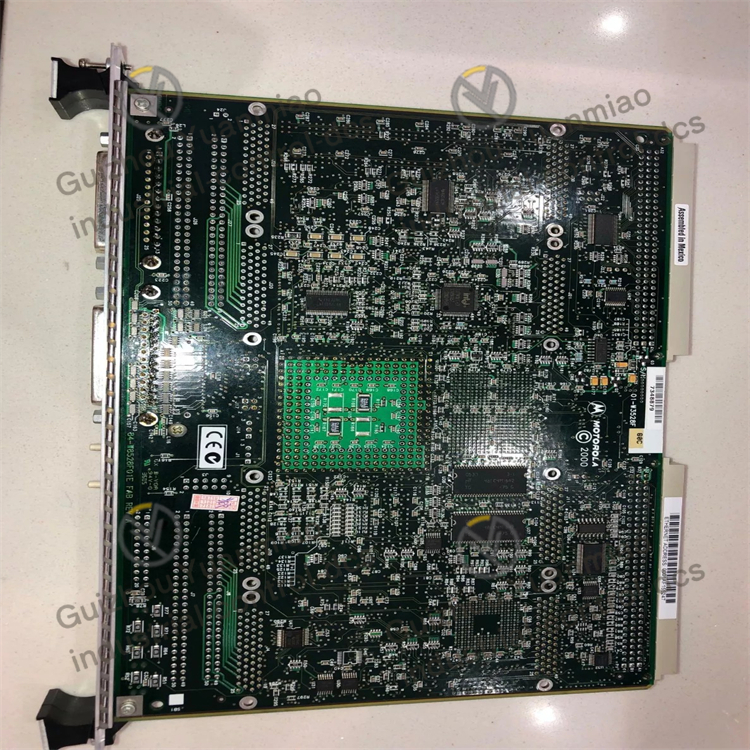

MOTOROLA  MVME162PA-344S  high-performance control module

Hardware configuration:
Processor: Equipped with an MC68040 32MHz CPU.
Memory: It has 16MB of memory.
Interface: It is equipped with 4 industrial standard plug-in slots (IP), 2 serial input/output interfaces (SIO), and also supports Ethernet (E-net) and Small Computer System Interface (SCSI), conforming to the VME bus standard.

Analog input characteristics:
Input range: Supports multiple analog input ranges, such as 4 to 20mA, 0 to 20mA, -10Vdc to 10Vdc, 0 to 10Vdc, etc.
Resolution: The default resolution is 12-bit binary (1/4096). By installing a 250-ohm resistor, the resolution for a 4 to 20mA input can be increased to approximately 11 bits.
Conversion speed: The conversion speed for each channel is 1 to 1.5 milliseconds, and the update rate is 2 milliseconds.
Input filter: Configurable input filter, frequency options include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, and 1000Hz.

Other features:
Working voltage: Usually 220V.
Operating temperature: -10℃ to 20℃ (14°F to 68°F).
Relative humidity: 1% – 32%, non-condensing.
