Description

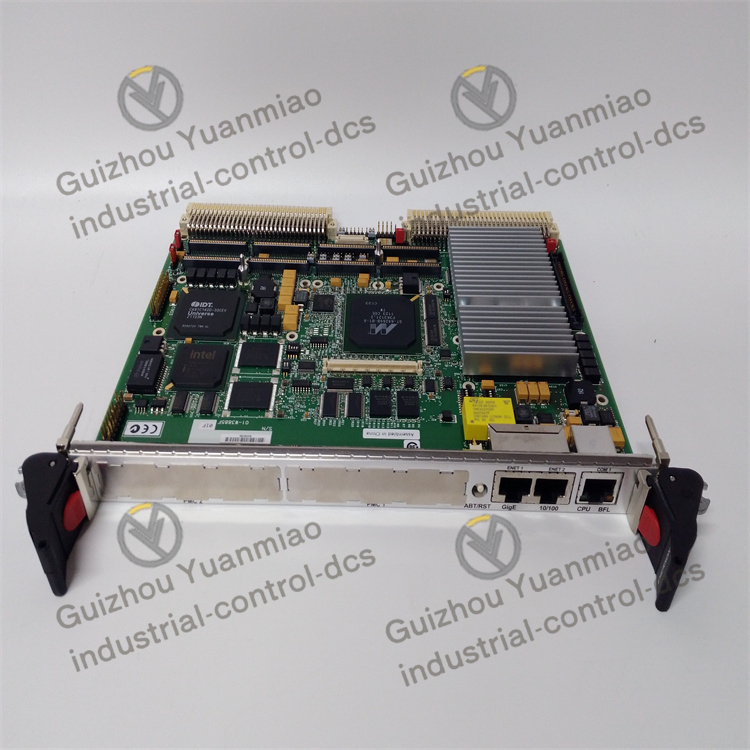

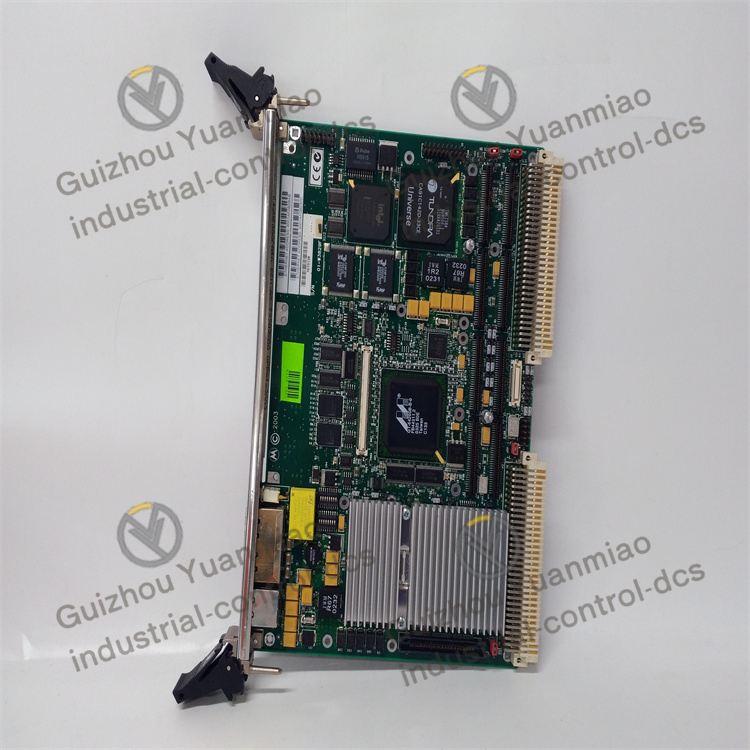

MOTOROLA  MVME5500  VMEbus single-board computer

Processor: It usually adopts the MPC7457 processor with a main frequency of 1GHz, equipped with 32KB/32KB level 1 cache, 512KB level 2 cache and 2MB level 3 cache. It also has the AltiVec coprocessor, which has strong computing power and is suitable for data-intensive applications.
Memory: Onboard 512MB PC133 ECC SDRAM, which can be expanded to 1GB through a memory sandwich card. The memory speed is 133MHz, which can meet the memory requirements of complex applications.

Storage: Equipped with 40MB on-board flash memory (8MB slot), it can be used to store applications and operating systems. Additionally, it supports CF card expansion for convenient data storage.
Interface: It is equipped with dual independent 64-bit PCI buses, with a bus speed of up to 66MHz. Each PCI bus has a PMC site and supports cards operating at 33 or 66MHz frequencies. It simultaneously provides one Gigabit Ethernet interface, one 10/100BaseTX Ethernet interface and two serial ports. It also supports a 64-bit PCI expansion mezzanine connector, allowing for the addition of up to four PMCS, offering strong expandability.

Operating temperature: The operating temperature range is from -40 °C to + 85° C. It is made of industrial-grade materials, which are shock-resistant, dust-proof and moisture-proof, and can adapt to harsh environments.
Power supply: Complies with the VMEbus standard, the power supply is + 5V DC, and the maximum power consumption is 20W.
Operating system support: Supports multiple real-time operating systems such as VxWorks, Linux, and Windows CE, which can meet the software operation requirements of different application scenarios.

Application fields: Mainly used in industrial automation, control systems, data acquisition and other fields, and also widely applied in national defense, aerospace, medical imaging, transportation and other fields.
