Description

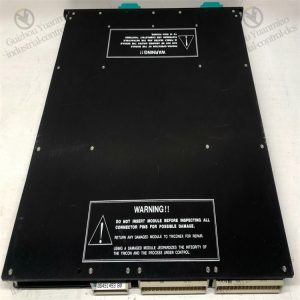

TRICONEX 2301 digital output module
TRICONEX 2301 is an excellent digital output module widely used in industrial control systems. The detailed introduction is as follows:
Basic Characteristics
- Series Affiliation: Belongs to the PLC-5 series, serving as a core component specially designed for industrial automation and process control.
- Design Structure: Adopts Triple Redundancy Design (TMR), which enables the system to continue operating normally even when a single module fails, significantly improving system reliability.
- Hot Swap Function: Supports hot swapping, facilitating maintenance and module replacement during system operation, and reducing downtime caused by maintenance.
Performance Parameters
- Input Voltage: 24V DC.
- Operating Temperature Range: -40°C to +70°C, adapting to harsh industrial environments.
- Communication Interfaces: Supports multiple communication interfaces such as Modbus TCP/IP, Profibus, and EtherNet/IP, enabling easy data interaction with other devices or systems.
- Dimensions: 100mm x 50mm x 20mm, with a compact size for convenient installation and layout.
- Protection Level: IP65, providing good dust and water resistance.
- Channel Quantity: Equipped with 8 digital input and output channels.
- Output Current: Maximum 2A per channel, offering sufficient driving capability.
- Resolution: 12 bits.
- Conversion Time: 5 ms, enabling fast signal conversion and output.
Safety Standards
Complies with the IEC 61508 functional safety standard, is suitable for SIL 3-level applications, and features high safety, making it applicable to critical safety scenarios with extremely high safety requirements.
Main Functions
- Data Collection and Processing: Collects signals from devices such as sensors, switches, or buttons, transmits these signals to safety controllers or DCS systems, and processes and analyzes relevant data.
- Safety Control: Monitors and controls key process parameters in real-time. When abnormal conditions occur, it promptly outputs control signals to achieve safety control of the production process and ensure production safety.
- Fault Tolerance: Due to its redundant design, it maintains normal system operation even when partial module failures occur, ensuring the continuity of industrial production.
Application Areas
- Oil and Gas Industry: Used in Emergency Shutdown Systems (ESD), Fire Detection Systems (FAS), Gas Detection Systems (GDS), etc., to ensure the safety of oil and gas production and transportation.
- Chemical Industry: Suitable for controlling the production process of hazardous chemicals, monitoring and controlling various parameters in chemical production to prevent accidents.
- Power Industry: Applied to safety control in power plants to ensure the stable operation of the power system.
- Other Fields: Plays an important role in monitoring and controlling automated production lines in manufacturing, as well as in scenarios such as railway signals and turbine protection systems in the transportation industry.
