Description

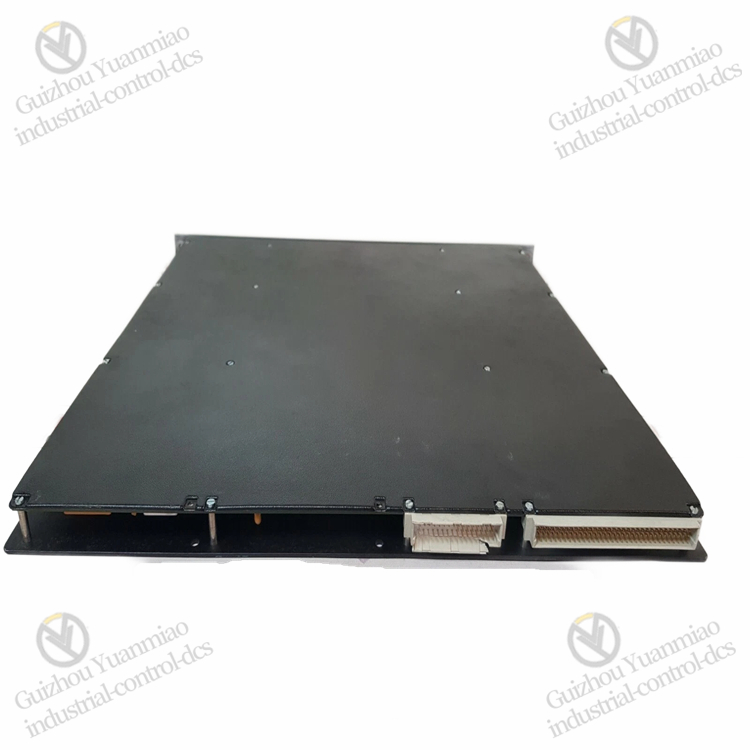

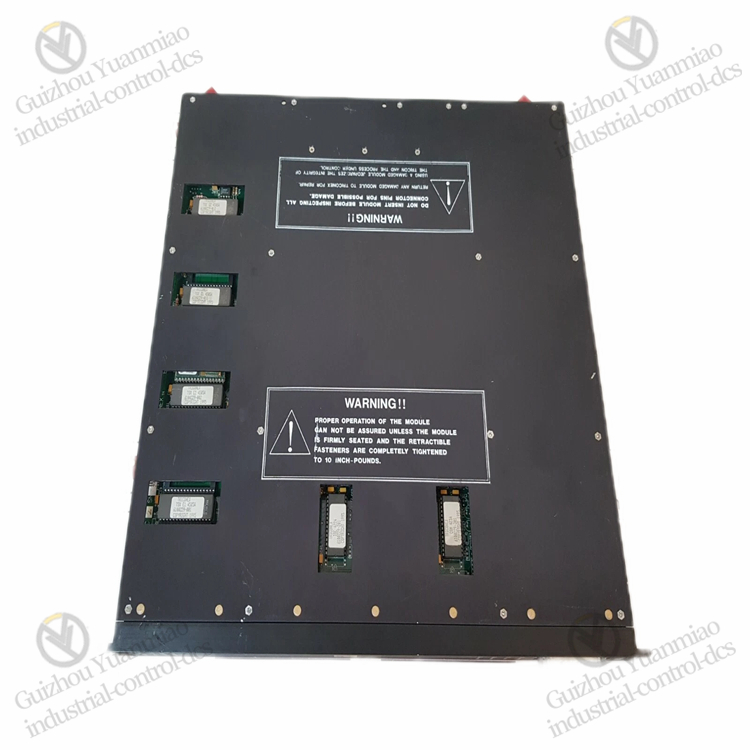

TRICONEX  3005  communication module

Detailed Description of Serial Communication Function

1. Specifications of Serial Communication Interface

• Physical Interface: Supports RS-232/RS-485 standards, allowing selection of different interface types as needed.
• Communication Rate: Typical baud rate range is 9600bps to 115200bps, configurable.
• Data Format: Supports 8 data bits, 1/2 stop bits, and configurable parity check (odd/even/none).
• Electrical Characteristics:
  • RS-232: Supports ±15kV ESD protection, transmission distance ≤15 meters.
  • RS-485: Differential signal transmission, supports multi-point communication, transmission distance ≤1200 meters.

2. Support for Communication Protocols

• Modbus RTU: Master/slave mode, supports standard function codes (e.g., 01, 02, 03, 04, 05, 06, 15, 16).
• Custom Protocols: Proprietary protocols can be implemented via programming to meet communication requirements of special devices.
• ASCII Protocol: Supports simple ASCII character protocols for basic data transmission.

3. Redundancy and Fault Tolerance Design

• Hot Standby Redundancy: Supports dual-serial-port redundancy configuration, automatically switching to the standby port when the primary port fails to ensure communication continuity.
• Error Detection: Built-in CRC check and timeout detection mechanisms ensure data transmission accuracy.
• Fault Safety: When communication is interrupted, the module can be configured to maintain the last valid value or trigger a safety action (e.g., emergency shutdown).

4. Typical Application Scenarios

• Connecting Legacy Devices: Communicates with old-model PLCs, instruments, RTUs, etc., via serial protocols.
• Remote Monitoring: Achieves remote data transmission through modems or industrial wireless modules.
• Data Acquisition: Collects real-time data from devices such as sensors and analyzers.
• System Integration: Serves as an intermediate layer to connect serial devices to Ethernet-based control systems.

5. Configuration and Programming

• Configuration Tools: Uses TRICONEX proprietary software (e.g., TriStation 1131) to configure serial parameters (baud rate, parity bit, etc.).
• Programming Support:
  • Writes communication logic in languages such as ladder diagrams and function block diagrams within the Tricon system.
  • Supports interrupt-driven communication processing to ensure real-time response.

6. Technical Parameters

7. Advantages

• High Reliability: TMR architecture ensures single-channel failures do not affect communication functions.
• Flexible Configuration: Supports multiple protocols and parameter settings to adapt to different device requirements.
• Safety Certification: Complies with SIL3 safety standards, suitable for safety-critical systems.

Notes

• In practical applications, select the appropriate interface type (RS-232/RS-485) based on communication distance and the number of devices.
• It is recommended to use RS-485 with optoelectronic isolation in strong electromagnetic interference environments.
• The serial communication rate must match the counterpart device to avoid communication errors.

Typical Application Scenarios

1. Connecting Traditional Industrial Devices

• Old-Model PLCs and RTUs: Communicates with early Siemens S7-200, Modicon, and other PLCs that do not support Ethernet via RS-232/485 interfaces, enabling modernization of legacy equipment.
• Intelligent Instruments: Collects data from temperature, pressure, flow, and other instruments (e.g., ABB, Rosemount field instruments), supporting Modbus RTU protocol.
• Human-Machine Interface (HMI): Connects to touch screens or operation panels, providing local operation interfaces for parameter setting and status monitoring.

2. Communication in Safety-Critical Systems

• Emergency Shutdown System (ESD): Connects to field valve actuators and fire alarm devices via redundant serial ports, ensuring rapid response (response time <10ms) in hazardous situations.
• Burner Management System (BMS): Communicates with burner controllers to monitor flame status and gas pressure in real time, supporting safety interlock control.
• Fire & Gas Detection System (FGS): Receives data from smoke/gas detectors, ensuring single-channel failures do not affect alarm output through a voting mechanism.

3. Remote Monitoring and Data Transmission

• SCADA System Integration: Acts as an RTU (Remote Terminal Unit) to upload field data to the central control room SCADA system via Modbus RTU.
• Wireless Communication Expansion: Connects to GPRS/4G DTUs or wireless modems to achieve remote monitoring of remote sites (e.g., oil fields, pipelines).
• Historical Data Recording: Transmits key process parameters to data recorders or DCS systems for trend analysis and accident traceability.

4. Protocol Conversion in Complex Systems

• Multi-Protocol Gateway: Serves as a protocol converter to convert Modbus RTU signals to Profibus DP or Ethernet/IP, enabling heterogeneous system integration.
• Device Networking: Integrates multiple serial devices (e.g., flowmeters, analyzers) into a unified network, simplifying system architecture.

5. High-Reliability Redundancy Configuration

• Dual-Serial-Port Hot Standby: In high-risk scenarios such as petrochemical industries, configures two serial channels (primary-backup mode), automatically switching when the primary channel fails to ensure communication continuity.
• Cross-Checking: Receives the same data through two independent serial ports for consistency comparison, enhancing data reliability.

6. Applications in Special Environments

• Explosion-Proof Zones: Connects to intrinsically safe field devices via isolated RS-485 interfaces in ATEX/IECEx-certified hazardous areas.
• Harsh Industrial Environments: Stably transmits critical control signals in metallurgical or mining scenarios with high temperatures (-40°C to +70°C) and strong vibrations.
