Description

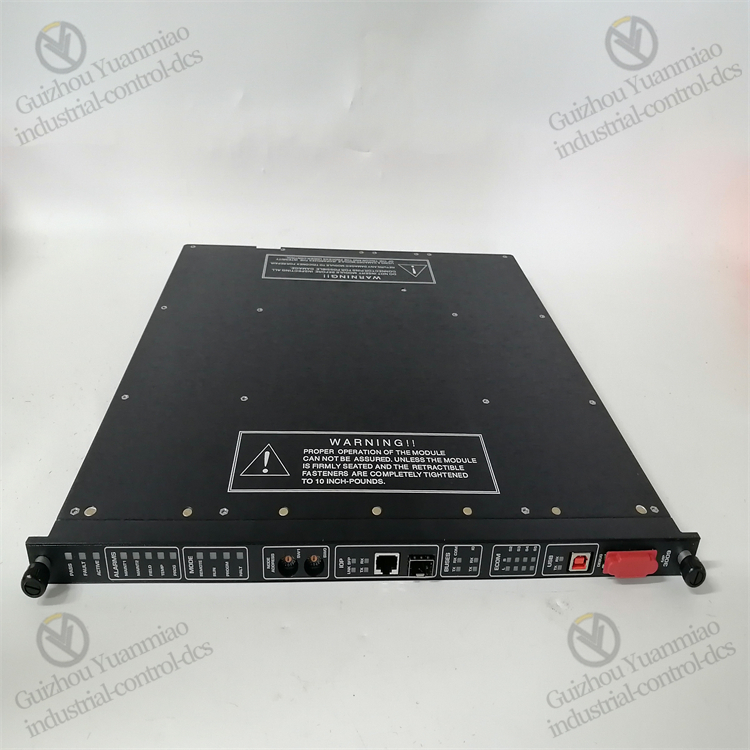

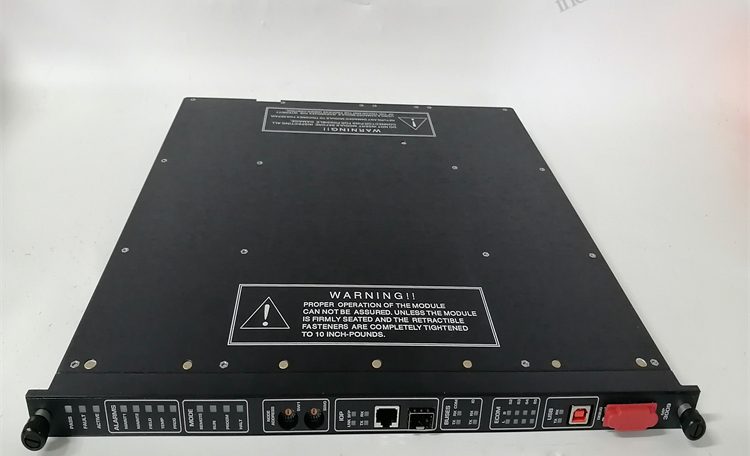

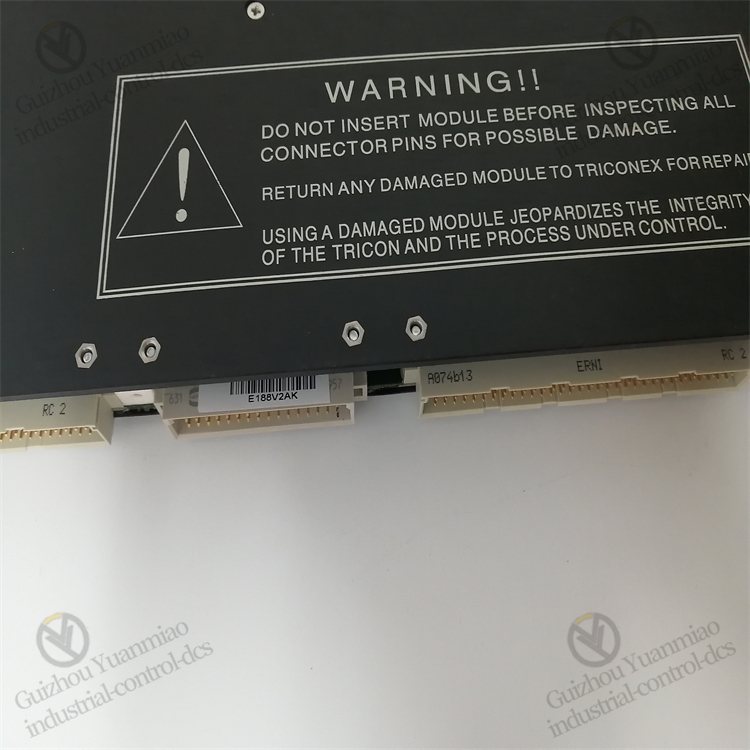

TRICONEX   3009X   High-Performance Safety Control System Module

Product Positioning

Key Features

• High Reliability and Redundancy: Adopts Triple Module Redundancy (TMR) technology with redundant configurations for both hardware and software. Each TMR loop contains three processor modules that work in parallel and monitor each other. Any single module failure does not affect overall system performance, ensuring continuous operation even when a component fails.
• Flexibility and Scalability: Supports multiple I/O modules and communication protocols for easy integration into existing systems. It also provides comprehensive documentation and technical support to facilitate system upgrades and problem-solving.

Hardware Characteristics

• Processor: Equipped with high-performance processors (e.g., ARM Cortex-M4 or PowerPC), enabling strong computing capabilities to quickly process control logic and data.
• Memory: Typically features large-capacity memory (2GB to 8GB RAM, 8GB to 256GB storage) to support complex control programs and massive data storage/processing.
• Communication Interfaces: Integrates various interfaces (serial port, Ethernet, USB, etc.) and supports protocols like Modbus TCP/IP and EtherCAT for seamless communication and data exchange with external devices.
• Operating Environment: With a wide temperature range (-40°C to 85°C), it adapts to harsh industrial environments.

Functional Features

• Rich Safety Functions: Supports safety interlocks, mutual interlocks, emergency shutdown, and other functions to prevent hazardous events, ensure personnel and equipment safety, and quickly cut off 危险源 (hazard sources) in emergencies.
• Data Processing and Acquisition: Collects on-site process data for real-time monitoring and analysis, providing a basis for system decision-making and control.
• Programmability: Enables users to implement different control logic and algorithms through programming, allowing flexible configuration for various application scenarios and requirements.

Main Application Fields

• Oil and Gas Industry: Used for safety control in oil fields, refineries, and natural gas processing plants. For example, it monitors wellhead pressure, temperature, and other parameters in real time, triggering safety interlocks to prevent blowouts during anomalies. It also ensures safe operation and rapid response to potential risks in refinery and gas plant processes.
• Chemical Industry: Critical for monitoring and controlling parameters in chemical production involving hazardous materials, preventing leaks, explosions, and other accidents to protect personnel and equipment.
• Power Industry: Applied in power plants and substations to control generator operations (monitoring voltage, current, speed, etc.) and take timely measures to avoid fault escalation. It also ensures stable and safe power transmission and distribution in substations.
• Metallurgy Industry: Ensures safety in high-temperature, high-pressure, and flammable metallurgical processes (e.g., monitoring blast furnaces and converters in steel plants to prevent accidents from equipment failures or misoperations, while aiding in environmental pollution prevention).
• Transportation Sector: Used in traffic signal control and emergency shutdown systems. It accurately switches traffic signals to maintain order and cuts off equipment power in emergencies for safety in scenarios like port cranes and airport baggage systems.
• Building Management Systems: Applies to building automation (centralized control of elevators, air conditioning, lighting, etc. for intelligent operation and enhanced safety/comfort) and energy management (monitoring and analyzing energy consumption for optimized distribution and energy conservation).
