Description

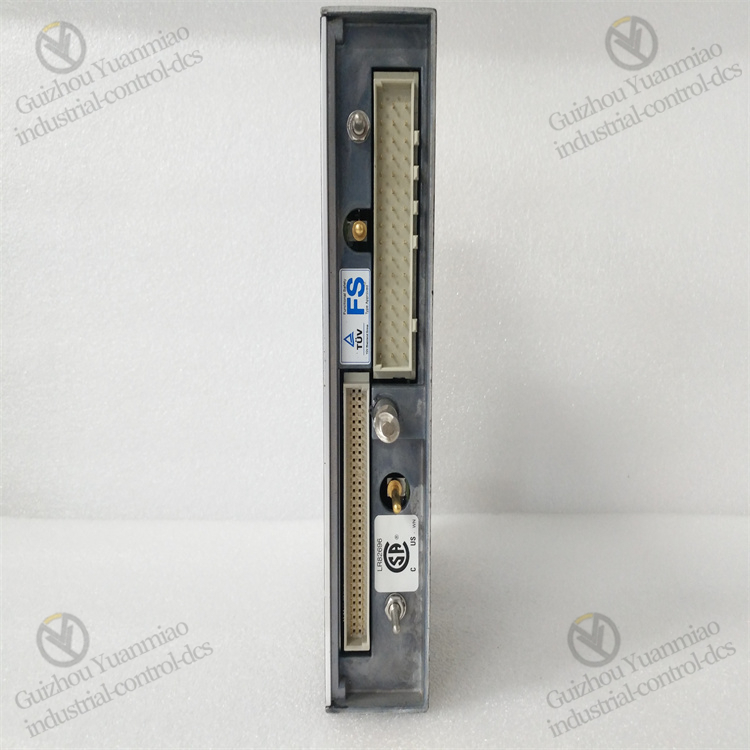

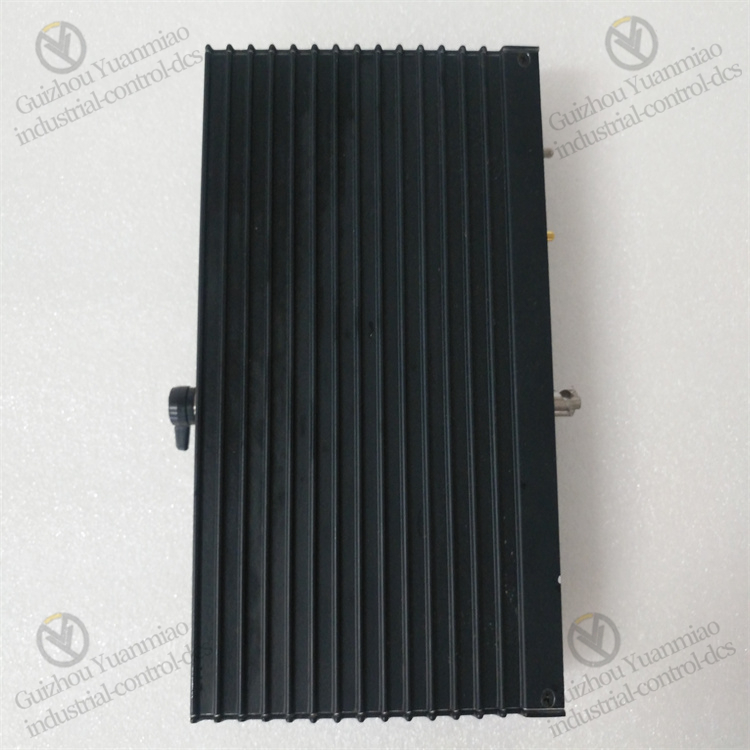

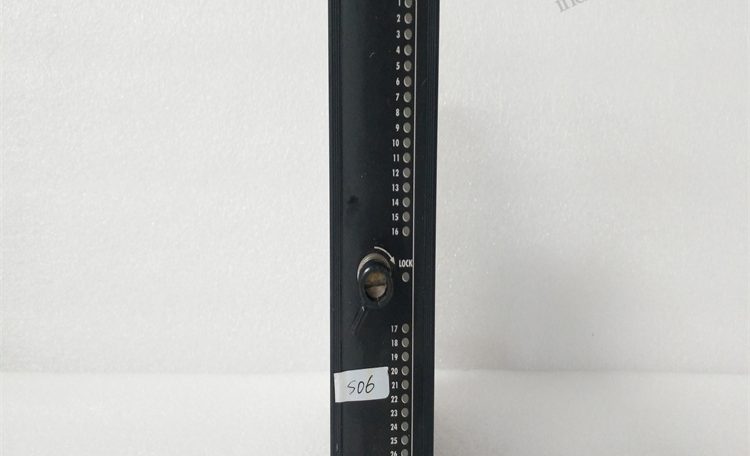

TRICONEX  3301  industrial control module

Key Features

• High Reliability: Adopts a triple redundancy architecture, ensuring the system can still operate normally in the event of a single-point failure, which greatly improves the reliability and stability of the system. Meanwhile, the redundant design and fault detection functions further guarantee the high availability of the system.
• Real-time Monitoring and Diagnosis: Equipped with fault detection, isolation, and safe failure functions, it can monitor the operating status of equipment in real time. Once abnormalities are found, it can promptly issue alarms and support real-time data recording and analysis, facilitating system maintenance and fault troubleshooting for users.
• Flexible Expandability: Supports integration with other Triconex controllers and communication modules, allowing flexible expansion of system functions and scale according to actual application requirements.
• Robust and Durable: With good anti-interference capability, it can adapt to the operating temperature range of -40°C to +85°C, and the protection level reaches IP65, enabling stable operation in harsh industrial environments.

Technical Parameters

• Input/Output Channels: Has 32 digital input/output channels, supporting various signal types such as switching quantities and pulse signals.
• Voltage Range: Input voltage is 24VDC or 110VAC, and output voltage is 24VDC.
• Response Time: Reaches the microsecond level, enabling rapid processing and response to field signals.
• Communication Interfaces: Supports communication interfaces such as Ethernet (Modbus TCP) and RS-232, facilitating data interaction and communication with other devices.
• Safety Certification: Complies with the IEC 61508 SIL 3 safety standard, meeting the requirements of most industrial scenarios with high safety requirements.

Main Functions

• Signal Acquisition and Processing: Can receive signals from field devices such as sensors and actuators, and convert them into signals recognizable by the Triconex system, providing a basis for subsequent control and analysis.
• Status Monitoring and Fault Diagnosis: Monitors the equipment status in real time. Once a fault is detected, it can promptly send alarm signals and also locate and analyze the fault to help maintenance personnel quickly eliminate the fault.
• Safety Interlock Control: Through the safety interlock function, it monitors and intervenes in the dangers in the industrial process. When abnormal conditions occur, it takes timely measures to protect the safety of personnel and equipment.
• Data Recording and Analysis: Can record the operating data of equipment. Through the analysis of these data, the production process can be optimized to improve production efficiency and safety.

Application Areas

• Petrochemical Industry: Used for safety control in crude oil processing, refining, and petrochemical product production, such as monitoring the temperature and pressure of reactors and regulating the flow of pipelines.
• Power Industry: Widely used in safety interlocks of power plants, substation protection, etc., such as monitoring the operating status of generators and protecting and controlling the electrical equipment of substations.
• Metallurgical Industry: Ensures the safe operation of blast furnaces, safety protection in the steel rolling process, etc., and real-time monitors parameters such as the temperature and pressure of blast furnaces to ensure the safe operation of steel rolling equipment.
• Pharmaceutical Industry: Used for safety control in the drug production process, monitoring the operating status of production equipment, parameters of the production environment, etc., to ensure the safety and stability of drug production.
• Other Industries: Also applied in transportation, nuclear industry, national defense, and other fields, providing safe and reliable control for the key equipment and important processes of these industries.
