Description

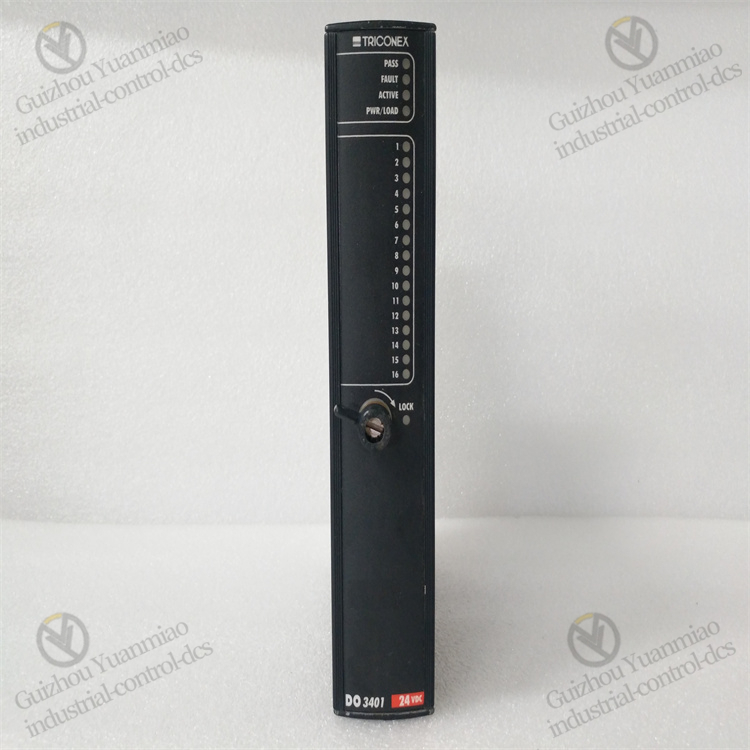

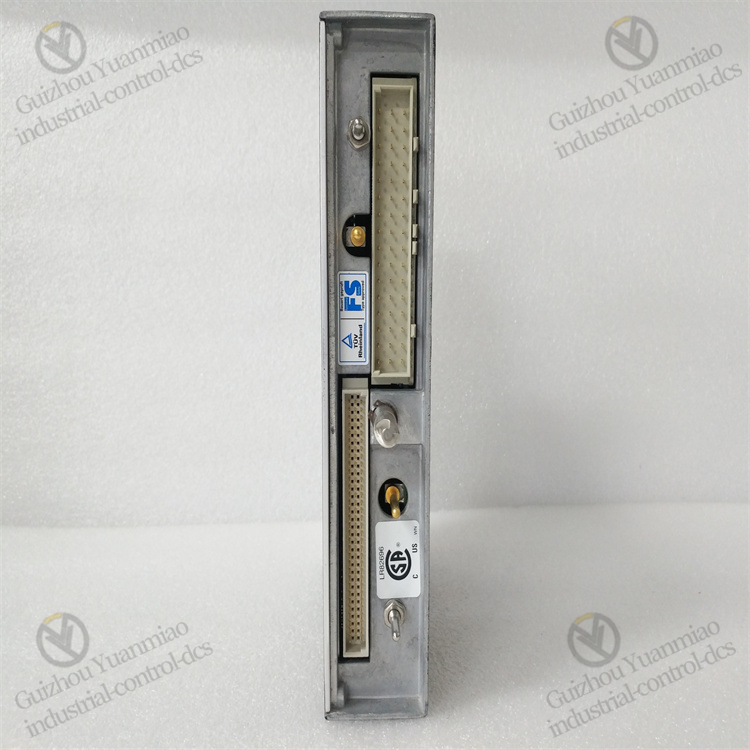

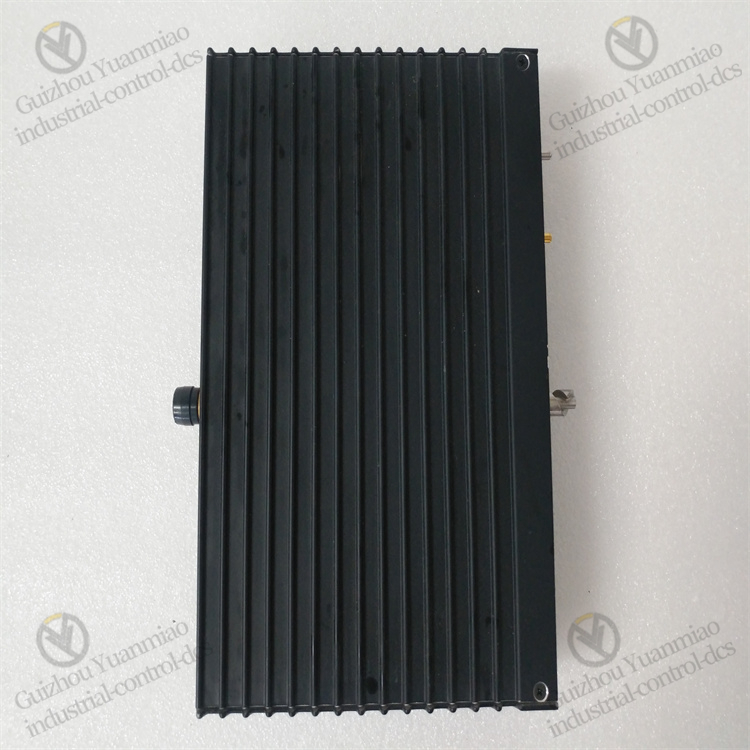

TRICONEX  3401  Digital output module

Key Features

• High Reliability: Adopts a redundant design and supports hot-swappable and online replacement functions, ensuring that the system does not interrupt operation when replacing modules. Even if one channel fails, other channels can still work normally, effectively reducing the risk of single-point failures.
• High Safety: Complies with the SIL 3 safety integrity level standard, follows relevant standards such as IEC 61508, and has functions such as fault detection, fault isolation, and fail-safe, which can be used for safety control in high-risk industrial environments.
• Multi-channel Output: Usually provides multiple output channels, with different configurations such as 16 or 32 independent output points, capable of controlling multiple external devices simultaneously to meet different control requirements.
• Flexible Communication: Supports multiple industrial communication protocols such as Modbus TCP/IP and RS485, facilitating integration with other systems to achieve data transmission and interaction.
• Fault Diagnosis: Has fault detection and diagnosis functions, capable of real-time monitoring of the module’s status. When a fault occurs, it can promptly provide alarm information, facilitating fault troubleshooting and handling by maintenance personnel.
• Fast Response: The response time is less than 1ms, enabling rapid execution of control instructions and timely response to the system’s control signals.

Technical Parameters

• Input Voltage: 24V DC.
• Operating Temperature Range: -40°C to +70°C.
• Output Type: Digital signal.
• Maximum Output Current: Generally 4.8A (switching mode) and 1.5A (degraded mode).
• Dimensions: Typically about 120mm x 80mm x 30mm.
• Protection Level: IP65, which can adapt to harsher industrial environments.

Application Areas

• Safety Instrumented System (SIS): Can be used to perform safety control tasks such as Emergency Shutdown (ESD) and fire alarm systems. When dangerous situations occur, it can promptly issue control signals to ensure the safety of personnel and equipment.
• Process Control System: In industries such as petroleum, natural gas, and chemicals, it is used to control devices such as valves, pumps, and motors, and precisely control parameters such as temperature, pressure, and flow in the production process to ensure the smooth operation of the production process.
• Power Industry: Can be applied to key process control and safety protection in power plants, as well as scenarios such as equipment status monitoring and protection in substations, ensuring the stable operation and reliable power supply of the power system.
• Manufacturing Industry: In automated production lines, it is used to monitor and control the operating status of various devices, realizing the automated operation and precise control of the production line, and improving production efficiency and product quality.
• Transportation Industry: Can be used for the control of railway signaling systems, etc., ensuring the safe and orderly operation of railway transportation.
