Description

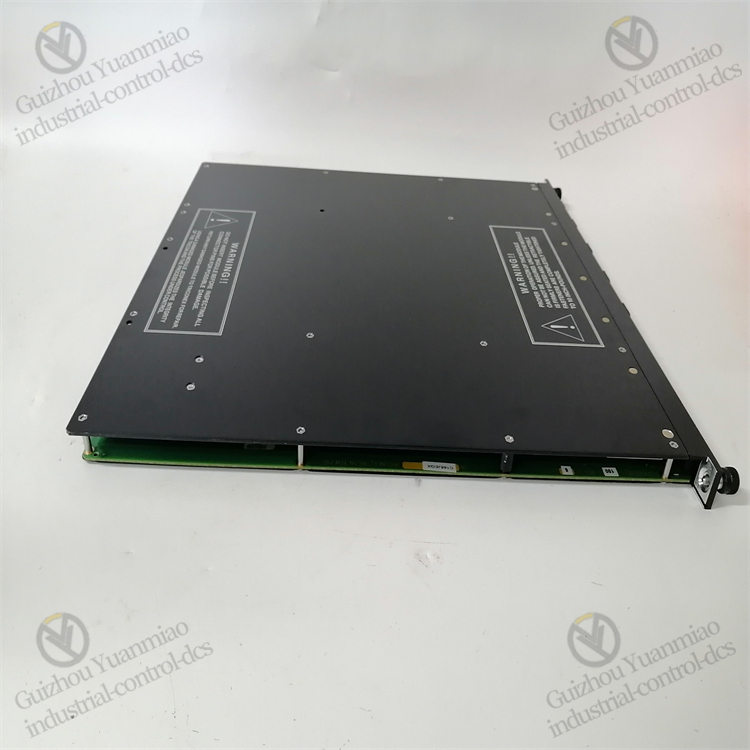

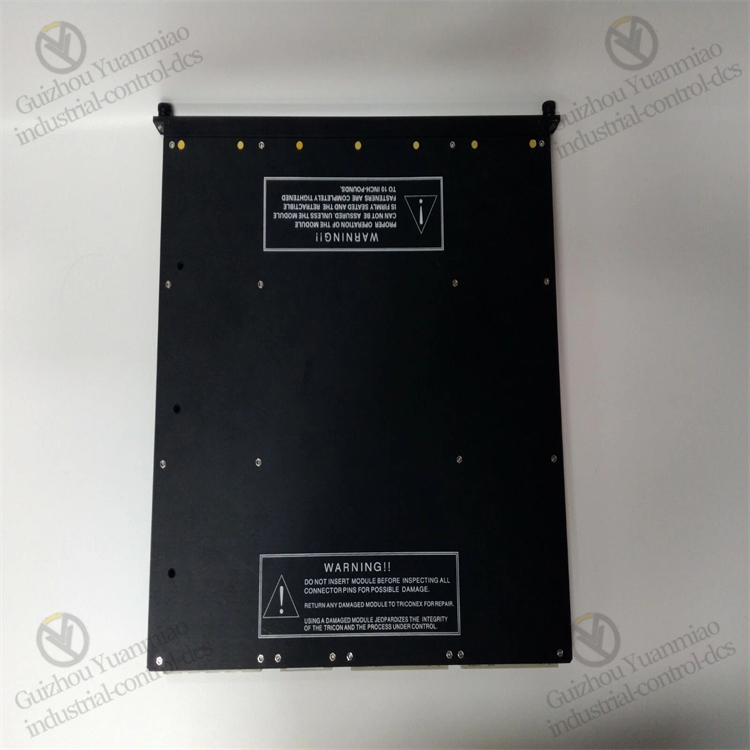

TRICONEX  3564  single-channel digital input module

Key Features

• High Reliability: Adopts a triple redundancy design, enabling the module to continue operating normally even if one or two channels fail, effectively reducing the risk of single-point failures.
• Electrical Isolation: Equipped with optoelectronic isolation design, the input and output circuits are electrically isolated from each other, which can effectively prevent electrical noise from interfering with signals and ensure the accuracy of signal transmission.
• Hot-swappable Function: Supports online replacement, allowing the module to be replaced without stopping the system operation, reducing downtime and improving system availability.
• Strong Compatibility: Has good compatibility with TRICONEX series products, enabling it to be well integrated into the TRICONEX system for easy system expansion and maintenance.
• Fault Detection: Features fault detection function, which can promptly identify problems occurring during the module’s operation and send alarm signals, facilitating troubleshooting and handling by maintenance personnel.
• Flexible Configuration: Supports multiple input types and signal voltages, allowing flexible configuration according to different application scenarios. Meanwhile, it also supports communication interfaces such as Ethernet, RS-232, and RS-485 for convenient communication with other devices.

Technical Parameters

• Input Voltage: 24VDC.
• Maximum Current: 2A.
• Operating Temperature Range: -40°C to 40°C.
• Sampling Period: 100 milliseconds.
• Number of Channels: Single channel.
• Input Signal Type: Digital signal.
• Interface: Triconex bus interface.
• Certifications: Complies with IEC 61508 and SIL 3 standards.

Application Areas

• Industrial Automation: Used for receiving and converting digital signals from field devices, ensuring accurate transmission of signals to the control system to achieve automated control of the production process.
• Safety Instrumented System (SIS): Can be used for monitoring and protecting hazardous processes, such as monitoring the status of safety switches or limit switches. In chemical production, it can timely detect the status of emergency stop buttons to ensure the safety of factories and technological processes.
• Process Control: Used to connect devices such as sensors and switches to achieve real-time monitoring of process variables. For example, in the power industry, it can monitor the switch status of power equipment to ensure the safe operation of the power grid.
