Description

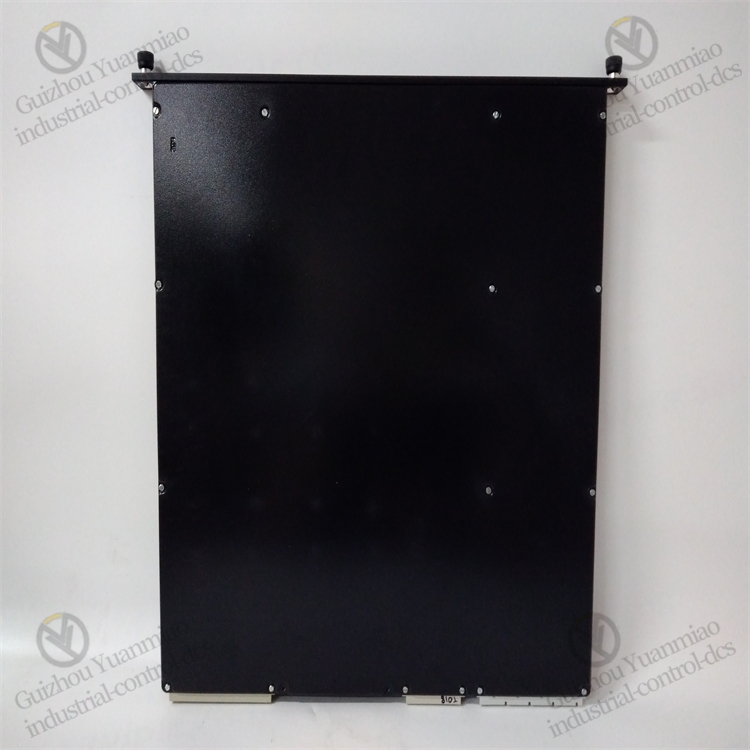

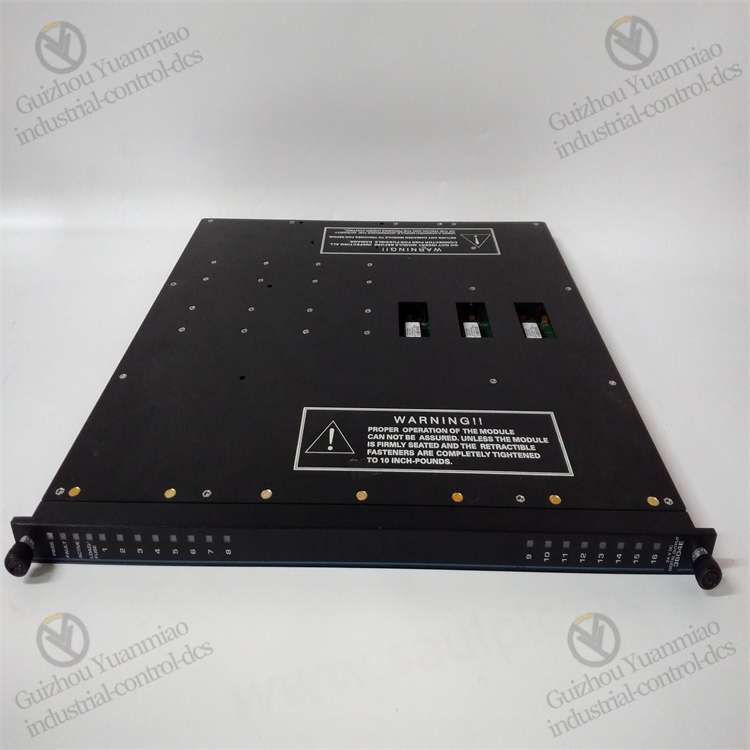

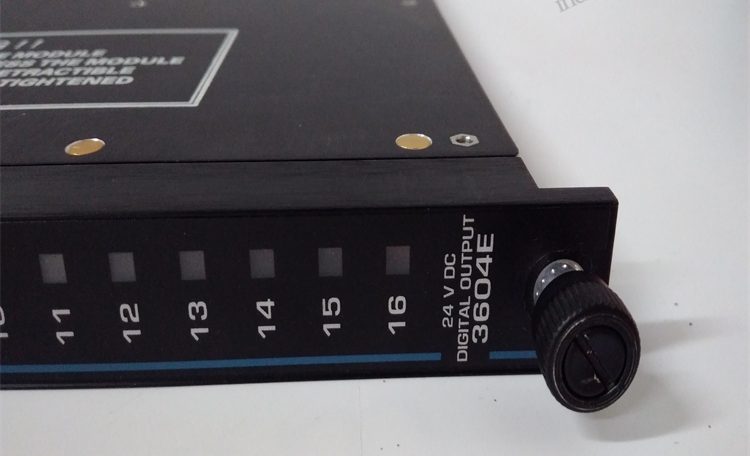

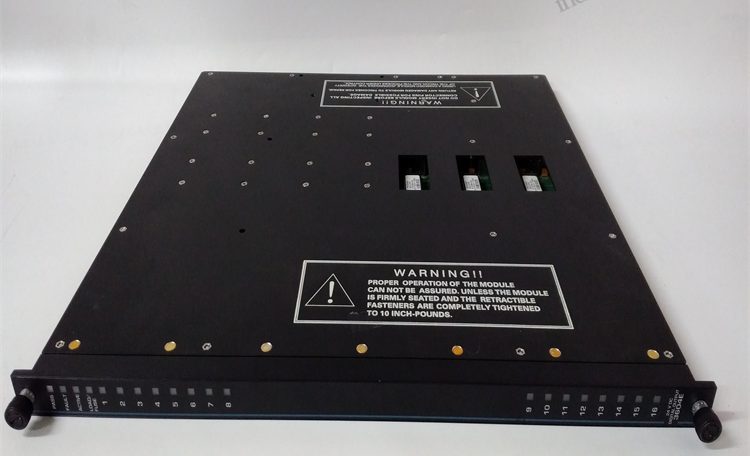

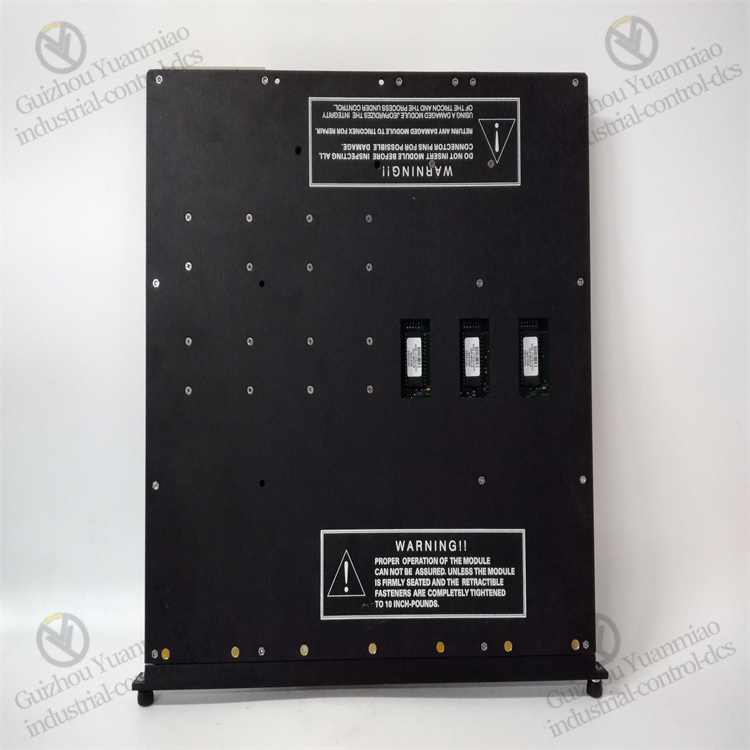

TRICONEX  3604E  Digital Output Module

Main Features:

• High Reliability: Adopts Triple Modular Redundancy (TMR) technology, ensuring the system can still operate normally when a single module fails, which greatly enhances system stability and reliability. Meanwhile, it complies with IEC 61508 SIL 2 and SIL 3 safety standards, meeting the requirements of extremely high-safety scenarios.
• High Performance: Supports fast response with a response time of less than 10μs, enabling real-time control and suitable for critical process control.
• Easy to Use: Features a modular design for convenient installation. It also has a self-diagnosis function to promptly detect its own issues, facilitating maintenance.

Technical Parameters:

• Power Supply Voltage: 24V DC.
• Number of Output Channels: 16 digital output channels.
• Output Types: Includes two types: relay output or transistor output.
• Operating Temperature Range: -40°C to 70°C; storage temperature range: -40°C to 85°C, adaptable to harsh environments.
• Protection Level: Reaches IP65, with good dust and water resistance.
• Communication Interfaces: Supports protocols such as Modbus, DNP3, and OPC, enabling convenient communication and data interaction with other devices.
• Dimensions: 200mm x 150mm x 100mm.
• Output Current: 2A per point; maximum load current is 10A surge and 2A continuous per point.

Application Fields:

• Oil and Gas Industry: Can be used for process control and safety interlocks to ensure the safety and stability of production processes.
• Chemical Industry: Can be used for precise control of parameters such as temperature and pressure to ensure the smooth progress of chemical production.
• Power Industry: Commonly used in turbine control, fuel management, etc., to effectively control key equipment in power plants.
• Metallurgical Industry: Provides reliable digital outputs for automation control systems in metallurgical production to ensure efficient production operations.
• Other Fields: Widely applied in railways, transportation, manufacturing, and other fields, meeting the equipment control needs of different industries.
