Description

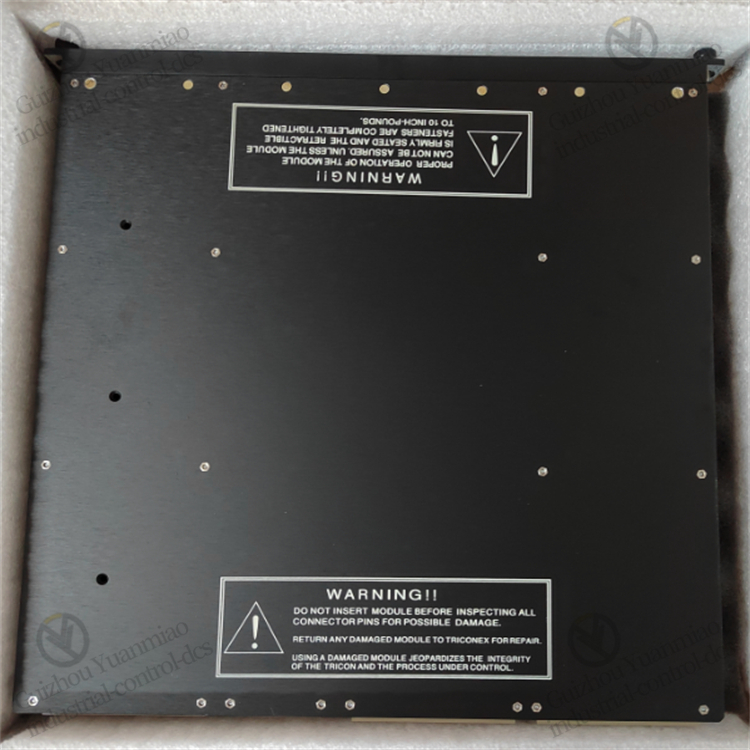

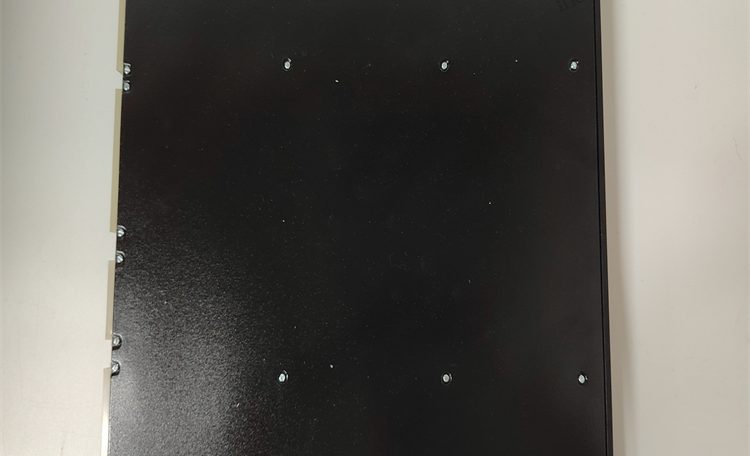

TRICONEX  3625C1  Digital Output Module

Main Features

• High Reliability: Adopts Triple Modular Redundancy (TMR) architecture, ensuring the system continues to operate normally even if a single module fails, which significantly enhances system stability and reliability. It uses high-quality components and undergoes strict testing to guarantee long-term stable operation.
• High Safety: Designed in compliance with IEC 61508 standards, suitable for high-safety applications requiring SIL 3 functional safety, providing high-level safety protection for the system.
• Self-Diagnosis Function: Equipped with strong self-diagnosis capability to promptly detect and report internal faults, facilitating troubleshooting and maintenance.
• Easy Installation and Maintenance: Features a modular design with a compact structure, enabling convenient installation, disassembly, and simple maintenance.

Technical Parameters

• Power Supply Voltage: 24VDC.
• Number of Output Channels: 32.
• Output Signal: 24VDC.
• Current Capacity: 1.7A per channel.
• Operating Temperature Range: -40°C to 70°C.
• Protection Level: IP20.
• Dimensions: 220mm x 100mm x 40mm.
• Weight: 0.5kg.
• Communication Speed: Supports high-speed bus communication at up to 2 Mbps.

Main Functions

• Signal Output: Converts digital signals into control signals to drive actuators such as motors and valves, enabling control of industrial equipment.
• Safety Interlock: Integrates digital signal output with safety control functions to achieve safety interlocks in production processes, ensuring timely actions to protect production safety in case of anomalies.
• Emergency Shutdown: Quickly cuts off power or stops equipment operation in emergencies to prevent accidents from escalating.

Application Fields

• Petrochemical Industry: Controls valves, pumps, and other equipment to ensure stable and safe petrochemical production processes.
• Power Industry: Commonly used for controlling circuit breakers, motors, and other equipment in power systems.
• Metallurgical Industry: Applied in scenarios such as blast furnace safety interlocks and steel rolling process safety monitoring, supporting automated control and safe operation in metallurgical production.
• Other Industries: Widely used in pharmaceuticals, papermaking, printing, textile dyeing, electronics manufacturing, and other industries to meet equipment control and safety protection needs across different sectors.
