Description

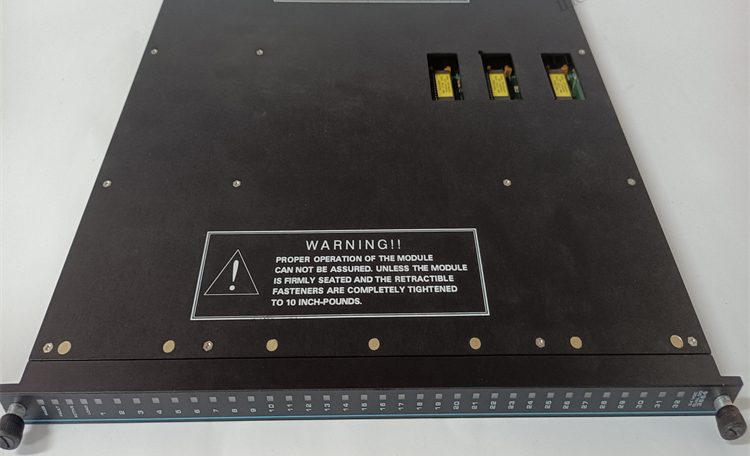

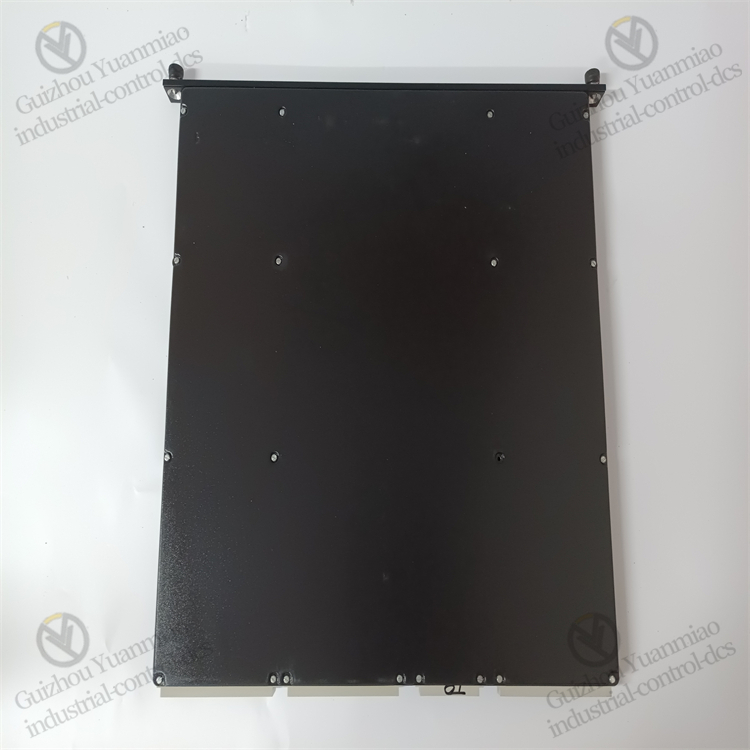

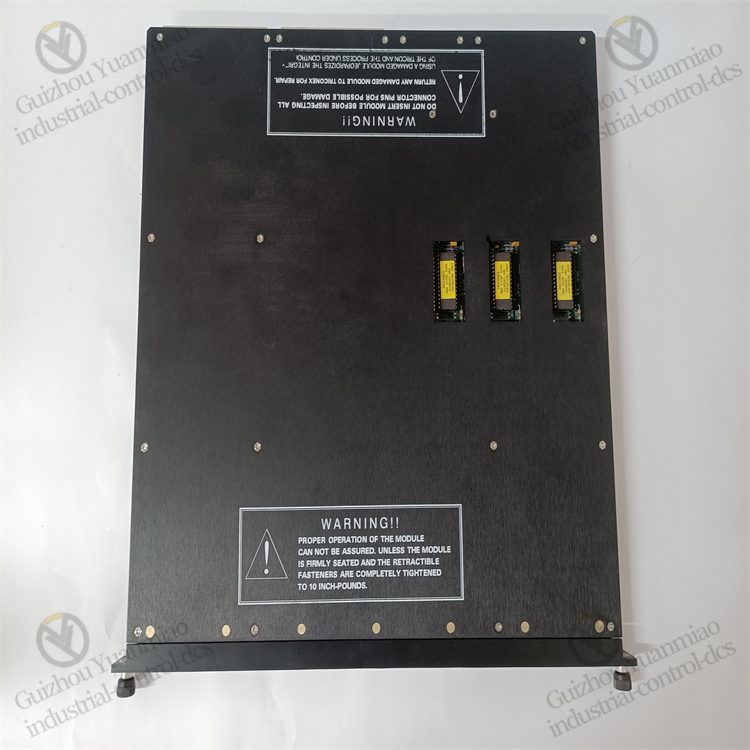

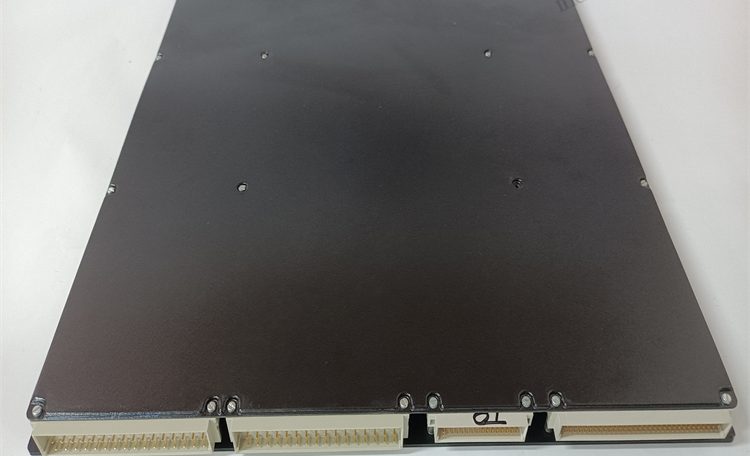

TRICONEX  3664  high-performance analog input module

Module Positioning and Functions

Core Features and Technical Advantages

1. Triple Modular Redundancy (TMR) and High Safety Level

• Three-channel independent sampling and voting mechanism: Each channel independently collects signals and performs data voting, enabling correct output even when single or dual channels fail, complying with the SIL 3 (IEC 61508) safety integrity level.
• Hardware-level fault diagnosis: Built-in self-diagnosis function real-time monitors anomalies such as channel offset, short circuit, and open circuit, with a diagnosis coverage rate of over 99%, reducing the risk of misoperation.

2. Multi-type Signal Collection and High-precision Conversion

• Supported signal types:
  • Current signals: 4-20mA, 0-20mA (with HART communication);
  • Voltage signals: 0-5V, 1-5V, 0-10V;
  • Temperature signals: Thermocouples (types K, J, T, E, R, S, etc.), RTDs (Pt100, Ni1000, etc.);
  • Others: Strain gauges, frequency signals (optional via configuration).

• High-precision conversion: 16-bit ADC conversion accuracy with a sampling rate of 100Hz/channel ensures real-time and accurate signal collection.

3. Electrical Isolation and Anti-interference Design

• Full-channel optoelectronic isolation: Electrical isolation (isolation voltage ≥500V) is adopted between each analog channel and the system power supply/communication circuit, effectively suppressing electromagnetic interference (EMI) and common-mode voltage effects.
• Harsh environment resistance: Wide-temperature design (-40°C to +70°C) meets the requirements of high-temperature and high-vibration environments in petrochemical, metallurgical, etc., complying with industrial EMC standards.

4. Flexible Configuration and Online Maintenance

• Hot-swappable function: Supports live module replacement, enabling maintenance or channel replacement without shutdown, reducing industrial production downtime.
• Programmable parameters: Customize signal types, range, filter coefficients, alarm thresholds, etc., via Triconex Tools software to adapt to different field instruments.

Technical Parameters

Application Scenarios

1. Real-time Monitoring of Process Parameters

• Petrochemical industry: Collects reactor temperature, pipeline pressure, and flow transmitter signals to provide data support for the Emergency Shutdown System (ESD);
• Power industry: Monitors generator winding temperature and grid voltage/current, accessing the Fire & Gas System (FGS) for fault early warning.

2. Key Equipment Condition Monitoring

• Nuclear power and energy: Collects signals such as steam generator level and pressure vessel pressure, ensuring data reliability through triple redundant transmission;
• Metallurgy and manufacturing: Monitors blast furnace temperature and rolling mill load current, 联动 (interlocking) with SIS logic processors for equipment protection.

3. Complex System Integration

• As an interface between SIS and Distributed Control Systems (DCS), it synchronizes field analog data to the host monitoring system (such as SCADA) and supports compatible docking with third-party devices (such as Siemens and ABB instruments).

Typical Application Cases

• Offshore oil and gas platforms: The 3664 module collects analog signals such as wellhead pressure and crude oil water cut, transmits them to the Triconex controller via triple redundant channels, and triggers the Emergency Shutdown (ESD) logic when anomalies are detected to ensure platform safety.
• Chemical polymerization reactors: Real-time monitors parameters such as reaction temperature, pressure, and agitation speed, and reads diagnostic information from smart transmitters via HART communication to achieve precise process control and safety interlocking.

Conclusion

• Safety: SIL 3 certification and hardware-level fault diagnosis meet reliability requirements for high-risk scenarios;
• Flexibility: Supports multi-type signal input and programmable configuration, adapting to instrument interfaces in complex industrial fields;
• Usability: Hot-swapping and intelligent diagnosis functions reduce maintenance costs and enhance system availability.
