Description

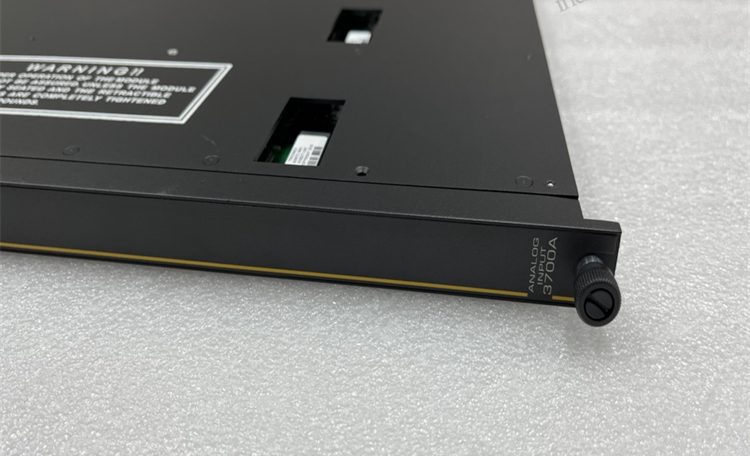

TRICONEX 3700 Analog Input module
TRICONEX 3700 is a high-performance analog input module specially designed for TRICONEX Safety Instrumented Systems (SIS). It is used to convert analog signals from field sensors (such as temperature, pressure, flow, etc.) into digital signals to achieve precise monitoring and safety protection of industrial processes. The detailed introduction is as follows:
Core Features
Triple Redundancy Design
- Adopts TMR (Triple Module Redundancy) architecture, where each input signal is processed by three independent channels, ensuring data reliability through a “2 out of 3” voting mechanism.
- Single-channel failure does not affect system operation, meeting the SIL 3 safety integrity level requirements.
High-Precision Signal Acquisition
- Supports multiple analog signal types: 4-20mA current, 0-10V voltage, RTD (Resistance Temperature Detector), TC (Thermocouple), etc.
- 16-bit or higher resolution ADC with a measurement accuracy of ±0.1%, ensuring accurate capture of minor signal changes.
Complete Fault Detection and Diagnosis
- Built-in self-diagnosis function to monitor the module’s hardware status, signal quality, and communication links in real time.
- Supports open/short circuit detection and over-range alarm, with a fault response time < 100ms.
Modular and Hot-Swap Design
- Supports online replacement without shutdown for maintenance, reducing the risk of production interruptions.
- Compact mechanical structure allows dense installation in standard racks, saving control cabinet space.
Strong Anti-Interference Capability
- Optoelectronic isolation: Isolation voltage ≥1500VDC between input and system to prevent electrical interference.
- Electromagnetic compatibility (EMC) complies with industrial standards, adapting to harsh industrial environments.
Technical Parameters
| Parameter | Description |
|---|---|
| Input Channels | Typically 8 or 16 channels (depending on the specific model) |
| Signal Types | 4-20mA, 0-10V, RTD (PT100/PT1000), TC (J/K/T types) |
| Sampling Rate | Typical value 50ms/channel (configurable) |
| Accuracy | ±0.1% FS (Full Scale) |
| Isolation Voltage | 1500VDC (between input and system) |
| Operating Temperature | -40°C to +70°C (industrial grade) |
| Protection Level | IP20 (needs to be installed in a control cabinet) |
| Communication Interface | TRICONEX internal bus (such as Tribus) |
| Power Consumption | Typical value 5W/module |
Application Scenarios
- Oil and Gas: Monitoring key parameters such as pipeline pressure, storage tank level, and temperature.
- Chemical Processes: Collecting reactor temperature, flow, and pH value to achieve closed-loop control.
- Power Industry: Monitoring generator winding temperature, steam turbine vibration, and cooling water flow.
- Nuclear Safety: As the front-end of redundant safety instrumented systems, collecting radiation dose, coolant level, etc.
- Pharmaceutical and Food: Precisely measuring fermenter temperature and pressure to ensure process compliance.
Typical Models
- 3700A: Basic analog input module supporting 8-channel 4-20mA input.
- 3700B: Enhanced type supporting mixed signal input (current/voltage/RTD), 16 channels.
- 3700E: Explosion-proof type suitable for Zone 1/2 hazardous areas, requiring use with safety barriers.
Advantage Comparison
Compared with similar products, the core advantages of TRICONEX 3700 lie in:
- Safety Certification: Certified by IEC 61508 SIL 3, ISA 84.00.01, etc., suitable for applications with the highest safety levels.
- Fault Tolerance: TMR architecture provides triple redundancy, significantly reducing the risk of single-point failures.
- Industry Experience: Applied in over 20,000 safety systems globally, verified through long-term practice.
Notes
- Ensure good grounding of the module during installation to avoid electrostatic interference.
- Corresponding jumpers or software parameters need to be configured for different signal types (such as current and voltage).
- Regularly calibrate the module through TriStation software to ensure measurement accuracy.
