Description

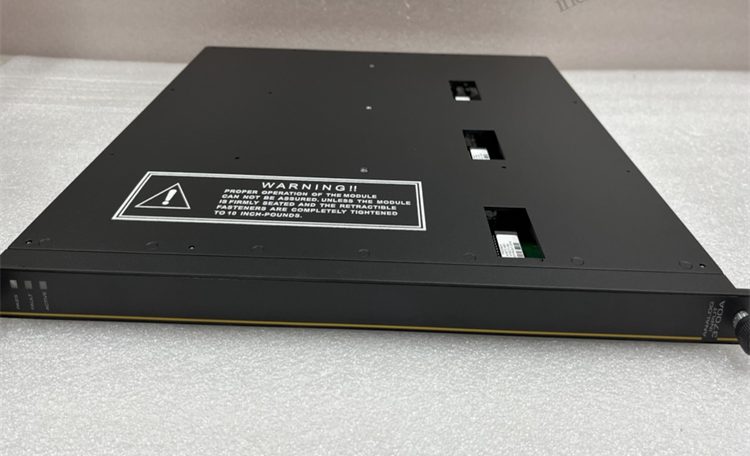

TRICONEX  3700A  Analog Input Module

Main Features

• High Reliability: Adopts Triple Redundancy Design (TMR), enabling the system to continue operating via redundant components when a single module fails, significantly enhancing reliability and stability. It also features self-diagnosis to promptly detect faults and trigger alarms.
• High Safety: Complies with SIL 3 safety integrity level and international standards like IEC 61508, suitable for extremely safety-critical scenarios to ensure reliable safety protection for industrial processes.
• High-Speed Data Transmission: Supports high-speed data transmission for real-time response, converting collected analog signals to digital signals and transmitting them to the system for processing to meet industrial site timeliness requirements.
• Modular Design: Features modularity for easy expansion and maintenance, supports hot-swapping to replace modules without system shutdown, reducing maintenance costs and complexity.

Technical Parameters

• Power Supply Voltage: Typically 24V DC.
• Communication Protocols: Supports Modbus TCP/IP and other protocols for seamless communication and data interaction with other devices/systems.
• Operating Temperature Range: -40°C to 85°C, adaptable to harsh industrial temperature variations.
• Dimensions: Approximately 150mm×100mm×50mm, compact design with small footprint for easy installation.
• Number of Input Channels: Supports up to 32 analog inputs for simultaneous multi-signal acquisition.
• Input Signal Range: Common ranges include 0-5V DC, with +6% overrange measurement capability for adaptive signal variation.
• Resolution: 16-bit for high measurement accuracy.
• Input Update Rate: Typically 55ms for fast input data updating.
• Response Time: <200μs for quick reaction to signal changes.

Application Fields

• Oil & Gas Industry: Monitors parameters in oil/gas production (e.g., wellhead pressure, temperature) and pipeline flow/pressure to ensure safe and stable production/transportation.
• Chemical Industry: Monitors material temperature, pressure, flow in chemical processing, and controls storage/transportation of hazardous chemicals for safe production.
• Power Industry: Monitors generator operation parameters (voltage, current, temperature) in power plants and supports grid monitoring for stable power system operation.
• Pharmaceutical Industry: Controls and monitors key parameters in drug production to ensure quality and safety. Also widely used in metallurgy, automotive manufacturing, food processing, and other industrial fields.

Core Working Principle Analysis

1. Signal Acquisition & Preprocessing
   • Input Signal Types: Supports multiple analog signals, including:
     • 4-20mA current signals (industrial standard, strong anti-interference);
     • 0-10V voltage signals;
     • Temperature sensor signals (TC, RTD) requiring adapter terminals.
   • Signal Conditioning: Input signals first pass through hardware filters to eliminate high-frequency noise, then undergo amplification/attenuation to ensure they fall within the ADC’s effective input range.
2. Analog-to-Digital Conversion (A/D Conversion)
   • Triple Sampling Mechanism: Based on TMR architecture, the module contains three independent ADC channels (A, B, C) for synchronous sampling of the same analog signal, converting it to digital signals (e.g., 16-bit or higher-precision binary data).
   • Anti-Interference Design: Each channel has independent ADC chips and power supplies to avoid cross-channel interference, using differential input to suppress common-mode interferences (e.g., ground potential differences, EMI).
3. Redundancy Processing & Fault Diagnosis
   • Signal Voting Mechanism: Digital signals from three channels undergo “2 out of 3” voting via internal logic. When two or more channels agree, their result is output; if a channel deviates beyond the threshold, it is isolated, and the remaining channels maintain operation.
   • Self-Diagnosis: The module continuously monitors ADC accuracy, power voltage, temperature, etc., with >99% diagnostic coverage. For hardware faults (e.g., chip failure, open/short circuit), it alerts via system alarms/LEDs and transmits fault information to the controller.
4. Digital Signal Processing & Transmission
   • Data Encoding & Transmission: Voted digital signals are transmitted to the controller via TRICONEX’s high-speed bus (e.g., TriBus), supporting industrial protocols like Modbus and EtherNet/IP for real-time data interaction with upper systems.
   • Linearization & Calibration: Built-in algorithms linearize non-linear signals (e.g., TC temperature-voltage curves) and support user-defined calibration parameters (e.g., zero offset, range) to improve measurement accuracy.
