Description

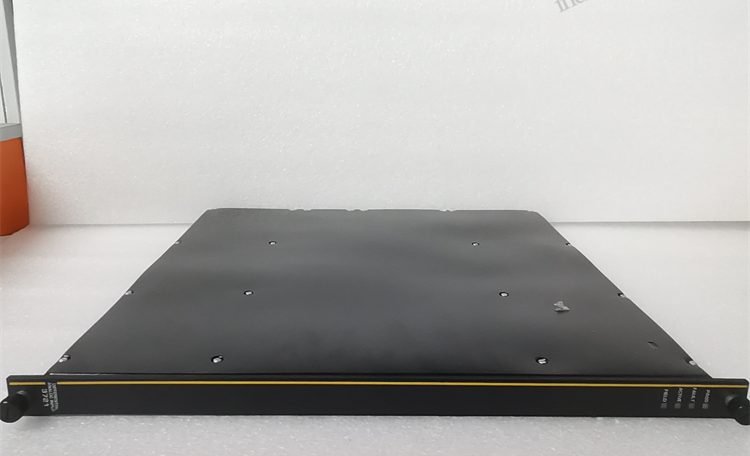

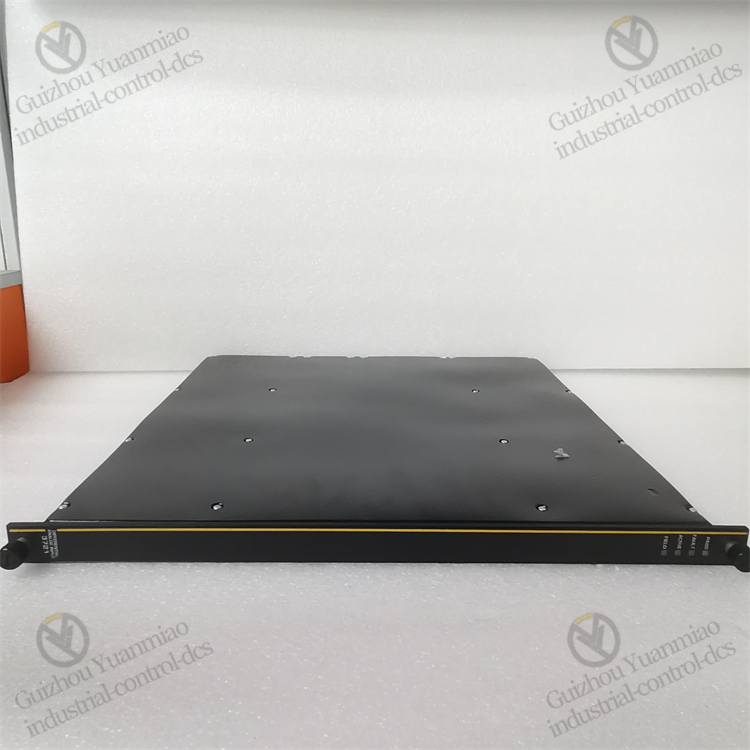

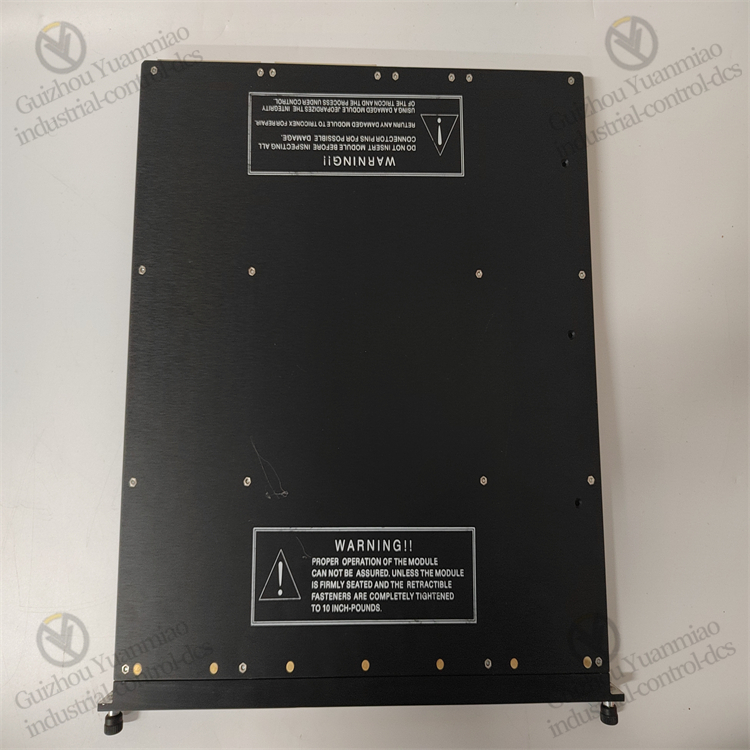

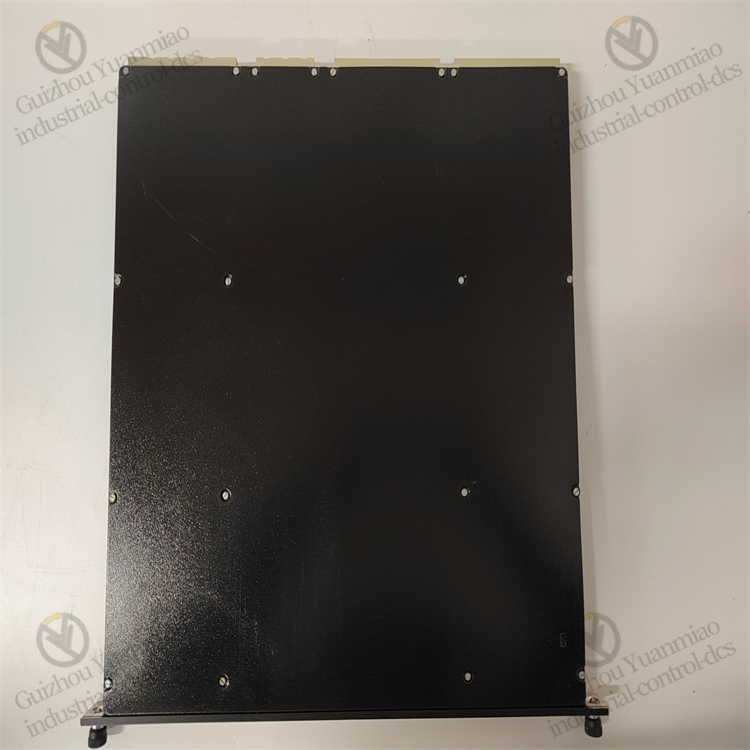

TRICONEX  3721  Differential Analog Input Module

1. Signal Acquisition and Transmission

• Differential Input Design: The module receives analog signals (typically 0-5V or -5~+5V voltage signals) from field sensors (such as temperature, pressure, and flow transmitters) through 32 differential input channels. The differential input method transmits signals via two signal lines, effectively suppressing common-mode interference (e.g., electromagnetic noise) and improving signal quality.
• Signal Conditioning: Input signals first pass through filtering and amplification circuits to remove high-frequency noise and enhance signal strength, ensuring the accuracy of subsequent conversion.

2. Analog-to-Digital Conversion (ADC)

• Programmable Resolution: The module integrates a high-precision ADC converter, supporting 12-bit or 14-bit programmable resolution, which can be configured by users according to accuracy requirements.
• Sampling and Quantization: The ADC samples analog signals at a configurable sampling rate (e.g., 10ms), converting continuous analog values into discrete digital codes to form digital signals.

3. Triple Module Redundancy (TMR) Processing

• Parallel Processing: The digital signal of each input channel is simultaneously sent to three independent processors (TMR architecture) for parallel processing.
• Majority Voting Mechanism: The three processors independently calculate the same signal and compare results in real time. If one processor fails, the system automatically selects the consistent results from the other two to ensure output reliability.
• Fault Detection: The TMR architecture continuously compares the outputs of the three processors to detect and isolate single-point faults in real time, ensuring the system continues to operate safely under fault conditions.

4. Digital Signal Transmission and System Integration

• Secure Communication Protocol: Processed digital signals are transmitted to the system’s main controller via a dedicated bus (such as Triconex’s Peer-to-Peer bus).
• Collaboration with Logic Controllers: The main controller analyzes the collected data based on preset logic (such as safety interlock strategies) and triggers corresponding control actions (e.g., valve adjustment, equipment shutdown).

5. Self-Diagnosis and Fault Handling

• Online Monitoring: The module continuously monitors its own circuit and processor status, detecting issues such as ADC failures, communication interruptions, or power anomalies.
• Fault Reporting: Upon detecting a fault, the module immediately sends an alarm signal to the system, marks the affected channels, and maintains normal operation of other channels.

Application Advantages

• High Reliability: The TMR architecture and self-diagnosis function ensure the system operates safely even under single-point faults, suitable for SIL 3-level safety applications.
• Anti-Interference Capability: Differential input and signal conditioning technologies effectively resist electromagnetic interference in industrial environments.
• Flexibility: Programmable resolution and sampling rate meet precision requirements in different scenarios.

Typical Application Scenarios

• Chemical Process Control: Monitoring key parameters such as reactor temperature and pressure.
• Power System Protection: Collecting signals like generator winding temperature and voltage.
• Oil and Gas Pipeline Monitoring: Real-time monitoring of pipeline pressure and flow to prevent leakage.
