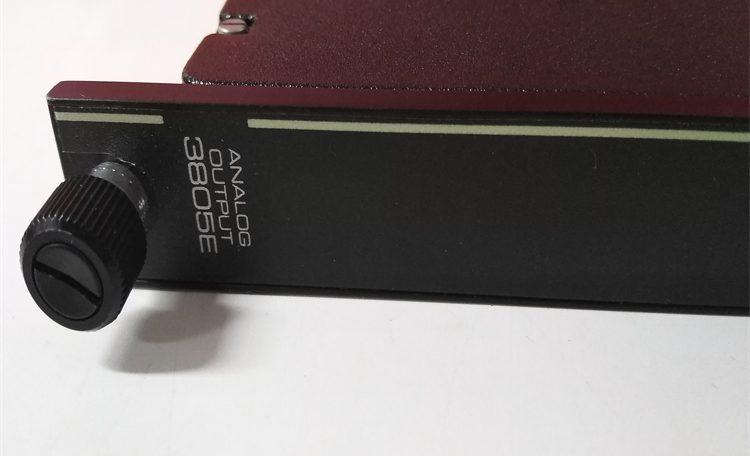

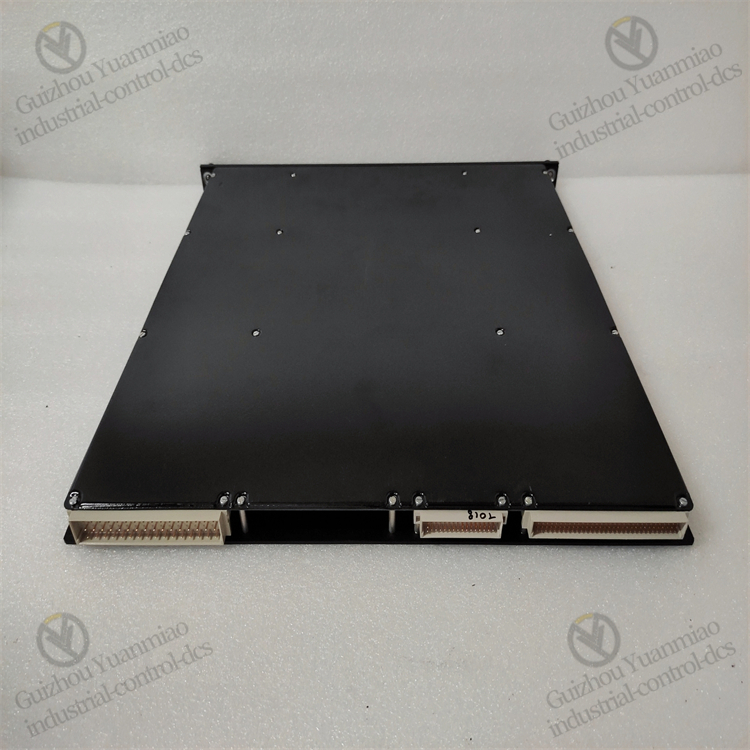

TRICONEX 3805E high-reliability analog output module
The TRICONEX 3805E is a high-reliability analog output module. Below are its detailed technical parameters:
Basic Information
- Type: Analog Output Module
- Series: Triconex
- Output Type: Analog Output
Channel Parameters
- Number of Channels: 8 points
- Output Signal: 4 – 20mA
- Current Capacity: 4 – 20mA per channel
- Point Isolation: Common return, DC coupling
Performance Parameters
- Resolution: 12 bits
- Output Accuracy: < 0.25% (within 4 – 20mA range)
- Overrange Protection: Supported, can withstand +42.5VDC continuous voltage
- Branch Fault Switching Time: < 10ms
Electrical Parameters
- Input Voltage: Typically 24V DC
Environmental Parameters
- Operating Temperature: Generally 0°C to 60°C
Communication Parameters
- Supports multiple communication protocols such as Ethernet/IP, Modbus TCP/IP, and Profibus, facilitating integration and data interaction with other devices.
Application Cases
Petrochemical Industry
In the cracking unit of a large petrochemical enterprise, TRICONEX 3805E is used as the core control component. It is responsible for real-time monitoring and control of key parameters such as the temperature, pressure, and flow rate of the cracking furnace. Through precise control algorithms, it ensures that the cracking reaction proceeds under optimal process conditions. The 3805E module has demonstrated extremely high stability and reliability during operation, effectively improving product quality and production efficiency, and reducing safety accidents and production losses caused by improper control.
Power Industry
In some power plants, the 3805E module is applied to the parameter optimization control of generator sets. It converts digital signals from the control system into analog signals to accurately control equipment such as the generator’s excitation current and speed governor, ensuring stable voltage and frequency of the generator set, and improving power generation efficiency and power quality. Meanwhile, in grid stability management, the module also plays a role in maintaining stable grid voltage and ensuring reliable grid operation by adjusting transformer tap changers and controlling reactive power compensation equipment in substations.
Nuclear Energy Industry
The 3805E module can be applied to the Safety Instrumented System (SIS) of nuclear reactors. It accurately outputs control signals to relevant actuators to achieve key operations such as power regulation and cooling system control of the nuclear reactor, ensuring the reactor operates in a safe state. It also plays an important role in monitoring and controlling radioactive materials, safeguarding the safety of the environment and personnel around the nuclear power plant.
Rail Transit Industry
The TRICONEX 3805E module is used in the signal control system of rail transit. According to the instructions from the control system, it precisely controls equipment such as signal light displays and switch transitions to ensure the safe and orderly operation of trains. Its high reliability and anti-interference capability enable it to work stably in complex electromagnetic environments, providing strong support for the safe operation of rail transit.
Pharmaceutical Industry
In the pharmaceutical process, the control of parameters such as temperature, pressure, and flow rate is extremely strict to ensure the quality and stability of drugs. The 3805E module can be used for precise control of pharmaceutical equipment. For example, in a reaction kettle, it controls temperature and pressure precisely to make chemical reactions proceed according to the set process conditions; in the drug filling link, it controls the material flow to ensure the accuracy of the filling volume.
