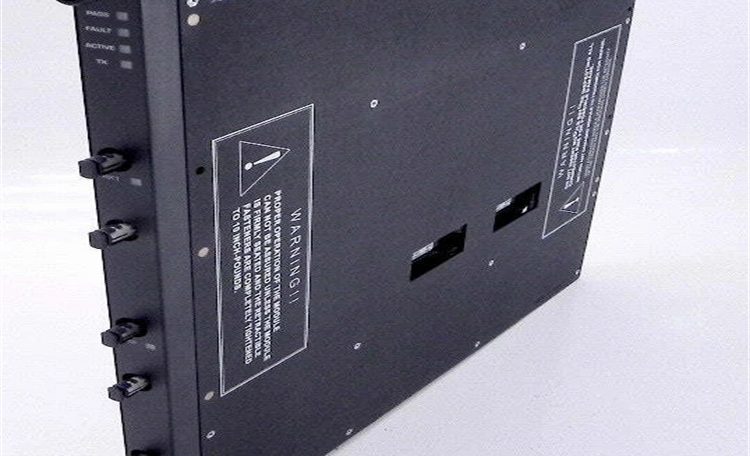

TRICONEX 4210 industrial control module
The TRICONEX 4210 module is applied to the Safety Instrumented System (SIS) and features high reliability and flexibility. The detailed introduction is as follows:
Functional Characteristics
- Safety and Reliability: Adopts proprietary design and self-diagnosis function, enabling real-time monitoring of its own status, timely detection and handling of faults, and ensuring reliable system operation. Meanwhile, it complies with the IEC 61508 SIL 3 safety level requirements, providing high-level safety protection.
- Strong Communication Capability: Supports multiple secure communication protocols such as PROFIBUS DP and Modbus TCP to meet communication needs between different devices and systems. It also uses high-speed communication technology with a maximum communication rate of 12 Mbps, ensuring fast and stable data transmission.
- Good Environmental Adaptability: Has a wide operating temperature range, capable of working normally in environments from -40°C to 85°C, and reaches the protection level of IP65, adapting to various harsh industrial environments.
Working Principle
The working principle of the 4210 module is mainly realized based on its communication function. It establishes connections with safety controllers or other devices through various supported communication protocols, receives instructions or data from other devices, and can also send out the data it collects or processes. During communication, high-speed communication technology is used to ensure fast and accurate data transmission. Meanwhile, the self-diagnosis function monitors the communication link and its own status to guarantee the stability and reliability of communication.
Technical Parameters
- Power supply voltage: 24VDC
- Power consumption: 5W
- Dimensions: 241.3 mm × 24.4 mm × 241.8 mm
Application Cases
At present, there is no publicly available specific case information clearly mentioning the use of the TRICONEX 4210 module. However, based on the module’s functional characteristics and application fields, the following possible application scenarios can be inferred:
Petrochemical Field
In large oil refineries, the TRICONEX 4210 module can be used to build a Safety Instrumented System. For example, it can remotely expand and connect the I/O points of various field instruments distributed in different locations, such as temperature sensors, pressure sensors, flow sensors, etc., and transmit the signals collected by these sensors to the safety controller. When the temperature or pressure in a certain area exceeds the set threshold, the 4210 module can quickly transmit the alarm signal to the controller through a secure communication protocol. The controller issues instructions based on preset logic, and controls the relevant safety valves to close through the 4210 module to isolate the dangerous area and prevent the accident from expanding.
Power Field
In nuclear power plants, the safety requirements are extremely high. The TRICONEX 4210 module can be used as a remote I/O module to connect various monitoring devices around the reactor, and real-timely monitor key parameters of the reactor such as temperature, pressure, and radiation dose. It transmits data accurately and stably to the central control system through redundant communication links. Once abnormal conditions occur, it can promptly trigger safety protection measures such as emergency shutdown systems. In thermal power plants, it can also be used to connect the relevant monitoring and control devices of boilers, steam turbines, etc., to achieve safe monitoring and reliable control of the power generation process and ensure the stable operation of power production.
Metallurgical Field
In the steel smelting process, the operation of equipment such as blast furnaces and converters requires strict safety control. The 4210 module can be used to expand the number of I/O points and connect various on-site detection instruments, such as sensors for monitoring the temperature and pressure of the blast furnace, and actuators for controlling oxygen valves and coal injection devices. When it is detected that the furnace temperature rises abnormally or the furnace pressure exceeds the safe range, the module can quickly transmit the information to the control system, which in turn controls the relevant equipment to adjust, ensuring the safety of the smelting process and avoiding serious accidents such as furnace body damage and explosions.
