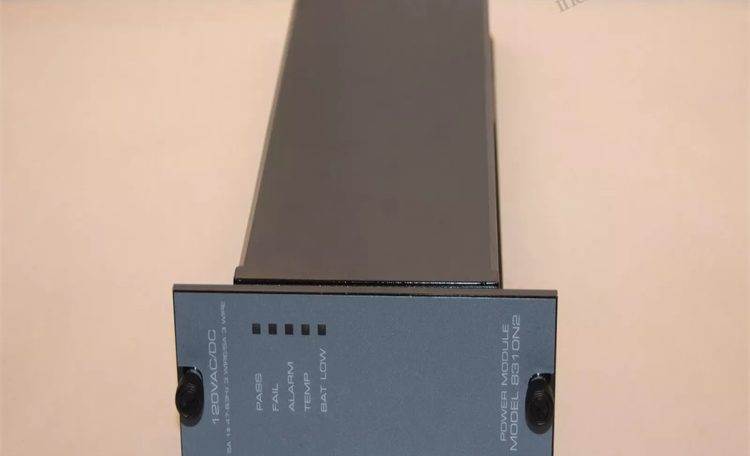

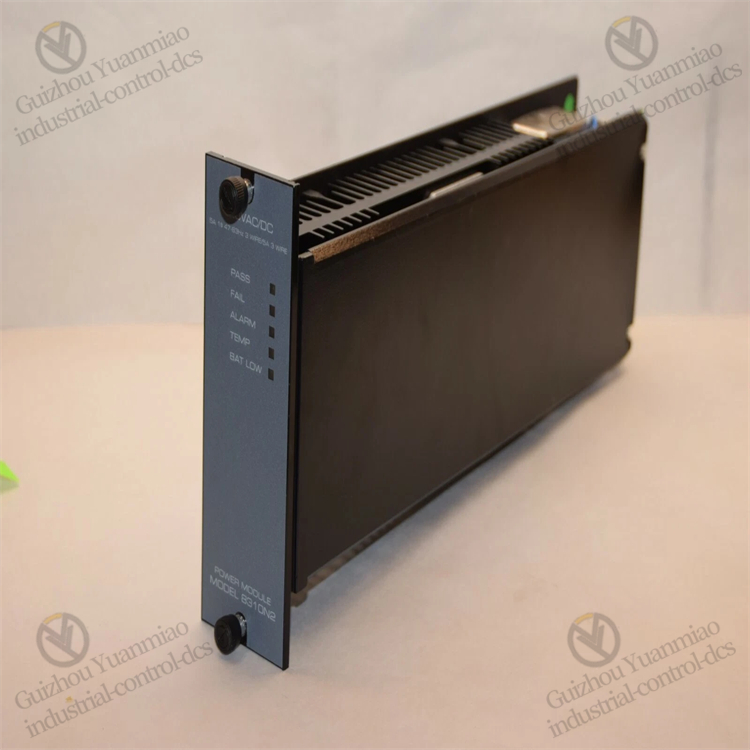

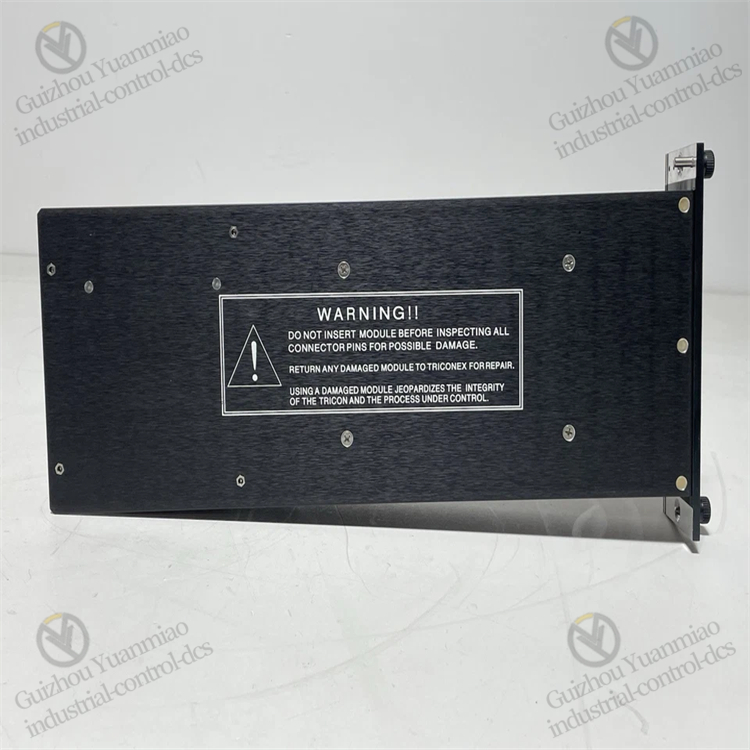

TRICONEX  8310  High-density power module

Detailed Explanation of Working Principle

1. Basic Positioning of TRICONEX 8310 Power Module

2. Core Working Principle: Energy Conversion and Redundancy Design from Input to Output

1. Input Power Processing: Wide Range Compatibility and Filtering

• Input Range: Supports wide-range power input of 100-240V AC or 24V DC, adapting to different power grid standards globally. It also features anti-grid fluctuation capabilities (e.g., voltage sag, surge).
• EMI Filtering and Rectification: The input power first passes through an EMI (Electromagnetic Interference) filter to eliminate external interference, then is converted from AC to DC via a rectifier circuit (if input is AC), providing a preliminarily stable DC voltage for subsequent circuits.

2. Energy Conversion: Efficient DC-DC Conversion

• Isolated DC-DC Conversion: Using high-frequency switching power supply technologies (such as LLC resonance, flyback topology), the input DC voltage is converted into stable voltages required by the system (e.g., +5V, +24V, etc.). This process adopts electrical isolation design to avoid interference between power channels and enhance impact resistance.
• Triple Redundancy Architecture: The TRICONEX 8310 typically employs three independent power channels (corresponding to the three independent processor branches of the TMR system). Each channel operates independently and outputs the same voltage, achieving a “2 out of 3” or “1 out of 3” redundancy voting mechanism through internal logic. If one channel fails, the remaining channels can still maintain system power supply.

3. Voltage Regulation and Protection: Dynamic Adjustment and Fault Isolation

• Closed-Loop Voltage Regulation Control: The output voltage is monitored in real time via a feedback circuit. When load changes or input fluctuations occur, the duty cycle of the switching tube is quickly adjusted to ensure stable output voltage (error typically ≤±1%).
• Multiple Protection Mechanisms:
  • Overvoltage Protection (OVP): Quickly shuts down power output when the output voltage exceeds the threshold to prevent equipment damage.
  • Overcurrent Protection (OCP): Limits or cuts off power when abnormal output current is detected to avoid module overheating.
  • Short Circuit Protection (SCP): Immediately activates protection when the output is short-circuited to prevent the power module from burning out.
  • OverTemperature Protection (OTP): A built-in temperature sensor automatically derates or shuts down the module when the temperature exceeds the safe range, and it can automatically restart after cooling down.

4. Redundancy Management and Status Monitoring

• Hot Swap Support: Enables online replacement of power modules. During replacement, the system is powered by other redundant power supplies to ensure control tasks are not interrupted.

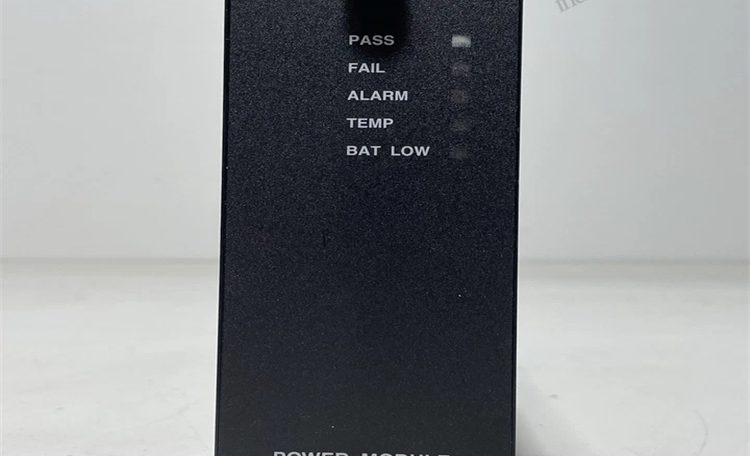

• Status Indication and Communication: Real-time working status is displayed via LED indicators (e.g., power normal, fault, redundancy status). Meanwhile, power health data is sent to the controller through internal buses (such as CAN, RS-485) for system monitoring and fault diagnosis.

3. Redundancy Collaboration Mechanism in TMR System

• Power Triplication: Three independent power channels supply power to the three processor branches respectively, and any channel failure does not affect the operation of other branches.
• Fault Tolerance: When a power channel fails, the redundant diodes or switching circuits inside the module automatically isolate the faulty channel, and the remaining channels continue to supply power, while system alarms prompt maintenance.
• Synchronization and Current Sharing: When multiple power modules are used in parallel, the current sharing circuit ensures load balancing among modules, avoiding single-module overload and extending service life.

4. Industrial Environment Adaptability Design

• Wide Temperature Operation: Supports an operating temperature range of -40°C to +70°C, adapting to harsh industrial environments such as high and low temperatures.
• Anti-Interference Capability: Through enhanced insulation and shielding design, it meets industrial Electromagnetic Compatibility (EMC) standards (e.g., IEC 61000), reducing the impact of external interference on the power supply.
• High Reliability Certification: Complies with safety certifications such as UL, CSA, and ATEX, suitable for explosive-proof areas (e.g., petrochemical, natural gas mining).

5. Technical Differences from Other Power Modules

• Triple Redundancy Architecture: Specifically designed for safety-critical systems, with an MTBF (Mean Time Between Failures) of over 100,000 hours.
• Deep Integration with TMR System: Power status directly participates in system health diagnosis, forming 联动保护 (interactive protection) with controllers and I/O modules.
• Long Life Cycle Support: Industrial-grade component selection enables stable operation for 10-15 years, reducing frequent replacement costs.

6. Typical Application Scenarios

• Petrochemical Industry: Provides redundant power for SIS (Safety Instrumented System) and ESD (Emergency Shutdown System) to ensure safety control in explosive hazardous environments.
• Nuclear Power and Electricity: Powers reactor protection systems and power grid monitoring equipment, meeting high reliability and fault tolerance requirements.
• Rail Transit: Provides stable power for train signal systems and braking control power supplies to ensure driving safety.
