Description

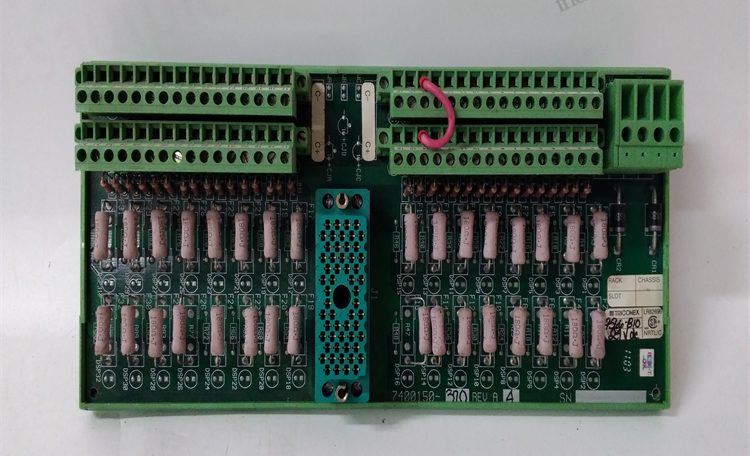

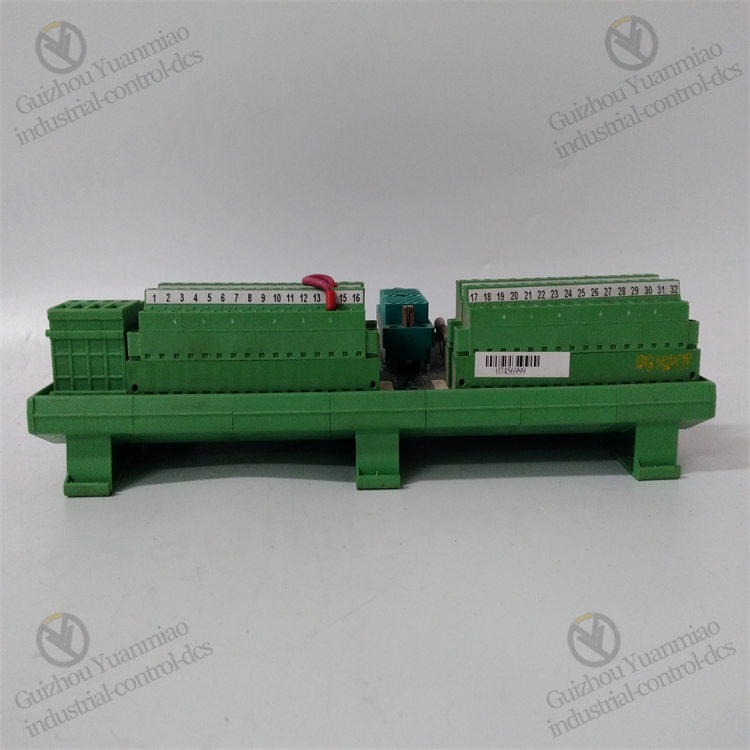

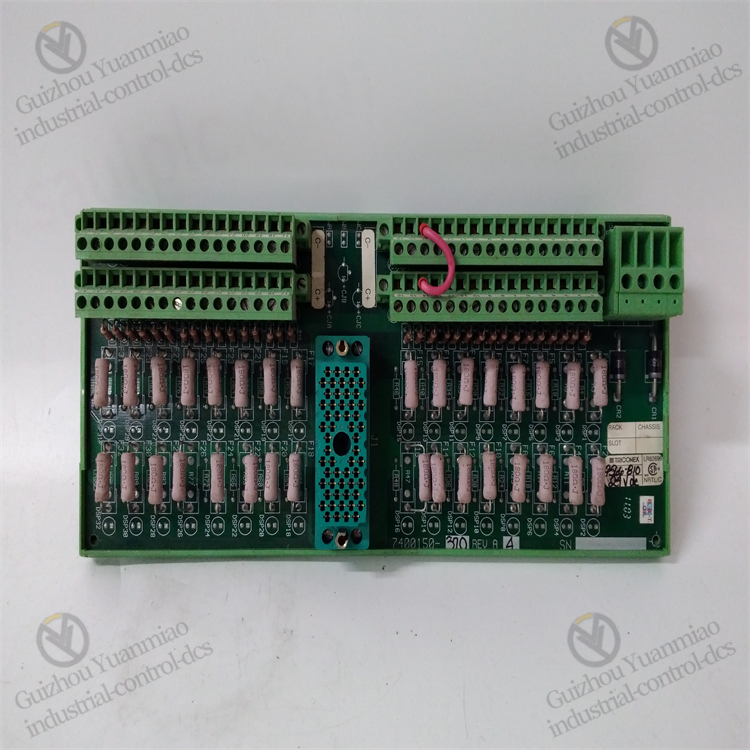

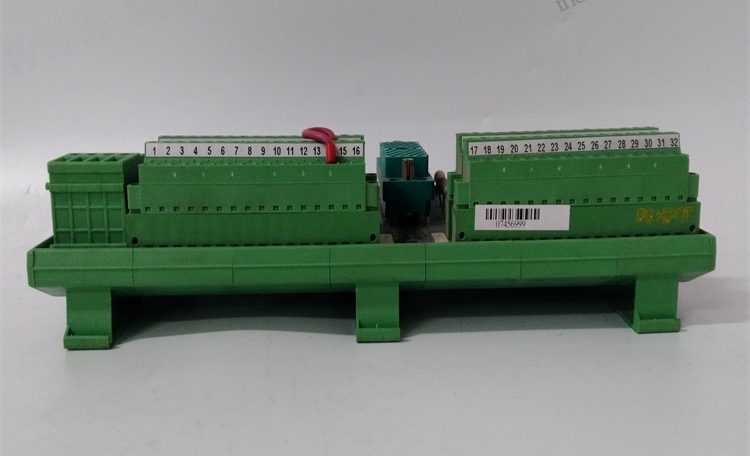

TRICONEX 9566-810 Redundant Digital Input Module
Main Parameters
- Input Type: Digital input
- Number of Channels: 32 input points
- Operating Voltage: 24VDC
- Input Signal Type: Supports dry contact and optoelectronic isolation inputs
- Protection Rating: IP66
- Operating Temperature Range: -20°C to 60°C
- Dimensions: Approximately 300 x 150 x 75mm (12″ x 6″ x 3″)
- Weight: Approximately 2 kg (4 lbs)
Product Features
- High Reliability: Utilizes Triple Modular Redundancy (TMR) technology with hot-standby redundancy support, ensuring continuous system operation even during single-point failures for maximum stability.
- High Safety Rating: Complies with IEC 61508 SIL 3 safety level requirements, suitable for safety monitoring and control in critical industrial processes with stringent safety demands.
- Powerful Fault Diagnosis: Equipped with diagnostic capabilities to promptly detect and report system faults, enabling users to quickly locate and resolve issues, reducing maintenance time and costs.
- Easy Installation and Maintenance: Modular design facilitates convenient installation and flexible integration with other modules. Simplified maintenance enhances overall system maintainability.
- Rich Communication Interfaces: Supports Modbus and Ethernet communication protocols for seamless integration with other devices and systems, enabling system expansion and upgrades.
Working Principles
Signal Acquisition Principle
The module features 32 digital input channels capable of receiving digital signals from various sensors or field devices. It supports standard digital signal levels such as 24VDC or 125VDC, depending on product specifications and configurations. When field devices like sensors or switches generate signal changes (e.g., switch closure or opening), the input channels instantly detect these changes and convert them into internally processable electrical signals.
Signal Conditioning and Isolation Principle
Internal signal conditioning and isolation circuits are integrated. The conditioning circuit amplifies and shapes input signals to ensure they meet subsequent processing requirements. The isolation circuit separates external inputs from internal circuitry, minimizing interference and noise, enhancing system stability and reliability while protecting against external circuit failures.
Triple Redundancy Technology Principle
The TRICONEX 9566-810 employs TMR technology, consisting of three identical system branches (except for the dual-redundant power module). Each branch independently executes control programs and operates in parallel. Input signals are processed separately by each branch, and results are voted via a hardware voting mechanism (typically 2-out-of-3), ensuring system reliability and fault tolerance even if one branch malfunctions.
Fault Diagnosis Principle
The module’s built-in diagnostic circuit continuously monitors its operational status, including input channels, signal conditioning circuits, and redundant branches. Detected faults are logged and reported via indicators or alarms, enabling rapid issue resolution and ensuring continuous system stability.
Communication Principle
Supports multiple communication protocols (e.g., Modbus, DNP3, OPC, depending on configuration). Enables data transmission to superior control systems (e.g., DCS, PLC) and control commands, facilitating integration and collaborative operation within industrial automation systems.
Application Cases
Oil & Gas Industry
- Offshore Drilling Rigs: Monitors drilling equipment parameters (e.g., mud pressure, flow rate, temperature, rig rotation speed, torque). Triggers protective measures (e.g., reducing drilling speed, halting operations) upon to prevent equipment damage and ensure platform safety.
- Refineries: Controls catalytic cracking units by monitoring reactor temperature and pressure, adjusting feed rates and catalyst injection to optimize reaction conditions. Activates emergency shutdown systems during to prevent fires or explosions.
Chemical Industry
- PVC Production: Implements Safety Instrumented Systems (SIS) to monitor critical parameters (e.g., reactor temperature, pressure, 液位) and agitator status. Automatically 启动 pressure relief and cooling systems to prevent reaction runaway, while communicating with DCS for real-time monitoring.
- Pharmaceutical Manufacturing: Controls fermentation tanks by regulating temperature, pH, and dissolved oxygen levels to optimize microbial growth, enhancing product quality. Uploads process data to management systems for analysis and optimization.
Power Industry
- Thermal Power Plants: Monitors boiler parameters (e.g., water level, steam pressure, furnace temperature) and adjusts feedwater pumps and safety valves to maintain normal operation, preventing tube bursts or water shortages.
- Wind Farms: Controls wind turbines by operational data (e.g., rotation speed, power, oil temperature, vibration) and adjusting blade angles for optimal efficiency. Enables emergency shutdowns during faults to protect equipment.
Manufacturing
- Automotive Production: Controls robotic welding and assembly lines by processing sensor signals to ensure precise positioning, angle adjustment, and welding parameters. Diagnostic 功能 detects faults, minimizing downtime and improving efficiency.
- Semiconductor Manufacturing: Controls lithography machines by regulating exposure positions and times, ensuring high-precision pattern transfer and improving chip yield. Integrates with factory systems for automated process control.
Water Treatment
- Municipal Sewage Plants: Automates wastewater treatment by monitoring flow rates, (e.g., COD, ammonia nitrogen), and dissolved oxygen levels. Adjusts aeration and sludge pumps to meet discharge standards, while alerting operators to conditions.
- Industrial Water Treatment: Manages reverse osmosis (RO) systems by monitoring inlet pressure, flow rate. Automatically chemical cleaning and operational parameters to maintain membrane efficiency and prolong lifespan.
Summary: The TRICONEX 9566-810 module 实现 reliable digital signal acquisition, processing, transmission, and fault diagnosis through its advanced working principles, providing robust support for safety monitoring and control in industrial processes.
