Description

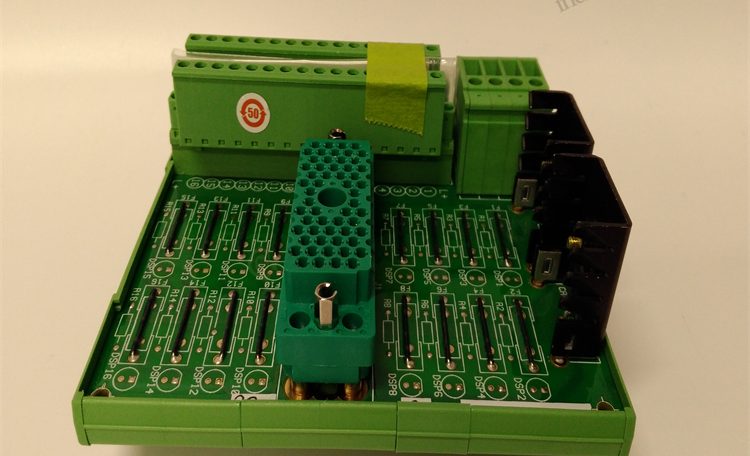

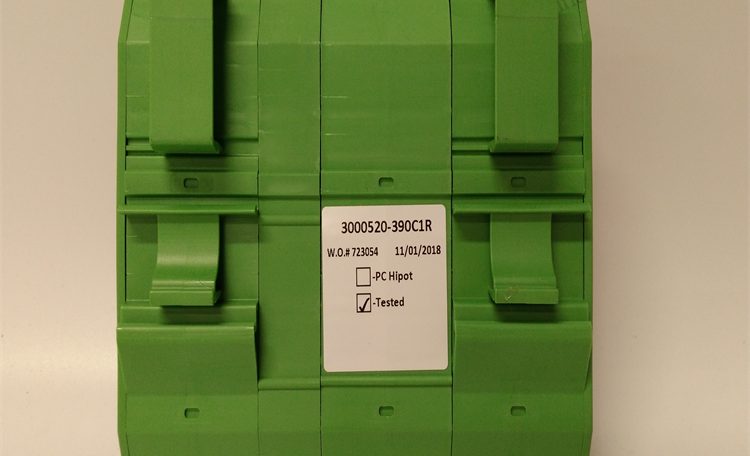

TRICONEX   9662-610   High-Performance Digital Output Module

Main Parameters

• Output Type: Digital output
• Number of Channels: Typically 16 output channels (configurable according to the model)
• Operating Voltage: 24VDC (other voltage levels such as 110/230VAC are also supported, depending on the specific model)
• Output Current: The output current capacity of each channel is generally 1A or 2A (depending on the model)
• Output Form: Usually relay output or solid-state output (transistor or thyristor), which can be selected according to actual needs
• Protection Level: Generally IP20 or higher (depending on the installation environment and configuration)
• Operating Temperature Range: -40°C to 70°C (subject to the product manual)

Product Features

• High Reliability: Adopts Triple Module Redundancy (TMR) technology. Each output channel has three independent processing paths, and the reliability and fault tolerance of the output are ensured through a 2-out-of-3 voting mechanism. Even if a single channel fails, it will not affect the normal operation of the system.
• High Safety Integrity Level: Complies with the requirements of IEC 61508 SIL 3 safety integrity level, and is suitable for safety-critical applications in high-risk industrial environments, such as Emergency Shutdown Systems (ESD) and Fire and Gas Detection Systems (FGS).
• Fault Detection and Diagnosis: Equipped with a perfect self-diagnosis function, which can monitor the status of output channels in real time, detect problems such as short circuits, open circuits, and ground faults, and issue alarm signals in a timely manner, facilitating maintenance personnel to quickly locate and solve faults.
• Flexible Configuration: Supports multiple output forms and voltage levels, and can be flexibly configured according to actual application needs to adapt to different industrial field environments.
• Hot-Swap Design: Supports online hot-swap replacement. Faulty modules can be safely replaced during system operation without shutdown, which greatly reduces maintenance time and the impact on production.
• Communication Interfaces: Usually supports communication protocols such as Modbus, Profibus, and Ethernet, and can communicate with the host computer system to achieve remote monitoring and configuration.

Working Principle

• Signal Reception and Processing: The module receives digital signal commands from control systems (such as PLC and DCS) and transmits them to three internal independent processing channels.
• Redundancy Voting Mechanism: The three processing channels independently process the same command, and then perform 2-out-of-3 voting through a hardware voting circuit. An effective output signal is generated only when at least two channels have consistent processing results, thereby ensuring the reliability of the output.
• Output Drive: The valid signal after voting is driven by the output drive circuit to drive the corresponding output channel and control the actions of external actuators (such as valves, relays, and indicators).
• Status Feedback: The module monitors the status of the output channels in real time and feeds back the status information to the control system for real-time monitoring and fault diagnosis.

Application Fields

• Oil and Gas Industry: Used in safety-critical applications such as Emergency Shutdown Systems (ESD), Fire and Gas Detection Systems (FGS), and valve control in refineries, natural gas processing plants, and offshore platforms.
• Chemical Industry: In chemical plants, it is used to control emergency shut-off valves, safety valves, and other equipment of reactors, storage tanks, pipelines, etc., to ensure the safety of the production process.
• Power Industry: Applied to boiler control systems, steam turbine control systems, generator protection systems, etc., in power plants to ensure the safety and stability of power production.
• Pharmaceutical and Food Industry: In the pharmaceutical and food production processes, it is used to control the start-stop of key equipment and safety interlocks to ensure that the production process meets hygiene and safety standards.
• Other Industries: It can also be applied to other industrial fields with high safety requirements, such as rail transit, metallurgy, and mining.
