Description

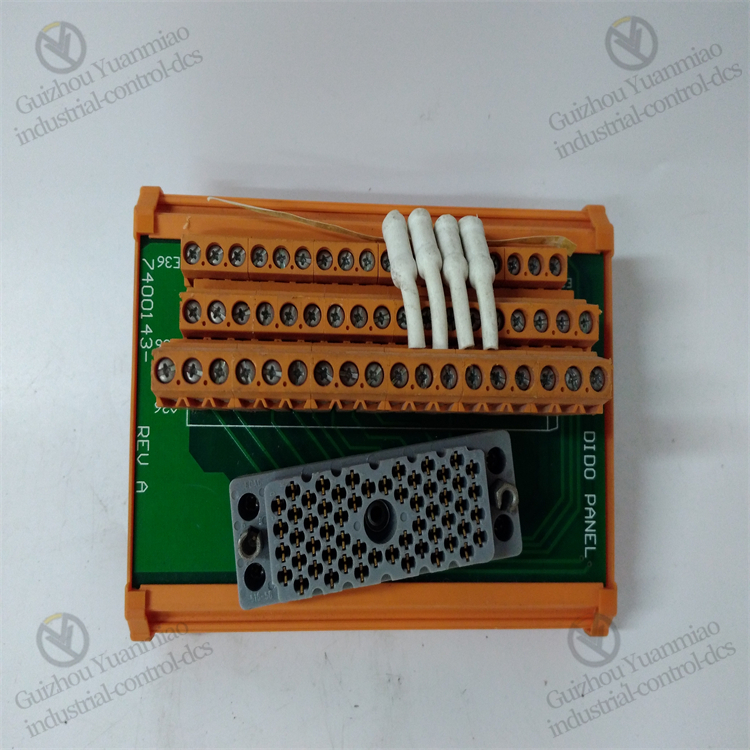

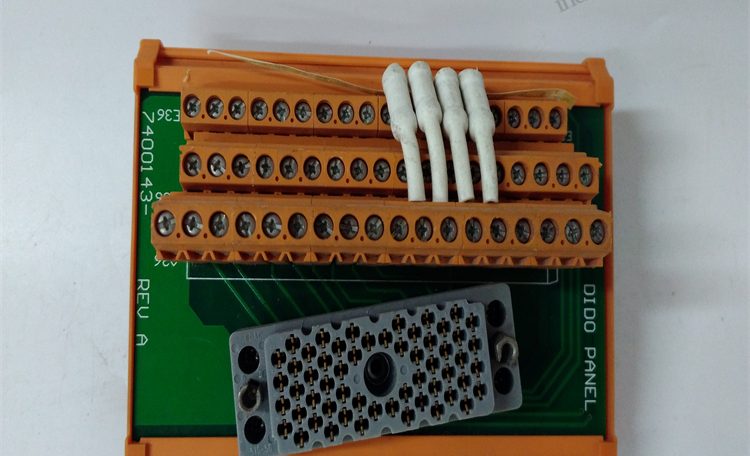

TRICONEX 9853-610 Analog Input Terminal Board
Basic Parameters
- Input Range: Supports multiple input ranges, including 0-10V, -10V to 10V, 4-20mA, and 0-20mA.
- Measurement Accuracy: Up to ±0.1%, meeting relatively precise measurement requirements.
- Resolution: 12 bits.
- Update Rate: 250ms.
- Power Supply Range: 24VDC.
- Power Consumption: 5W.
- Operating Temperature: -40°C to 85°C.
- Protection Level: IP65, with good dust and water resistance, suitable for harsh industrial environments.
- Dimensions: 110 mm × 45 mm × 22 mm.
- Housing Material: Plastic.
- Terminal Type: Screw-type terminals.
Main Features
- High Reliability: Adopts redundant design and self-diagnosis function. Based on the Triple Module Redundancy (TMR) structure of the Triconex system, it ensures safe and reliable system operation, complies with SIL 3 certification requirements, and is suitable for high-safety-level application scenarios.
- High Precision: Provides high-precision analog input to meet various demanding measurement requirements.
- Modular Design: Compact structure for convenient installation and maintenance, and can be flexibly configured and expanded according to system needs.
- Signal Isolation: Input channels are isolated from each other to effectively prevent signal interference and ensure the accuracy of signal transmission.
- Multiple Signal Support: Supports various analog signal types, adapting to different sensors and devices.
Functions and Applications
Its main role is to collect on-site analog signals (such as temperature, pressure, flow, liquid level, etc.), convert them into digital signals, and transmit them to the Triconex safety controller, providing real-time process data for the system to be used in control, protection, and other operations. It is widely applied in industrial process control, equipment protection, emergency shutdown systems, fire alarm systems, and other scenarios, playing an important role in industries with high safety and reliability requirements, such as petrochemical, power, and nuclear power.
Application Cases
Petrochemical Industry
In the atmospheric and vacuum distillation unit of a large refinery, precise monitoring and control of parameters such as the temperature, pressure, and flow rate of the distillation column are required. The TRICONEX 9853-610 analog input terminal board can be used to connect various on-site analog sensors, such as thermocouples, pressure transmitters, and electromagnetic flowmeters. It converts the analog signals from the sensors into digital signals and accurately transmits them to the Triconex safety controller. The controller analyzes and judges based on these data, then issues control commands to actuators such as regulating valves and pumps to ensure the stable operation of the distillation process. Meanwhile, when certain parameters are abnormal, the system can promptly trigger interlock protection to avoid accidents.
Power Industry
In a thermal power plant, monitoring the water level of the boiler is crucial. The TRICONEX 9853-610 can connect to the analog output signal of the boiler water level gauge and transmit the water level information to the control system in real time. Once the water level exceeds the normal range, the control system will quickly respond by adjusting the speed of the feed water pump or opening/closing related valves to maintain the stability of the water level. Additionally, in the operation control of the steam turbine, this terminal board can also be used to collect analog signals such as steam flow, temperature, and pressure, providing accurate data support for steam turbine speed regulation, load control, etc., to ensure the safe and stable operation of the generator set.
Natural Gas Industry
In a natural gas long-distance pipeline project, real-time monitoring of parameters such as pressure, temperature, and flow rate along the pipeline is required to detect abnormalities such as leaks in a timely manner. The TRICONEX 9853-610 can be installed at monitoring stations along the pipeline to convert and transmit the analog signals from on-site pressure transmitters, temperature sensors, ultrasonic flowmeters, and other devices. Through the Triconex system, real-time monitoring of the pipeline operation status is achieved. When abnormal data is detected, the system will automatically activate corresponding emergency plans, such as closing nearby block valves, to prevent safety accidents caused by natural gas leaks.
Sewage Treatment Industry
In an urban sewage treatment plant, monitoring and control of parameters such as the liquid level of sewage tanks, sewage flow, and water quality (such as pH value, chemical oxygen demand, etc.) are required. The TRICONEX 9853-610 can collect these analog signals and transmit them to the sewage treatment control system. Based on these data, the system can automatically control the operation of sewage lift pumps, adjust the aeration volume, control the dosing device, etc., to ensure the effect and efficiency of sewage treatment and realize the automation and intelligence of the sewage treatment process.
