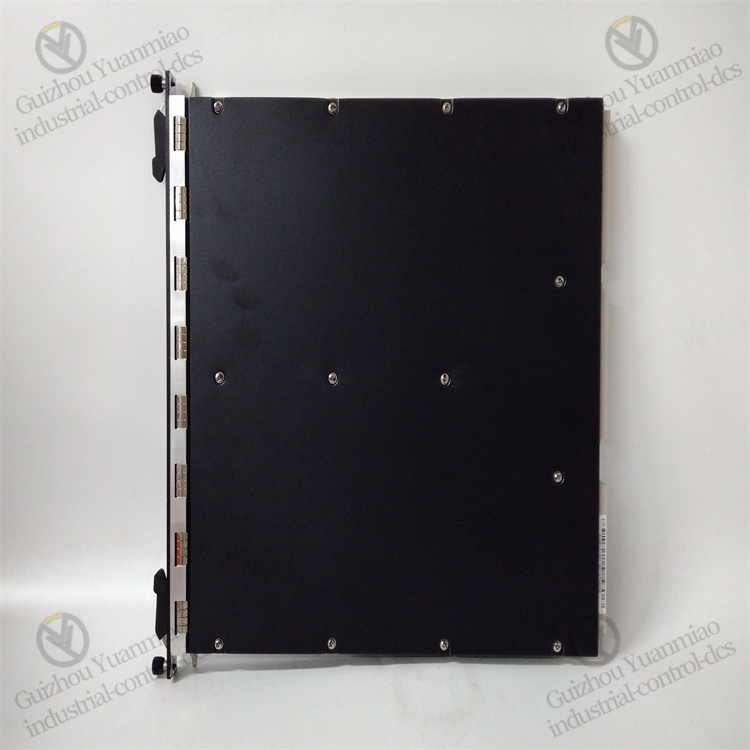

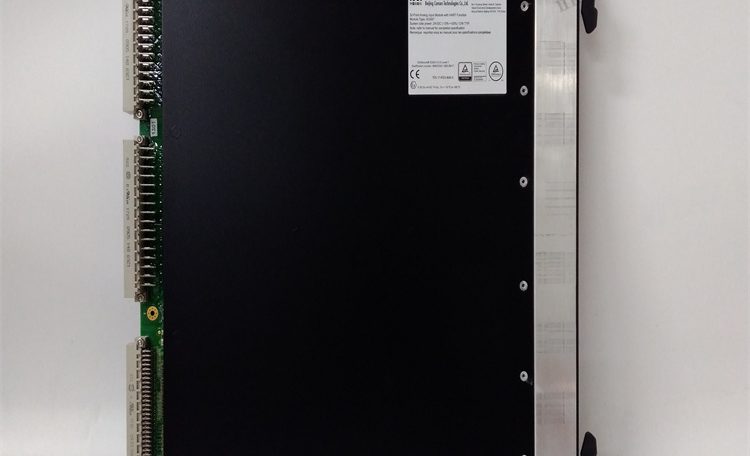

TRICONEX  AI3281  Analog Input Module

Main Parameters

• Input Signal Types
  • Supports 4-20mA current signals (most common), 0-10V voltage signals, or RTD (resistance temperature detector) sensor signals.
  • Some models may support HART protocol, allowing digital communication to be superimposed on analog signals.
• Accuracy and Resolution
  • Measurement accuracy: Typically ±0.1% or higher (depending on the specific model).
  • Resolution: 16 bits or higher to ensure precise signal conversion.
• Number of Channels
  • Usually 8 or 16 channels, enabling simultaneous processing of multiple analog signal inputs.
• Safety Certification
  • Complies with SIL 3 safety integrity level (certified by IEC 61508).
  • Adopts Triple Module Redundancy (TMR) architecture for strong fault tolerance.
• Operating Environment
  • Temperature range: -40°C to +85°C (industrial-grade standard).
  • Protection level: Typically IP20 (requires installation in a control cabinet).
• Power Supply and Power Consumption
  • Power supply: 24VDC (supports redundant power supply).
  • Power consumption: Approximately 5-10W (varies by channel count and configuration).

Functional Features

• High-Reliability Design
  • TMR architecture: Each input channel is processed by three independent circuits, ensuring signal reliability through a 2oo3 (two-out-of-three) voting mechanism.
  • Fault detection: Built-in self-diagnosis function for real-time monitoring of module operation status, supporting online replacement (hot-swapping).
• Signal Isolation
  • Electrical isolation between channels to prevent signal interference and enhance noise resistance.
• Flexible Configuration
  • Configures input types, ranges, filtering parameters, etc., via TriStation software.
  • Supports linearization processing (e.g., nonlinear correction for temperature sensors).
• Communication Interfaces
  • Supports industrial bus protocols such as Modbus and Profibus for integration with host computers or DCS systems.

Application Scenarios

• Oil & Gas
  • Connects pressure transmitters, temperature sensors, flow meters, etc., to monitor operational parameters of critical equipment such as pipelines and reactors.
• Chemical & Pharmaceutical
  • Collects analog signals like pH, liquid level, and concentration for process control and safety interlocks.
• Power Industry
  • Monitors parameters such as boiler water level, turbine vibration, and generator temperature to ensure the safety of power generation equipment.
• Rail Transit
  • Used for analog signal collection in train control systems (e.g., speed sensors, pressure sensors).
• Emergency Shutdown System (ESD)
  • Serves as a front-end input module for safety instrumented systems, triggering emergency responses in hazardous situations.

Technical Comparison

• Higher safety level: SIL 3 certification suitable for highest-risk scenarios.
• TMR architecture: Fault tolerance far exceeds traditional dual-channel designs.
• Deep integration: Seamlessly collaborates with other Triconex modules (e.g., CPU, communication modules) to optimize system performance.

Notes

• Installation requirements: Must be installed in explosion-proof cabinets or control rooms, complying with relevant safety standards (e.g., ATEX, IECEx).
• Maintenance recommendations: Regularly perform self-diagnosis tests to ensure normal module operation.
• Compatibility: Verify compatibility with existing Triconex system versions (e.g., 3008, 3503E controller series).
