Description

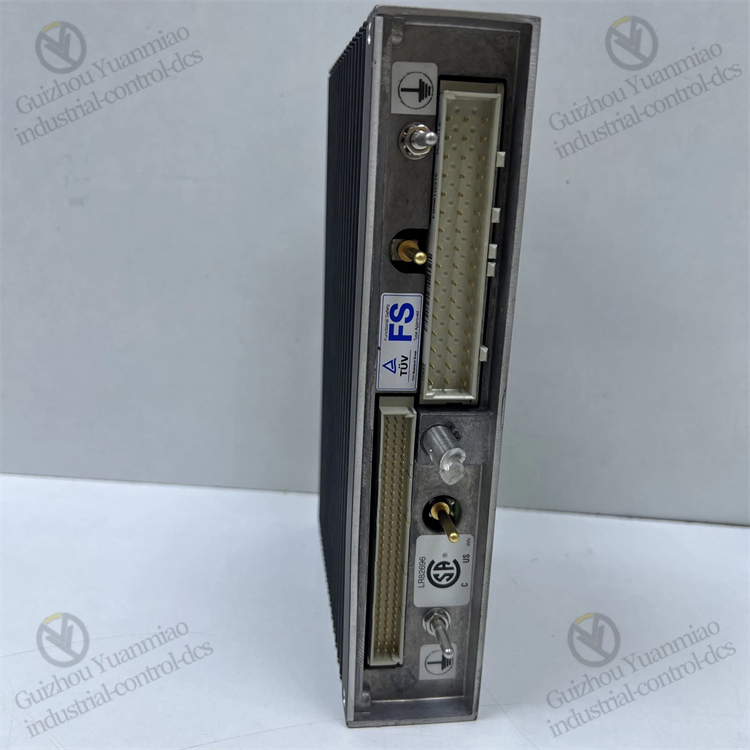

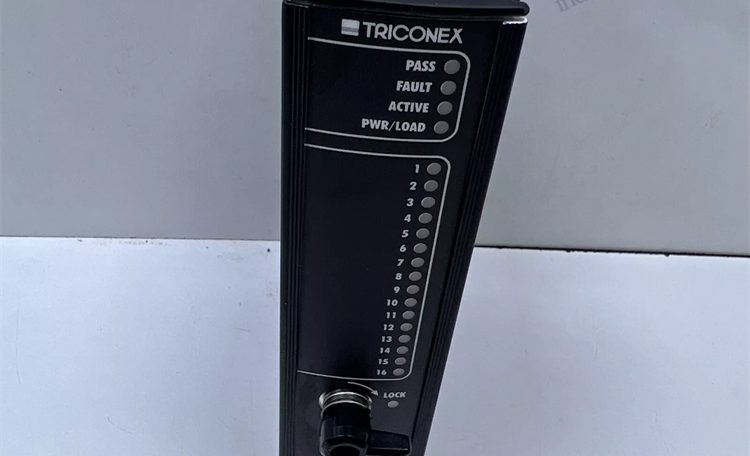

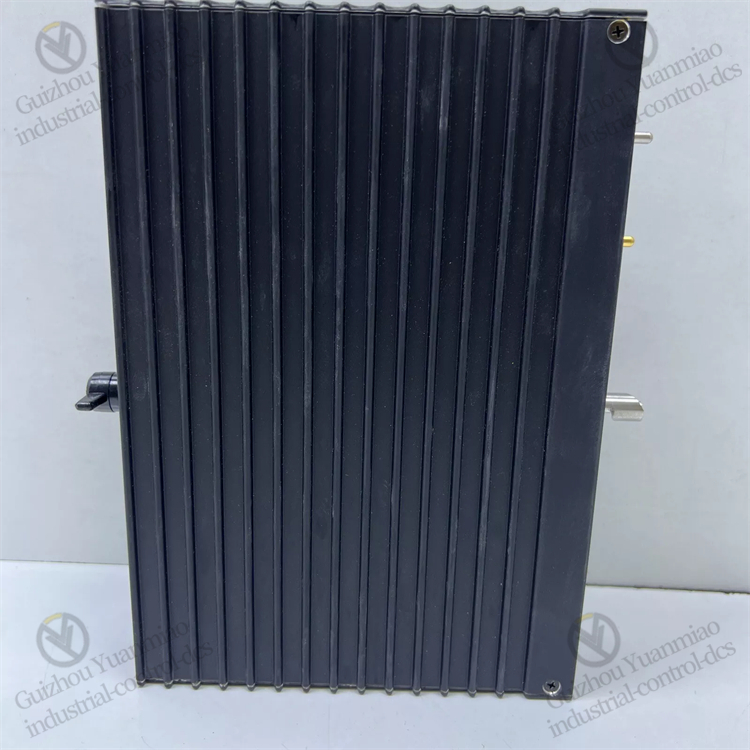

TRICONEX DO3401 Digital Output module
DO3401 is part of the TRICONEX safety system. It is a digital output module with characteristics such as high reliability and high safety, mainly used in industrial process control and safety-critical applications. The detailed introduction is as follows:
Key Features
- High Reliability: Adopts triple redundancy design, which can effectively reduce the risk of single-point failures and ensure stable operation under extreme conditions.
- Fast Response: Has the ability to respond quickly, enabling timely execution of control commands to meet the real-time requirements in industrial scenarios.
- Strong Diagnostic Function: Built-in fault self-checking function can quickly identify faults, facilitating maintenance personnel to troubleshoot and repair.
- Good Compatibility: Compatible with other TRICONEX SIS components and supports multiple communication protocols, making it convenient for integration with different devices and systems.
- High Safety Level: Complies with the IEC 61508 SIL 3 certification standard, providing a high level of safety assurance.
Technical Parameters
- Number of Outputs: 32 channels.
- Output Type: Supports relay or transistor output.
- Rated Voltage: 24VDC.
- Rated Current: 2A.
- Operating Temperature Range: -20°C to +60°C.
- Protection Level: Typically IP20.
- Power Consumption: Less than 25W.
- Installation Method: 19-inch rack mounting.
Main Functions
Converts safety logic signals into relay contact signals or converts digital control signals into actual physical output signals, thereby driving external devices such as actuators, relays, solenoid valves, and motors to achieve the control and protection of industrial processes.
Application Scenarios
- Oil and Gas Industry: Used to control pipeline switching, refinery equipment operation, and safety-related functions of offshore platforms, etc., to ensure the safety of production and transportation processes.
- Power Industry: Ensures the safe operation of equipment such as generators and turbines, and can also participate in the control systems of power plants to monitor and control relevant parameters.
- Chemical Processing Plants: Used to ensure the safe operation of key equipment such as reactors and distillation columns, and precisely control the actions of relevant equipment according to process requirements.
- Nuclear Power Plants: In nuclear power plants, it ensures safe operation, monitors and controls various key equipment and parameters, and timely takes safety measures in case of abnormal conditions.
- Other Fields: Also widely used in pharmaceutical, food processing, machinery manufacturing, transportation, construction and other industries to monitor and control key parameters in the production process or realize automated control of equipment, etc.
