Description

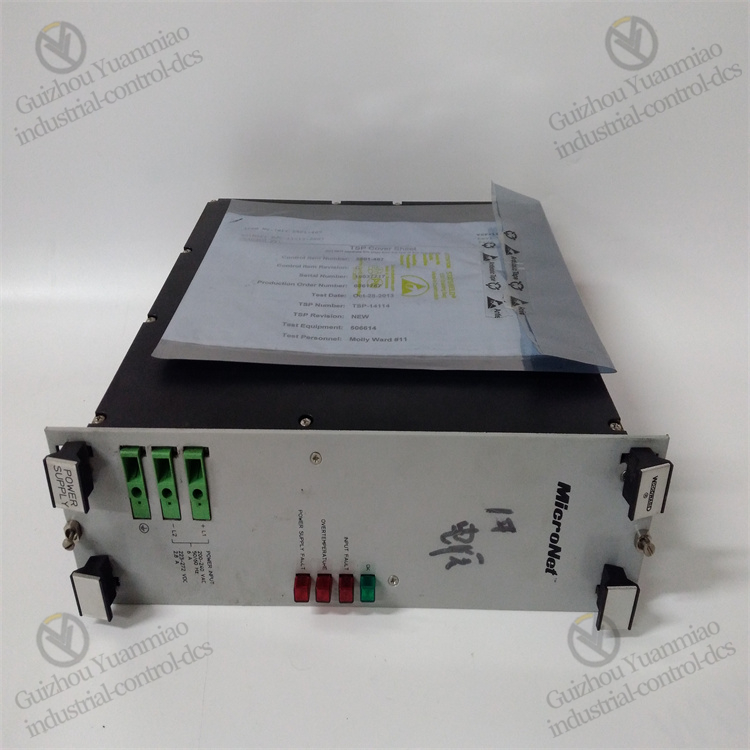

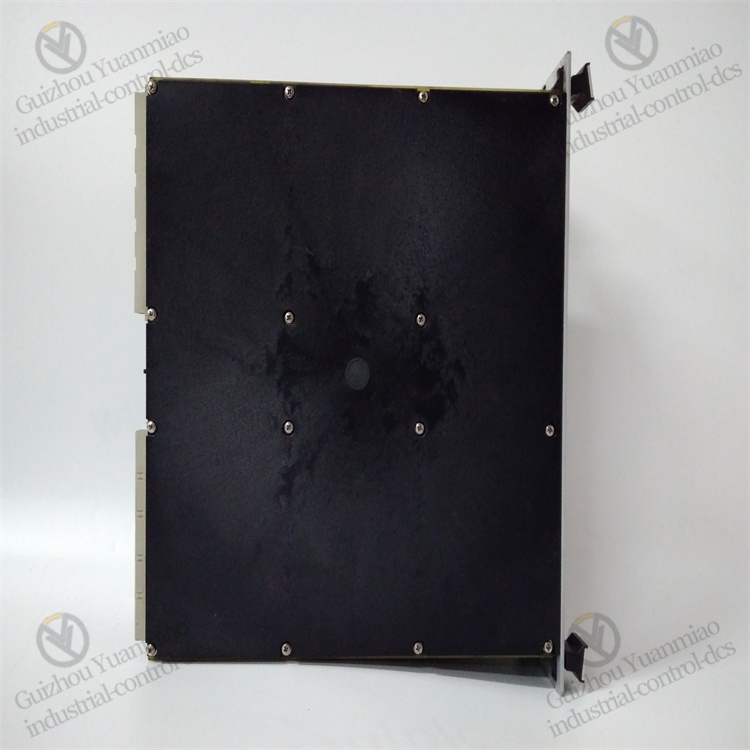

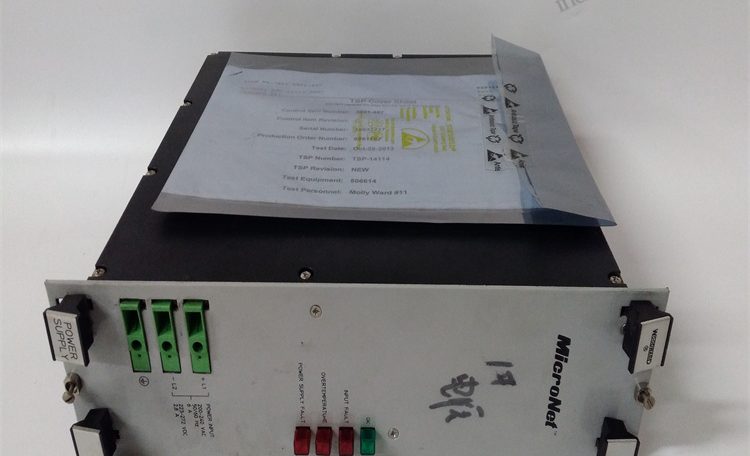

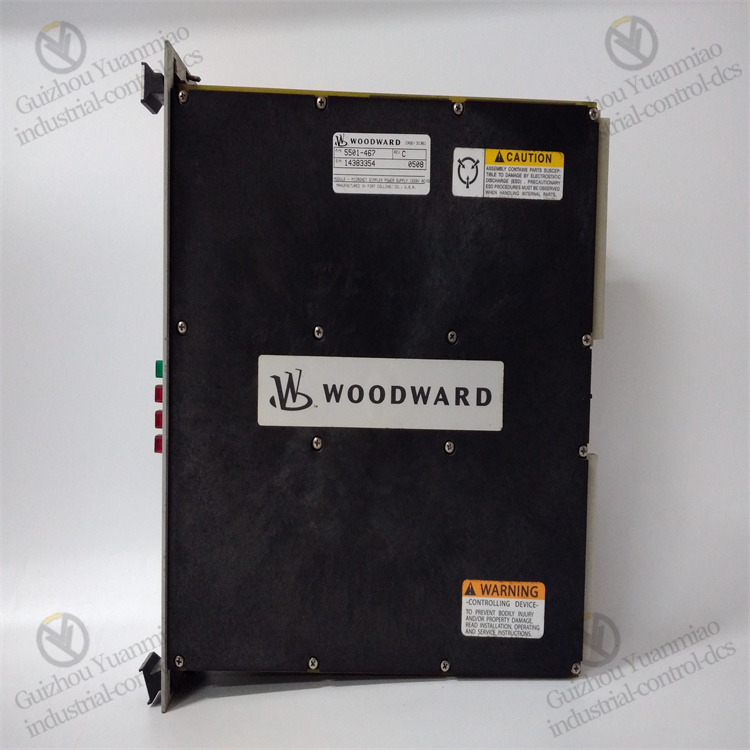

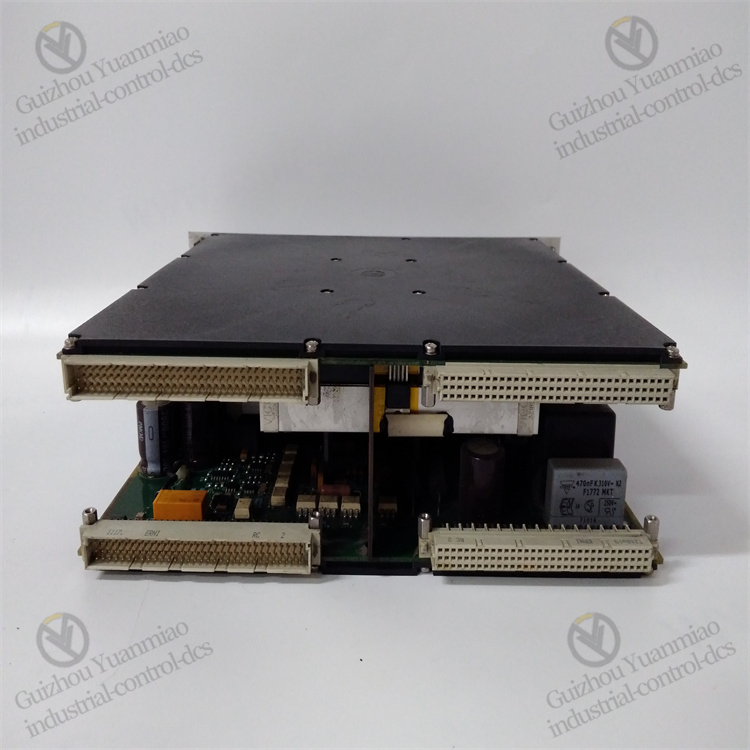

Woodward  5501-467  Power Supply Board

I. Overview of Basic Working Principle

Input Filtering and Protection

• The input 24V DC first passes through an EMI/RFI filter to remove high-frequency interference and clutter from the power grid.
• Built-in overvoltage, undervoltage, and surge protection circuits ensure that abnormal voltages do not damage the module.

DC-DC Conversion

• The input DC voltage is chopped into high-frequency pulses through a high-frequency switching circuit (typically operating at 50kHz–500kHz).
• The pulses are stepped down by a high-frequency transformer while achieving electrical isolation between input and output.

Rectification and Filtering

• The stepped-down high-frequency pulses are converted into pulsating DC through rectifier diodes or synchronous rectification circuits.
• They are then smoothed by an LC filter network (inductor + capacitor) to obtain a stable DC voltage.

Feedback Control

• The output voltage is sampled by a precision voltage divider network and compared with the internal reference voltage.
• The error signal adjusts the conduction time of the switching tube through a PWM (Pulse Width Modulation) controller to achieve closed-loop control, ensuring the output voltage stabilizes at 5V ±0.5%.

Multi-Output Distribution

• The main output 5V/20A powers the core control system, while auxiliary power supplies (e.g., 12V, 3.3V) power I/O modules and communication circuits.

II. Key Technical Characteristics

High-Efficiency Conversion

• Adopts synchronous rectification technology and low-loss power devices, with an efficiency of over 85%, reducing heat generation and energy consumption.
• Soft switching technologies (such as Zero Voltage Switching ZVS/Zero Current Switching ZCS) reduce switching losses and enhance high-frequency performance.

Redundancy and Fault Tolerance Design

• Supports parallel redundancy configuration (N+1), realizing parallel power supply of multiple modules through current sharing circuits to improve system reliability.
• Built-in overcurrent and overtemperature protection automatically limits current or shuts down during faults to protect downstream equipment.

EMC Compatibility

• Multi-stage filtering design meets industrial-grade EMI standards (e.g., EN 55032 Class A/B), reducing interference with other devices.
• Input-output isolation voltage reaches 1500V DC, enhancing common-mode interference resistance.

Wide-Range Input and Temperature Adaptation

• Input voltage range: 18–32V DC, adapting to voltage fluctuations in industrial sites.
• Operating temperature range: -40°C to +85°C, using industrial-grade components and heat dissipation design to ensure stable operation in extreme environments.

III. Internal Circuit Composition

Input Protection Circuit

• Reverse polarity protection diodes
• TVS (Transient Voltage Suppressor)
• Fuses/current limiters

PWM Control Circuit

• Control IC (e.g., UC3844/45 series)
• Drive transformer/optocoupler isolator
• Switching power MOSFET/IGBT

Output Regulation Circuit

• Voltage sampling network
• Error amplifier
• Compensation network

Protection Circuit

• Overcurrent Protection (OCP)
• Overvoltage Protection (OVP)
• Overtemperature Protection (OTP)
• Short Circuit Protection (SCP)

Auxiliary Power Circuit

• Provides bias voltage for the control circuit
• Standby power supply maintains low-power operation

IV. Application Scenarios and Advantages

Industrial Automation

• Supplies stable power to core devices such as PLCs, DCS, and controllers, ensuring uninterrupted operation of the control system.
• Redundancy configuration is suitable for critical processes (e.g., chemical, power, oil and gas).

Distributed Control Systems

• Supports multi-outputs to power I/O modules, communication interfaces, and sensors simultaneously, simplifying system design.
• Isolation design avoids interference between different modules.

Harsh Environment Applications

• Wide-temperature design adapts to extreme temperature environments such as deserts and polar regions.
• Vibration resistance (compliant with IEC 60068-2 standards) is suitable for mobile equipment or high-vibration scenarios.

Safety-Critical Systems

• Meets SIL 2/3 safety certifications (some models) and can be used in Safety Instrumented Systems (SIS).
• Fault early warning and diagnosis functions (e.g., output voltage monitoring, temperature alarms).

V. Technical Parameters Comparison

VI. Fault Diagnosis and Maintenance

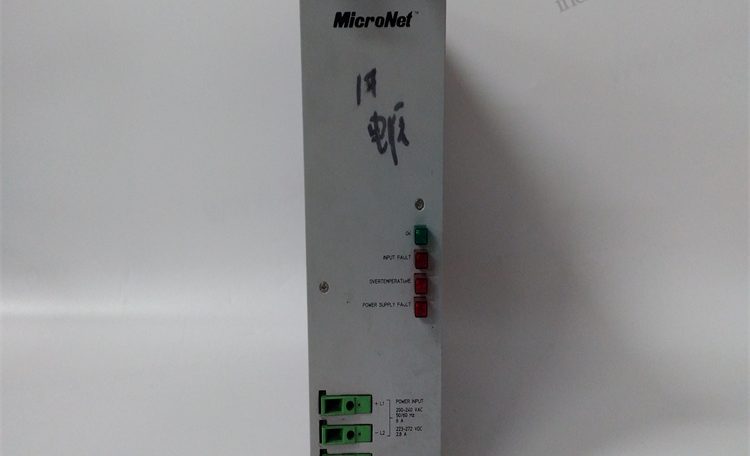

LED Status Indication

• Green: Normal power operation
• Red: Overvoltage/overcurrent/overtemperature fault
• Flashing: Abnormal output voltage

Remote Monitoring

• Uploads status data (e.g., output voltage, temperature, fault codes) via MODBUS or other communication protocols.
• Supports status synchronization and fault switching for redundant power supplies.

Modular Design

• Supports hot-swappable replacement without shutdown for maintenance.
• Enables rapid system recovery through spare modules.
