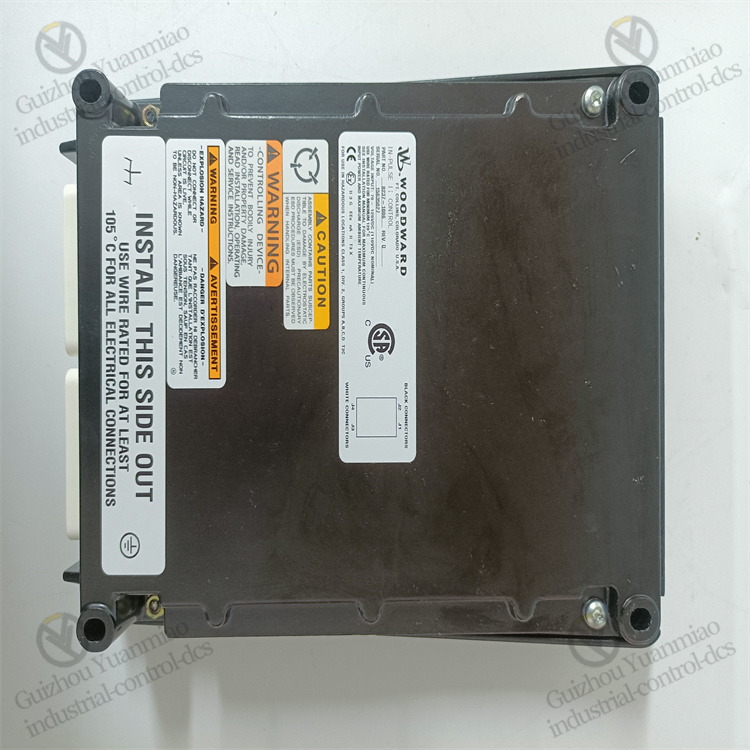

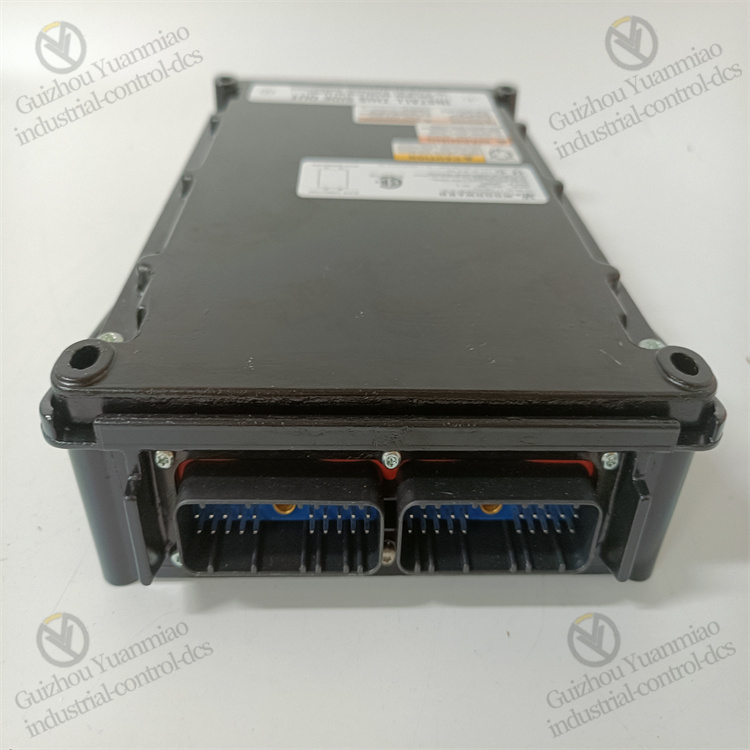

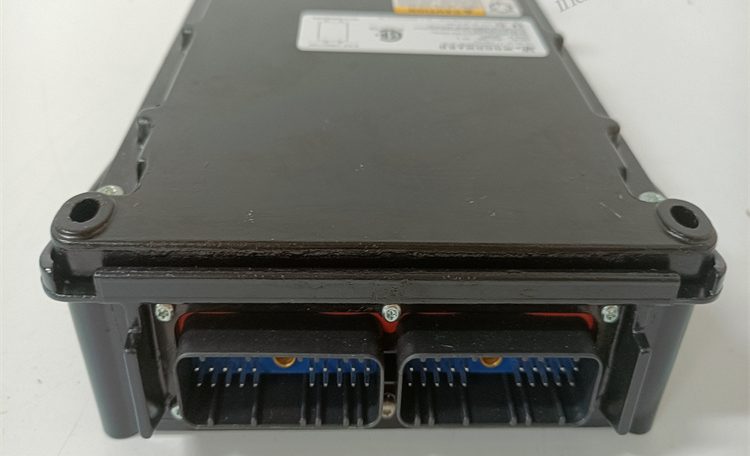

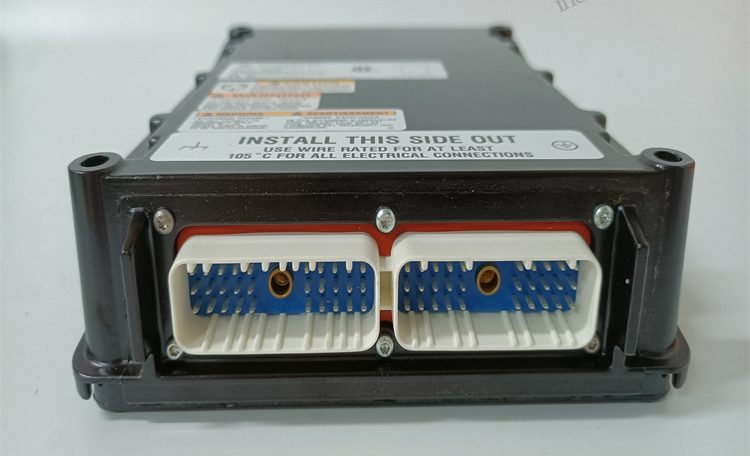

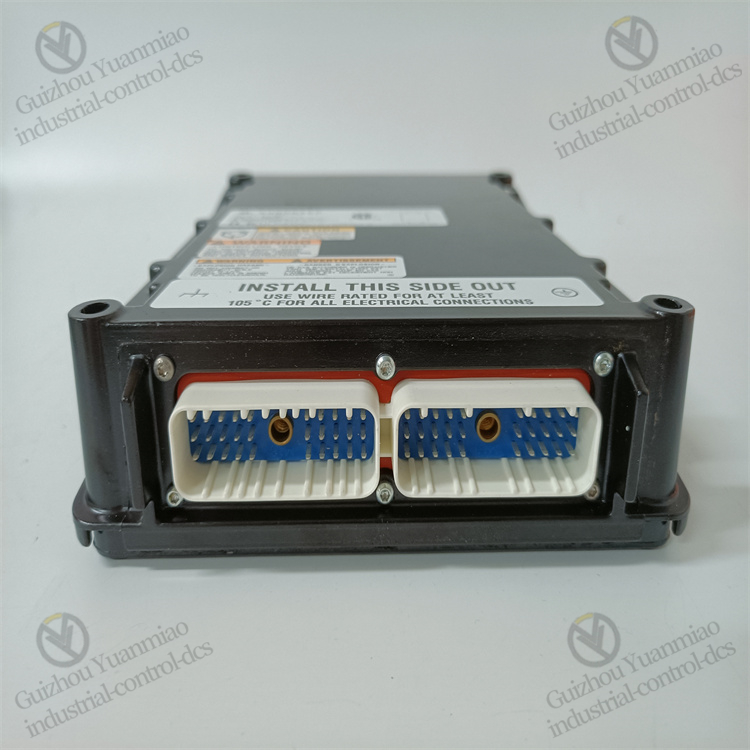

Woodward 8237-1006 I/O Expansion Module
Woodward 8237-1006 is an industrial-grade I/O expansion module belonging to the MicroNet series, specifically designed for turbine control, power generation systems, and other industrial automation applications. The detailed information is as follows:
1. Basic Parameters
| Parameter | Details |
|---|---|
| Input Voltage | 24VDC (wide range 18-32VDC), redundant power design, supporting hot-swap. |
| Power Consumption | <10W |
| Operating Temperature | -40°C to +85°C |
| Protection Level | IP65 (dustproof and splashproof) |
| Dimensions | 110mm × 110mm × 55mm |
| Weight | Approximately 1.2kg |
| Communication Interfaces | Supports Modbus RTU/TCP, Ethernet/IP, and can communicate with master controllers (e.g., 5501-470). |
2. Channel Configuration
| Channel Type | Quantity | Characteristics |
|---|---|---|
| Digital Input | 16 channels | Compatible with dry/wet contacts, supports 24VDC signals, response time <1ms. |
| Digital Output | 16 channels | Relay output (2A/point) or transistor output (0.5A/point), supporting fail-safe mode. |
| Analog Input | 8 channels | 16-bit resolution, configurable for 4-20mA/0-10V, temperature drift <50ppm/°C. |
| Analog Output | 4 channels | 12-bit resolution, configurable for 4-20mA/0-10V, output accuracy ±0.1%. |
| Pulse Input | 2 channels | High-speed counters (up to 100kHz) for precise rotation speed or flow measurement. |
3. Product Features
High Reliability
- Industrial-grade design, vibration-resistant (10g) and shock-resistant (50g), compliant with IEC 60068 standards.
- Built-in surge protection (6kV) and ESD protection (±15kV) for adaptation to harsh environments.
- Supports online replacement (hot-swap) without shutdown for maintenance.
Flexible Configuration
- All I/O channels can be custom-configured via software (e.g., Woodward ProAct).
- Modular design allows cascading expansion of up to 8 I/O modules to meet complex system requirements.
High-Precision Signal Processing
- Analog input supports cold junction compensation (for temperature sensor input) to ensure measurement accuracy.
- Digital output supports PWM (Pulse Width Modulation) function, suitable for proportional control applications.
Safety Mechanisms
- Supports fail-safe outputs (e.g., automatic valve closure during power failure).
- Built-in watchdog timer to ensure stable system operation.
4. Working Principle
As an expansion module, the 8237-1006 connects to master controllers (e.g., 8200-1300 controller) via a communication bus to achieve data exchange:
- Signal Acquisition: Collects analog/digital signals from field sensors (temperature, pressure, rotation speed, etc.).
- Data Transmission: Transmits processed signals to the master controller via Modbus or other protocols.
- Command Execution: Receives control commands from the master controller to drive actuators (valves, motors, etc.).
5. Application Scenarios
- Power Generation Systems: Monitors temperature, pressure, and vibration parameters of steam turbines/generators, controls regulating valve openings.
- Petrochemical Industry: Achieves interlocking control of pump groups and compressors, collects flow/pressure signals.
- Marine Power: Controls fuel supply of propulsion systems and rotation speed of cooling water pumps.
- Industrial Automation: Integrates into production lines to achieve collaborative control of multiple devices.
6. Technical Comparison
| Parameter | Woodward 8237-1006 | Similar Modules |
|---|---|---|
| Operating Temperature Range | -40°C to +85°C | Typically -20°C to +70°C |
| Analog Input Resolution | 16-bit | 12-14-bit |
| Digital Output Types | Relay + transistor optional | Single type |
| Vibration Resistance | 10g (IEC 60068-2-6) | Below 5g |
| Hot-Swap Support | Yes | Not supported by some models |
7. Fault Diagnosis and Maintenance
- LED Indicators: Each I/O channel is equipped with status indicators, and module-level indicators show power and communication status.
- Remote Monitoring: Reads fault codes (e.g., overvoltage, open circuit) via the master controller or host computer software.
- Configuration Backup: Supports automatic saving of configuration parameters, eliminating the need for reprogramming after module replacement.
