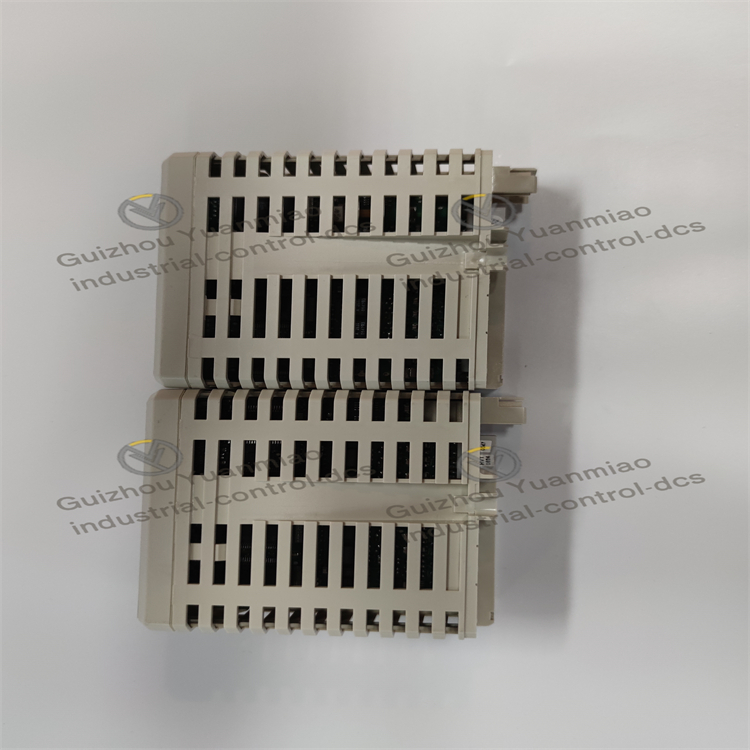

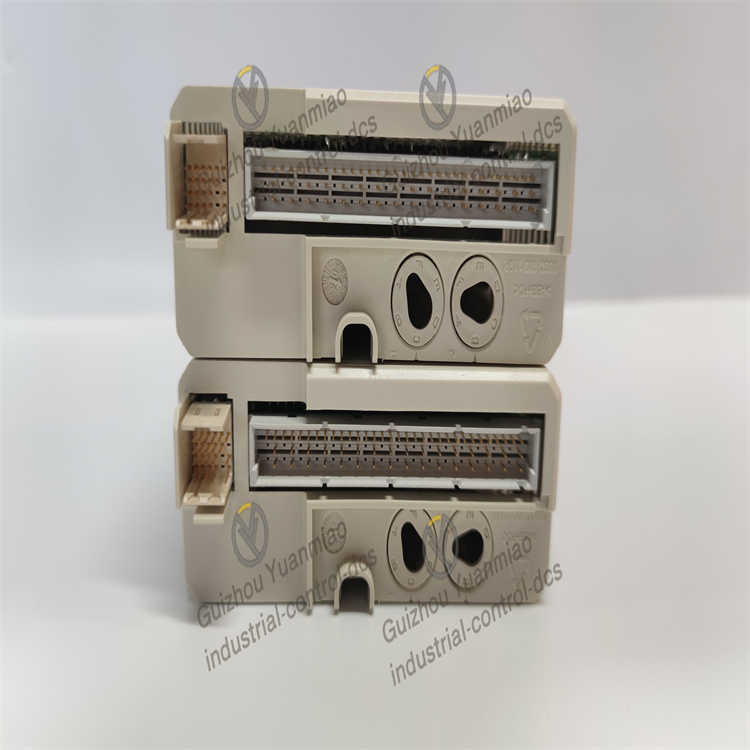

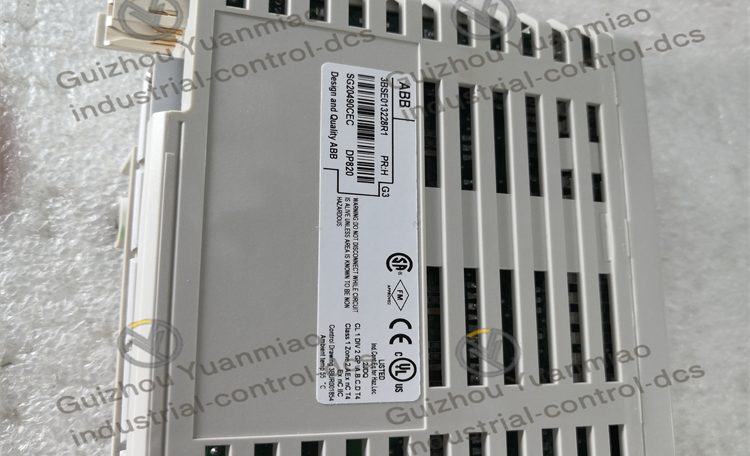

ABB DP820 two-channel pulse counting module

Functional characteristics
Dual-channel design: It features two independent channels, each of which contains counters and registers for position/length and speed/frequency measurement, enabling simultaneous pulse counting and frequency measurement.
Multiple interface compatibility: It provides RS-422, +5V, +12V, +24V and 13mA interfaces, which can connect various types of pulse transmitters and have a wide range of applications.
High-precision measurement: Pulse counting is achieved through the accumulation of a 29-bit bidirectional counter, enabling precise measurement of length or position. The frequency measurement range is 0.25Hz – 1.5MHz, which can meet the speed measurement requirements in different scenarios.

Technical parameters
Signal specification: 24V DC (Operating voltage range: 12-32V DC).
Number of channels: 2.
Rated insulation voltage: 50V.

Application scenarios: It is widely used in the field of industrial automation, such as in CNC machine tools, robot control systems, and automated production lines. It can be used to measure parameters such as motor speed, mechanical displacement, and object movement speed, providing accurate data support for control systems to achieve precise position control, speed regulation, and process monitoring functions.
Usage suggestion: It can be used in conjunction with the module terminal units TU810V1, TU812V1, TU814V1, TU830V1, and TU833 to meet different application requirements and system configurations.
