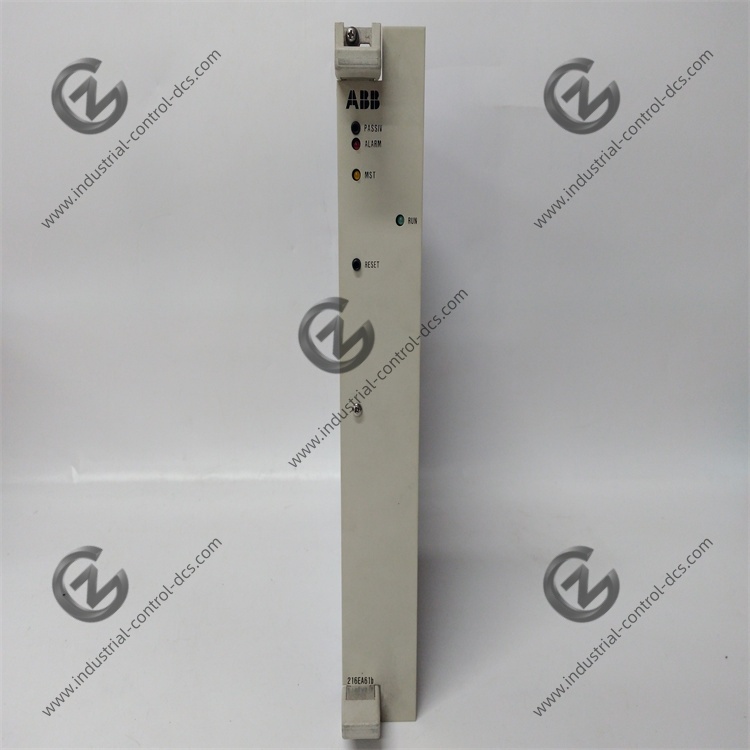

### 1. Core Functions This multi-channel analog output module converts digital signals into standard industrial analog signals. It drives control valves, variable frequency drives, field actuators, smart instruments and other equipment to realize process loop regulation and remote control. ### 2. Electrical & Channel Parameters – Number of Channels: 8 independent analog output channels – Output Signal Type: Configurable – Current: 4–20 mA / 0–20 mA – Voltage: 0–10 V – Resolution: 12-bit – Accuracy: Typical ±0.1% FS (Full Scale) – Load Capacity – Current Output: Max. 500 Ω – Voltage Output: Min. 10 kΩ – Electrical Isolation: 500 VAC isolation between channel group and backplane; no isolation between individual channels – Power Supply: Powered by rack backplane – Power Consumption: Typical 3.8 W ### 3. Hardware & Physical Parameters – Form Factor: Standard S100 series module, card cage mounting – Weight: Approx. 0.36 kg – Protection Class: IP20 (For cabinet installation only) ### 4. Environmental Parameters – Operating Temperature: -20 ℃ ~ +70 ℃ – Storage Temperature: -40 ℃ ~ +85 ℃ – Relative Humidity: 5% ~ 95%, non-condensing
