Description

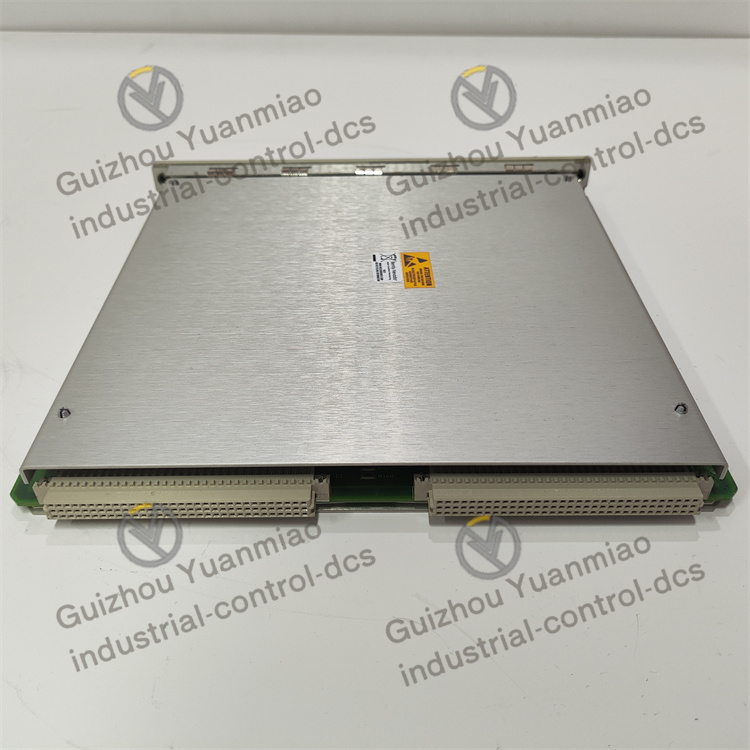

Bently  3500/94M  VGA display monitor

Component composition: It is composed of a 3500/94M VGA display module, related I/O modules and a VGA display monitor. The display monitor can be installed at a distance of up to 6.1m (20ft) from the 3500 rack via standard cables. If a supported keyboard video monitor (KVM) extender is used, it can be installed at a distance of up to 10km (6.2 miles) from the rack.

Functional features:
Rich data display: It can show all 3500 mechanical protection system information, including system event list, alarm event list, all module and channel data, current alarm data (quick view), and nine custom display options. All information can be accessed through the touch screen.
Custom screens: Up to nine custom screens can be configured through the 3500 rack configuration software. By default, one bar chart screen shows all the vibration measurement values after 1x filtering, and the other shows the gap value of the proximity sensor. Custom screens can be grouped by groups, and users can organize system data onto any page of the custom screen.

Multi-rack viewing: The optional 3500/94M display router box allows viewing up to four independent 3500 racks on a single display, but each rack must be viewed separately. The address and alarm status of each rack will be displayed in the upper right corner of the screen. The display router box must be located within 6m (20ft) of each 3500 rack connected.

Other features:
Screen specifications: It usually adopts a 10.4-inch color VGA display screen with a touch screen, supporting multiple languages, which is convenient for users to perform interactive data visualization operations.
Network connection: It has network connection functionality, supports remote access, and has passed ATEX/IECEx certification, making it suitable for use in hazardous areas.
Power consumption and temperature: The maximum power consumption is 4.6 watts, and the operating temperature range is -22 °F to 149°F (-20°C to 65°C).
Port configuration: It features an RS232 port (I/O) for touch controller data, and the front panel port provides 24V DC power output, VGA signal output, and touch command input.
