Product Description

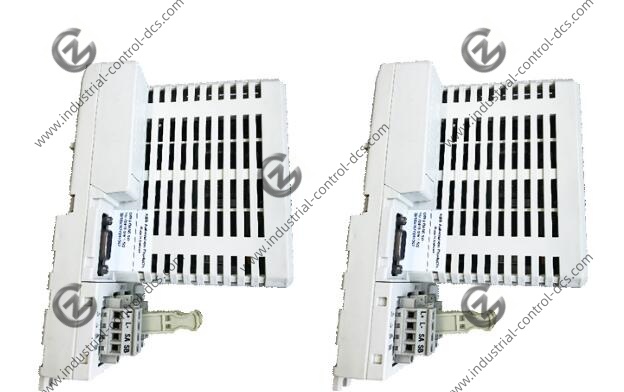

This module is a dedicated FF HSE gateway for the ABB AC800M/800xA DCS system. It serves as a data bridge between the controller and the FOUNDATION Fieldbus HSE industrial Ethernet fieldbus. It can connect FF field instruments including the NGC8206 gas chromatograph, custody transfer flowmeter and calorific value analyzer, and upload metering process data such as gas composition, flow rate and pressure in real time.
- Redundant architecture: Dual-module hot standby enables bumpless automatic switching upon bus link faults to ensure uninterrupted custody transfer metering data transmission.
- Wide compatibility: Compatible with a full range of FF bus devices such as chromatographs, turbine flowmeters, online calorific value analyzers and pressure transmitters.
- Flexible expansion: Modular plug-and-play design allows adding or removing bus segments without modifying the controller backplane.
- Industrial durability: Wide operating temperature range, anti-corrosion property and strong electromagnetic interference resistance, suitable for long-term non-stop operation in oil, gas and chemical industries.
Application Scenarios
- Natural gas industry: DCS systems for long-distance pipeline distribution stations, underground gas storage facilities and LNG receiving terminals. It connects with the NGC8206 chromatograph to upload heating value and composition data for custody transfer metering.
- Chemical & refining industry: Process bus data acquisition for refineries and coal chemical plants to realize plant interlock control and data monitoring of online analytical instruments.
- Power energy plants: Gas-fired power plants and combined heat and power (CHP) units for real-time gas quality monitoring and combustion optimization regulation.
- General process industries: Large DCS automatic control systems equipped with FF fieldbus in water treatment, metallurgy, pharmaceutical and other sectors.
