Description

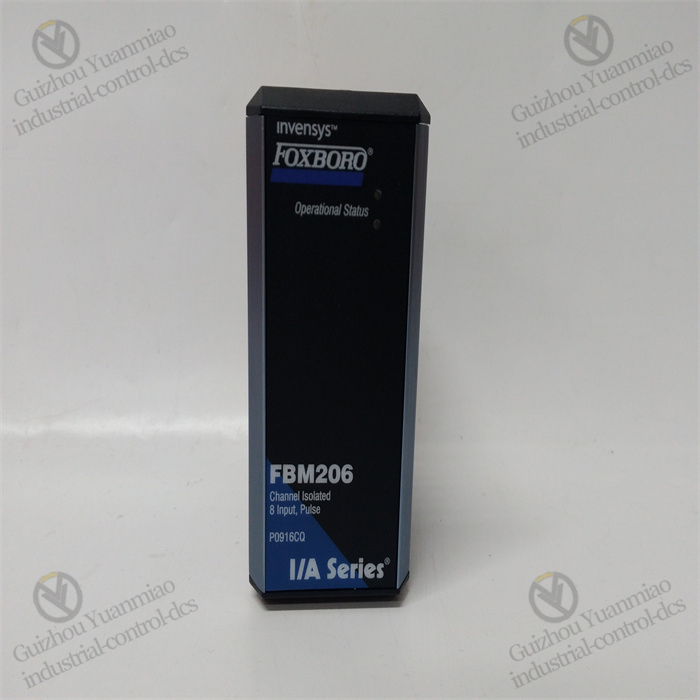

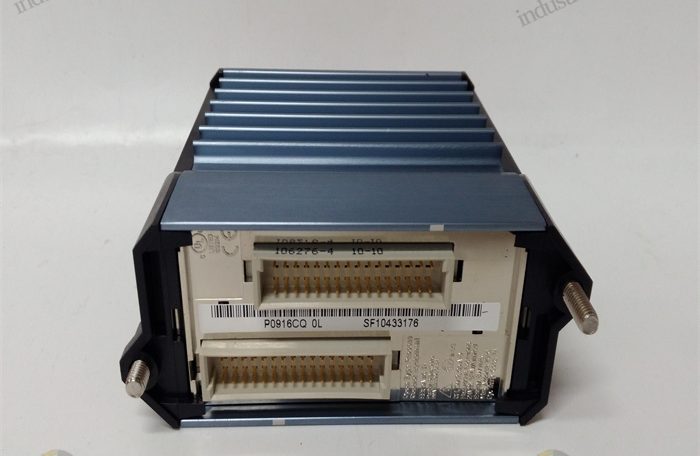

FOXBORO  FBM206  Digital Input/Output (DI/DO) module

• Mixed Channel Design: It usually integrates multiple independent digital input (DI) channels and digital output (DO) channels (the specific number varies slightly by model, commonly such as 8-channel DI + 8-channel DO), which can meet the needs of on-site equipment status monitoring and control output at the same time.
• Signal Type Adaptation:
  • DI Channels: Receive switch signals from the field, such as the on-off status of limit switches, buttons, relay contacts, proximity switches, etc. (usually support dry contact or wet contact signals, with voltage ranges mostly 24V DC, 125V DC, or 220V AC, etc.).
  • DO Channels: Output switch signals to drive on-site actuators, such as relays, solenoid valves, contactors, etc. (the output type may be relay output or transistor output, supporting corresponding voltage/current loads).
• Electrical Isolation: All channels, the internal circuit of the module, and between channels adopt photoelectric isolation or magnetic isolation technology (isolation voltage is usually ≥2500V AC), which effectively avoids ground loop interference, electromagnetic interference (EMI), and surge impact, ensuring the stability of signal transmission.
• Fast Response: It has a high signal response speed (DI input response time is usually ≤1ms, DO output switching time is ≤10ms), which can capture the state changes of on-site equipment in real-time and quickly execute control commands.

• Input/Output Protection:
  • DI Channels: Built-in overvoltage and overcurrent protection circuits, which can withstand on-site surge voltages (such as ±250V transient voltage) to prevent module damage caused by external wrong wiring.
  • DO Channels: Support short-circuit protection. When a short circuit occurs at the output end, the module can automatically limit current or fuse for protection to avoid burning the channel.
• Environmental Adaptability: Adopt industrial-grade design, with an operating temperature range usually -40℃ ~ +70℃ and a humidity range of 5% ~ 95% (non-condensing), which can adapt to harsh industrial environments such as dust, vibration, and electromagnetic interference.
• Status Monitoring and Diagnosis: The module is equipped with LED indicators, which can display the working status of each channel in real-time (such as “on/off” for DI channels, “output valid/invalid” for DO channels) and the overall operating status of the module (such as normal power supply and communication), facilitating quick troubleshooting.
• System Integration: It supports communication with distributed control systems (DCS) such as FOXBORO I/A Series through the system bus, is compatible with standard industrial protocols, can realize remote configuration, data upload, and control command issuance, and supports redundant design to ensure communication reliability.

• Manufacturing Industry: Used for equipment status monitoring (such as motor start-stop status, conveyor limit switch signals) and control (such as solenoid valve action, indicator light switching) in production lines.
• Petrochemical Industry: Monitor the switch status of pumps and valves (DI), and control the opening and closing of valves and the start-stop of pumps (DO) to ensure the orderly progress of processes such as pipeline transportation and reactor feeding.
• Power Industry: Monitor the opening and closing status of circuit breakers and disconnectors (DI), control indicators and alarm devices in switch cabinets (DO), and assist in the safe operation of power grid equipment.
• Water Treatment Industry: Detect water tank level switch signals (DI), control the start-stop of drainage pumps and valves (DO), and realize automatic control of the water treatment process.
• Metallurgy and Mining Industry: Used for the collection of interlock protection signals (DI) and equipment start-stop control (DO) of rolling mills, crushers, and other equipment to ensure production safety.
