Description

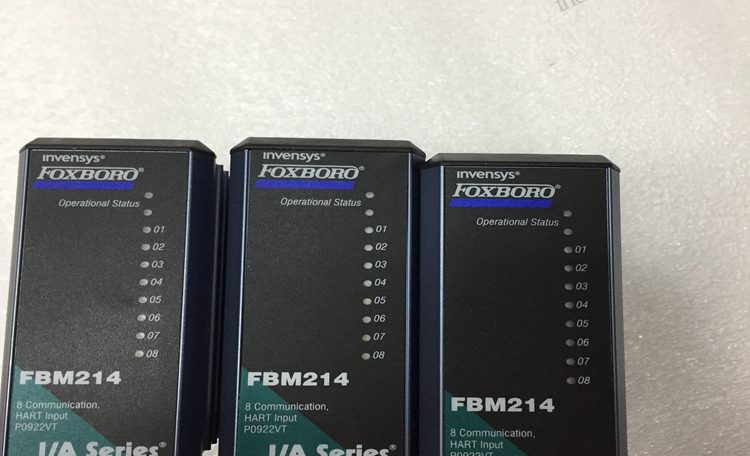

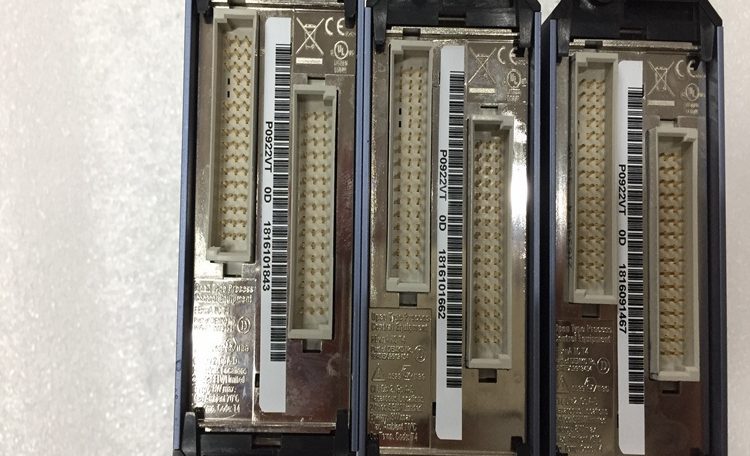

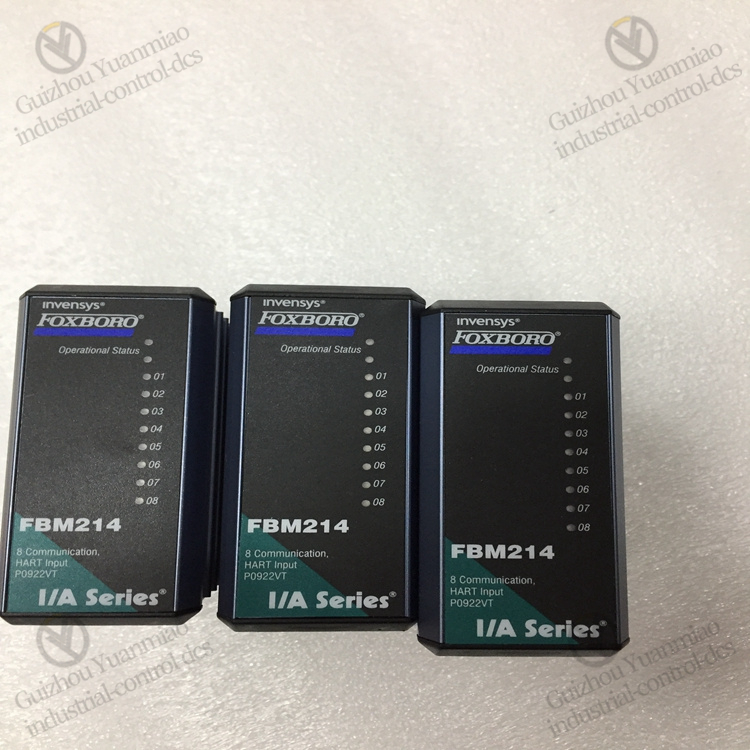

Foxboro FBM214 HART Communication Input interface module

1. Oil and Gas Industry
   Wellhead and Pipeline Monitoring: In wellhead devices and transmission pipelines for oil and gas extraction, a large number of HART protocol pressure transmitters, temperature transmitters, and other devices are used. The FBM214 can access signals from these devices, collect key parameters such as wellhead pressure, pipeline medium temperature, and flow in real-time, and realize remote configuration (such as range modification, unit switching) and diagnosis (such as device fault alarm, zero drift prompt) of transmitters through the HART protocol, ensuring the safety and stability of the extraction and transmission processes.
   Tank Farm Management: Parameters such as liquid level, pressure, and temperature of storage tanks are monitored by HART intelligent instruments. The FBM214 centrally transmits these data to the control system, facilitating operators to grasp the tank status in real-time. At the same time, it can remotely calibrate instruments, reduce on-site maintenance workload, and improve the management efficiency of the tank farm.
2. Chemical and Pharmaceutical Industry
   Reactor Process Control: In processes such as chemical synthesis and pharmaceutical reactions, parameters such as pressure, temperature, and pH value in the reactor are monitored by HART protocol intelligent sensors. The FBM214 can accurately collect these parameters and upload them to the DCS system, ensuring that the reaction conditions are stable within the process requirements. In addition, detailed diagnostic information of sensors (such as electrode contamination degree) can be obtained through the HART protocol, facilitating timely maintenance, avoiding product quality problems caused by sensor faults, and meeting strict standards such as GMP.
   Material Conveying and Proportioning Control: In material conveying pipelines, signals from HART flowmeters and concentration transmitters are accessed to the system through the FBM214, realizing real-time monitoring and precise adjustment of material flow and concentration, ensuring that the material proportion meets the process requirements, and improving production efficiency and product consistency.

1. Power Industry
   Power Plant Thermal System Monitoring: In thermal systems such as boilers and steam turbines in thermal power plants, signals from HART protocol pressure transmitters (such as superheated steam pressure), temperature transmitters (such as cylinder temperature), and liquid level transmitters (such as drum liquid level) can be accessed to the control system through the FBM214. The module can not only transmit measured values but also obtain the working status of devices (such as transmitter supply voltage, self-diagnosis results), helping operation and maintenance personnel detect potential faults in advance and reduce unplanned shutdowns.
   Water Treatment System Management: In the water treatment links of power plants (such as boiler make-up water, circulating water), HART protocol pH meters, conductivity meters, and other devices are used to monitor water quality parameters. The FBM214 can centrally collect these data to ensure that the water quality meets the standards. At the same time, it can remotely adjust instrument parameters through the HART protocol, ensuring the stable operation of the water treatment system and avoiding the impact of water quality problems on the safe operation of generator sets.
2. Municipal and Environmental Protection Industry
   Wastewater Treatment Plant Operation: In the wastewater treatment process, parameters such as sedimentation tank liquid level, aeration tank dissolved oxygen, and effluent pH value are monitored by HART intelligent instruments. The FBM214 transmits these data to the control system in real-time, realizing precise regulation of the wastewater treatment process (such as adjusting aeration volume according to dissolved oxygen content). At the same time, the instrument status can be remotely diagnosed through the HART protocol (such as prompt for aging of dissolved oxygen sensor diaphragm), ensuring the accuracy of monitoring data and guaranteeing the up-to-standard discharge of wastewater.
   Urban Water Supply System: Pipeline network pressure, water plant pool liquid level, and other parameters in the urban water supply network are monitored by HART pressure transmitters and liquid level transmitters. The FBM214 transmits the data to the dispatch center, facilitating timely adjustment of water supply pressure, optimization of water resource allocation, and improvement of the stability and economy of the water supply system.

1. Manufacturing Industry (Food, Beverage, Automobile, etc.)
   Production Line Process Parameter Monitoring: In processes such as sterilization and fermentation in food and beverage production, HART temperature transmitters and pressure transmitters are used to monitor key process parameters. The FBM214 ensures that these data are uploaded to the control system in real-time, ensuring that the production process meets hygiene standards. In painting, welding, and other workshops of automobile manufacturing, signals from HART protocol gas concentration sensors (such as harmful gas concentration) are accessed through the module, realizing safety monitoring of the workshop environment and protecting the health of operators.
   Equipment Status Monitoring: Large equipment in manufacturing (such as compressors, pump sets) is often equipped with HART vibration transmitters and temperature sensors. The FBM214 collects vibration and temperature data of the equipment, and combines with diagnostic information from the HART protocol (such as sensor sensitivity attenuation) to realize predictive maintenance of the equipment and reduce equipment downtime.
2. Metallurgy and Mining Industry
   Smelting Process Control: In equipment such as blast furnaces and converters for iron and steel, non-ferrous metal smelting, signals from HART protocol temperature transmitters (such as furnace temperature) and pressure transmitters (such as furnace pressure) are transmitted to the control system through the FBM214, ensuring the stability of smelting temperature, pressure, and other parameters, and improving smelting efficiency and product quality.
   Mining Equipment Monitoring: In the ventilation system and drainage system of mines, HART flowmeters and pressure transmitters monitor parameters such as air volume and water pressure. The FBM214 feeds the data back to the control center in real-time, ensuring the safety of the mine production environment and avoiding production interruption caused by equipment faults.
