Description

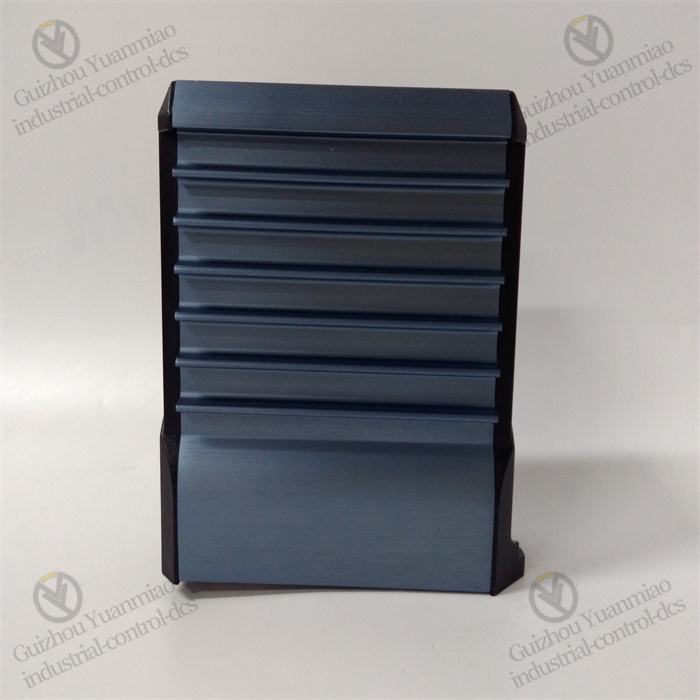

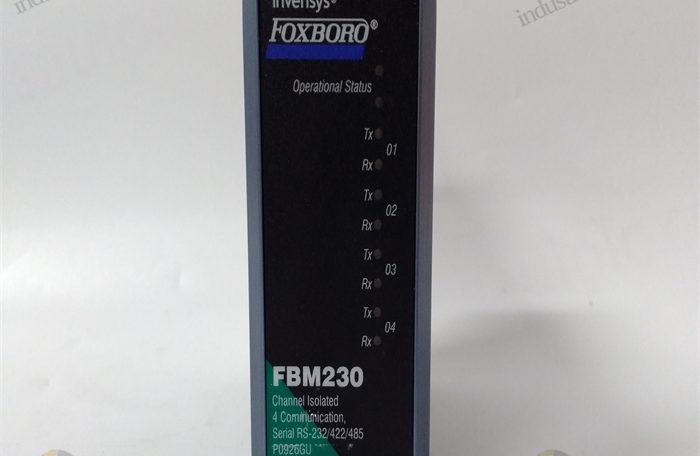

Foxboro FBM230 Field Equipment System Integrator (FDSI) module

Main Features

• Flexible Communication Interfaces: Four ports can be configured via software, supporting RS-232, RS-422, or RS-485 communication interface standards, which can flexibly adapt to the communication needs of various field devices.
• Strong Connection Capability: It can connect up to 2000 DCI blocks and communicate through up to 64 RS-485 or up to 4 directly connected RS-232 or RS-422, meeting the data integration requirements of a large number of field devices in large-scale industrial systems.
• Rich Support for Data Types: Supports various data types such as analog input/output values (integers or IEEE single-precision floating-point numbers), single digital input/output values, multiple (packaged) digital input/output values, etc.
• Fast Access Frequency: The access frequency of the control station to FBM230 data can be as fast as 500ms, enabling timely acquisition and processing of data.
• Strong Environmental Adaptability: It meets the G3-level (severe) environmental standards and can work stably in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, ensuring the accuracy and reliability of data transmission.

Technical Parameters

• Input Voltage Range: 9 – 32VDC.
• Input Current: 45mA.
• Operating Temperature Range: -40℃ to 85℃.
• Storage Temperature Range: -40℃ to 85℃.
• Dimensions: 120mm × 80mm × 40mm.
• Weight: Approximately 0.5 kg.

Application Scenarios

• Process Control Systems: In industries such as chemical plants and oil refineries, it can be used to monitor and control complex production processes, such as real-time monitoring and control of parameters like temperature and pressure of reaction kettles, ensuring the stability and safety of the production process.
• Power Industry: It can be used to monitor the power grid status, collect and monitor parameters such as switch status, voltage, and current of substations, and also control generators, switchgear, and power distribution systems, ensuring the normal operation of the power system.
• Manufacturing Industry: It can be integrated into manufacturing automation systems to monitor and control the operating status of production line equipment, detect and handle equipment faults in a timely manner, and improve production efficiency and product quality.
• Water Treatment Field: It can be used to monitor and control equipment in water treatment and wastewater treatment processes, such as valves, pumps, and water tanks, and perform corresponding control operations according to water quality parameters to ensure the water treatment effect.
• Other Fields: It is also widely used in fields such as pharmaceuticals and building automation. In the pharmaceutical industry, it is used to control equipment in the production process to ensure drug quality; in building management systems, it is used to control air conditioning, lighting, and security systems to realize intelligent management of buildings.
