Description

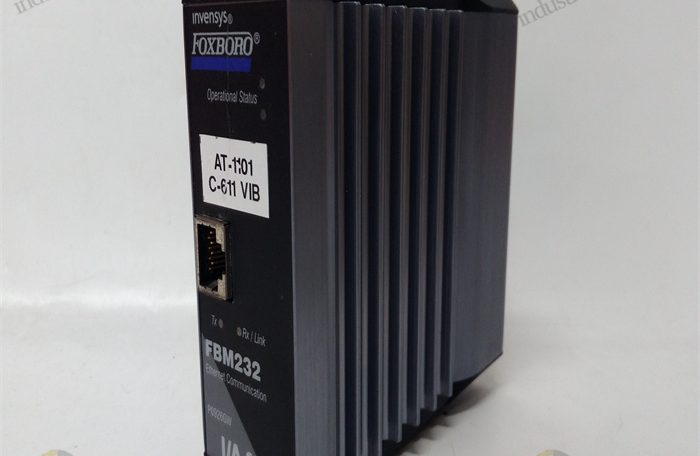

Foxboro FBM232 Field Equipment System Integrator (FDSI) module

Functional Features

• High Communication Rate: Adopts Ethernet communication, with a network transmission rate of 10 Mbps or 100 Mbps, enabling fast data transmission.
• Strong Connection Capability: Can be connected to an Ethernet switch or hub, communicating with up to 64 external devices, and supporting up to 2000 DCI block connections.
• Rich Protocol Support: I/O software drivers can be downloaded from the available protocol library, supporting multiple communication protocols such as Modbus TCP/IP, EtherNet/IP, etc., and can communicate well with different types of devices.
• Flexible and Convenient Configuration: XML-based port and device configuration files can be set through the FDSI configurator. The port configurator can easily set communication parameters for each port, such as Dynamic Host Configuration Protocol (DHCP), IP address, etc. It can also configure device-specific and point-specific items.
• Good Environmental Adaptability: Meets the G3-level (severe) environmental standards and can work stably in harsh industrial environments.

Technical Parameters

• Communication Type: Ethernet.
• Communication Protocol: UDP/IP or TCP/IP.
• Input Voltage Range: 24V DC ±5%, -10%.
• Heat Dissipation: Maximum 7W.
• Operating Temperature Range: Usually -40°C to +85°C.
• Protection Level: Generally different levels such as IP40 or IP67.

Application Cases

• Petrochemical Field: In large petrochemical enterprises, the FBM232 module can be used to connect various field devices. For example, connecting it to liquid level sensors and temperature sensors in the oil tank area, quickly collecting liquid level and temperature data of the oil tanks through Ethernet using the Modbus TCP/IP protocol, and transmitting them to the DCS control system in real-time. Operators can monitor the status of the oil tanks in real-time in the control room to ensure storage safety. At the same time, for reaction kettles in chemical production, the FBM232 can be connected to pressure sensors, flow sensors, etc., to upload data such as pressure and material flow during the reaction process in a timely manner, so that the control system can perform precise regulation according to the set parameters, ensuring the stability of the reaction and product quality.
• Power Industry: In power plants, the FBM232 module can play an important role. For example, in the boiler monitoring system, it can be connected to various sensors such as temperature, pressure, and oxygen content, quickly transmitting these key parameters to the control system to realize real-time monitoring and optimal control of the boiler’s operating status. In substations, it can be connected to switch status sensors, current and voltage transformers, etc., and upload data such as switch status, voltage, and current to the power monitoring system through the EtherNet/IP protocol, facilitating staff to grasp the operation status of the power grid in real-time, detect and handle faults in a timely manner, and ensure the reliable power supply of the power system.

• Manufacturing Industry: In automobile production lines, the FBM232 module can be used to connect various equipment on the production line. For example, connecting it to the control system of robots to obtain real-time data such as the position and posture of the robots, ensuring that the robots operate accurately according to the predetermined program; at the same time, connecting various testing equipment on the production line, such as size detectors and visual inspection equipment, to quickly transmit the testing data to the upper computer system, realizing real-time monitoring and analysis of product quality. Once quality problems are found, the production line is notified to adjust in a timely manner, improving the qualified rate of products.
• Water Treatment Field: In sewage treatment plants, the FBM232 can be connected to dissolved oxygen sensors, sludge concentration sensors in aeration tanks, as well as water pumps, valves and other equipment. By collecting data such as dissolved oxygen and sludge concentration and transmitting them to the control system, the rotation speed of water pumps, the opening degree of valves, and the aeration intensity are automatically adjusted according to water quality conditions, realizing automatic control of the sewage treatment process and improving the efficiency and quality of sewage treatment. In waterworks, it can also be used to connect water level sensors, water quality monitoring equipment at water sources, as well as various dosing equipment and filtration equipment in the water treatment process, ensuring the stable production and supply of tap water.
• Pharmaceutical Industry: In the drug production process, the FBM232 module can be used to connect key equipment such as freeze dryers and filling machines. Connecting it to the temperature and pressure sensors of the freeze dryer to collect parameters during the freeze-drying process in real-time ensures precise control of the freeze-drying process and guarantees drug quality. For filling machines, it can be connected to liquid level sensors, weight sensors, etc., to monitor the filling volume in real-time, transmit the data to the control system for analysis and adjustment, realize precise filling, and avoid drug waste and quality problems.
