Description

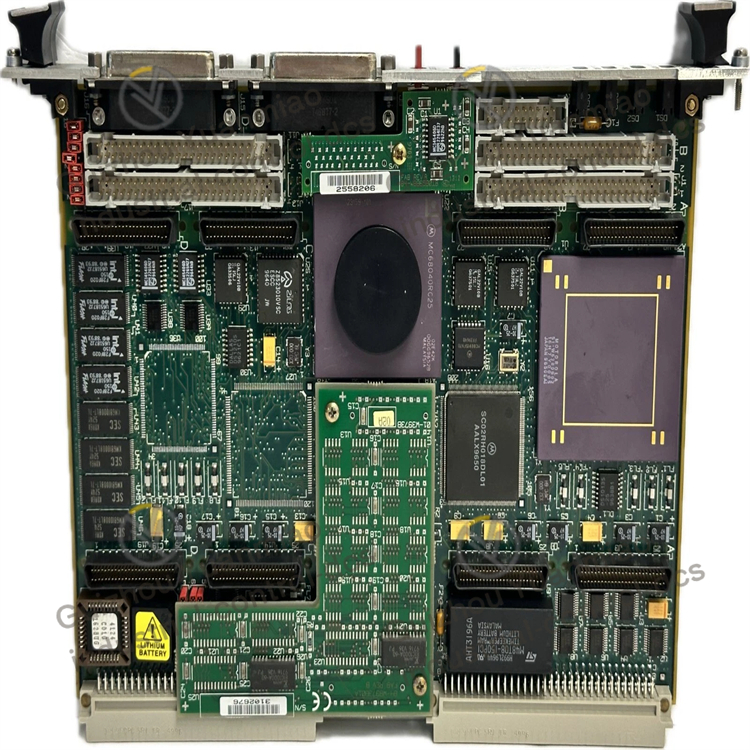

Motorola  MVME162-020A  industrial control card

Processor architecture: Based on the MC68040 enhanced 32-bit microprocessor, the main frequency can be selected as 25MHz or 32MHz. Equipped with 8KB cache, MMU (Memory Management Unit) and FPU (Floating-point Unit), it can meet the requirements of complex algorithms and real-time tasks.
Memory configuration: Standard 4MB shared DRAM, supports expansion up to 16MB, and some models can be increased to 64MB by expanding the mezzanine. It is also equipped with 512KB of SRAM with a spare battery to ensure that data is not lost in case of power failure.
Storage and interface: Built-in 1MB Flash memory, some models have 2MB, supports EPROM and Flash expansion. It provides 4 serial communication ports, including EIA-232 and EIA-422/485 standards, as well as 4 IndustryPack® interfaces and an optional SCSI bus interface, which can be adapted to a variety of industrial protocols.

Bus and expandability: Compatible with the VME bus standard, it supports A32/D64 master/slave interfaces, featuring four levels of requesters, seven levels of interrupters and interrupt handlers. Functional modules can be added through expansion slots, offering strong expandability.
Environmental adaptability: The operating temperature range is -40 °C to + 85°C, the relative humidity is 5% to 95% (without condensation), and the seismic performance complies with the MIL-STD-810 standard, capable of adapting to harsh industrial environments.
Power supply and power consumption: Supports wide-range DC input of + 5V and ±12V, with a typical power consumption of 25W, which can meet the requirements of distributed control architecture.

This series of controllers can achieve a sampling accuracy of ±1ms in the power monitoring system and are suitable for scenarios with strict real-time requirements. It also supports up to 4 single-width or 2 dual-width IndustryPack® modules. Users can flexibly configure I/O, control or interface functions according to their needs, saving overall investment.
