Description

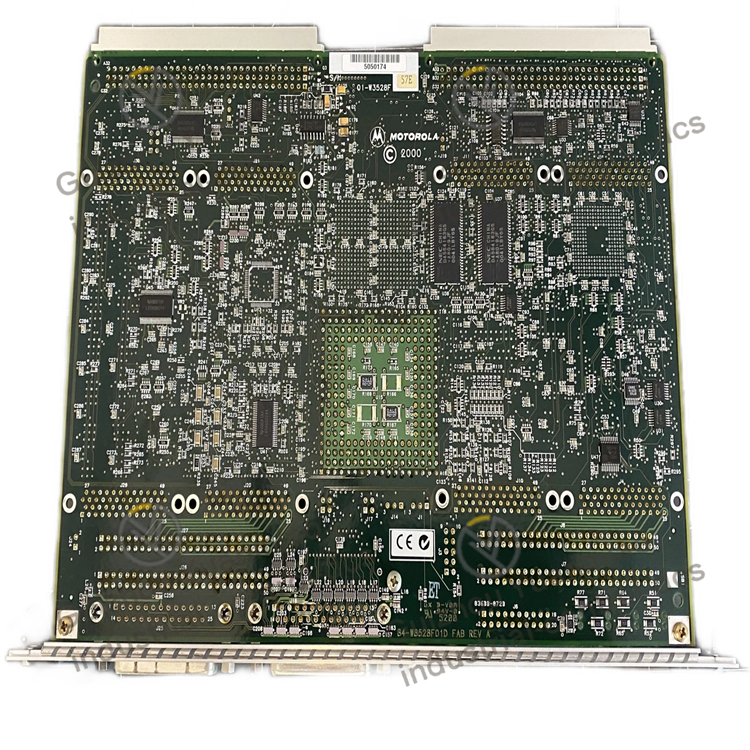

MOTOROLA  MVME162P-244L  embedded system single-board computer

Processor: It adopts the MC68040 enhanced 32-bit microprocessor, with a main frequency available in either 25MHz or 32MHz. Equipped with an 8KB cache, MMU (Memory Management Unit) and FPU (Floating-point Unit), it can quickly handle complex algorithms and real-time tasks.
Memory: Standard 4MB shared DRAM, supports expansion up to 16MB, and some models can be increased to 64MB by expanding the mezzanine. It also has 512KB of SRAM with a spare battery, which is used to protect critical data in case of power failure.
Storage: Built-in 1MB Flash memory (2MB for some models), supports EPROM and Flash expansion.

Interface: It provides 4 serial communication ports, including EIA-232 and EIA-422/485 standards, and supports multiple communication protocols. It is equipped with 4 IndustryPack interfaces and an optional SCSI bus interface. It also comes with an Ethernet port that supports 32-bit DMA.
Power supply: Supports wide-range DC input of + 5V and ±12V, with a typical power consumption of 20W.
Backplane current: At 5Vdc, the backplane current consumption is 450mA (typical).
Working environment: The working temperature range is -40 °C to + 85°C, the relative humidity is 5% to 95% (without condensation), and the seismic performance complies with the MIL-STD-810 standard.
