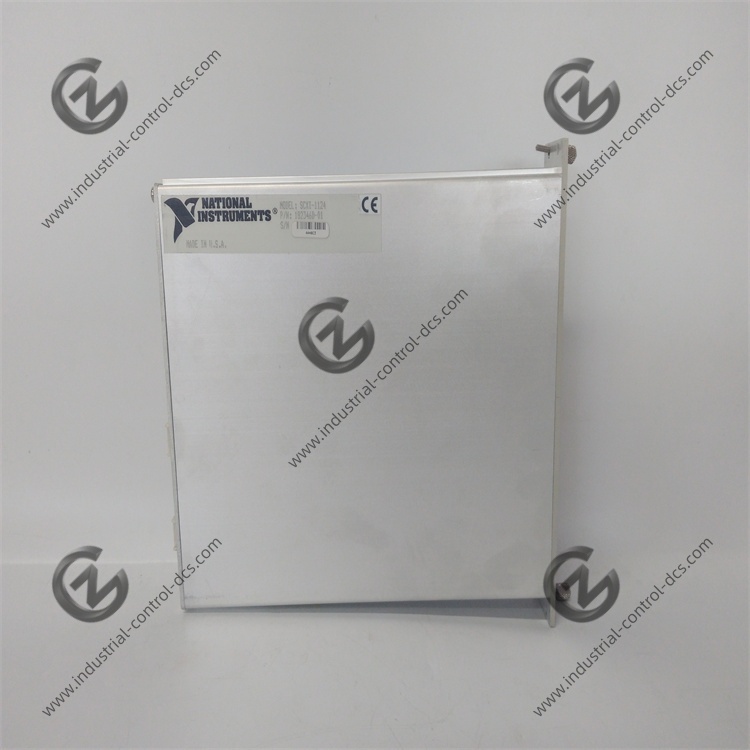

Channel & Wiring Configuration

• 6 independent fully isolated analog output channels
• Channel-to-channel & channel-to-chassis galvanic isolation
• Single DAQ digital control channel for all 6 output channels

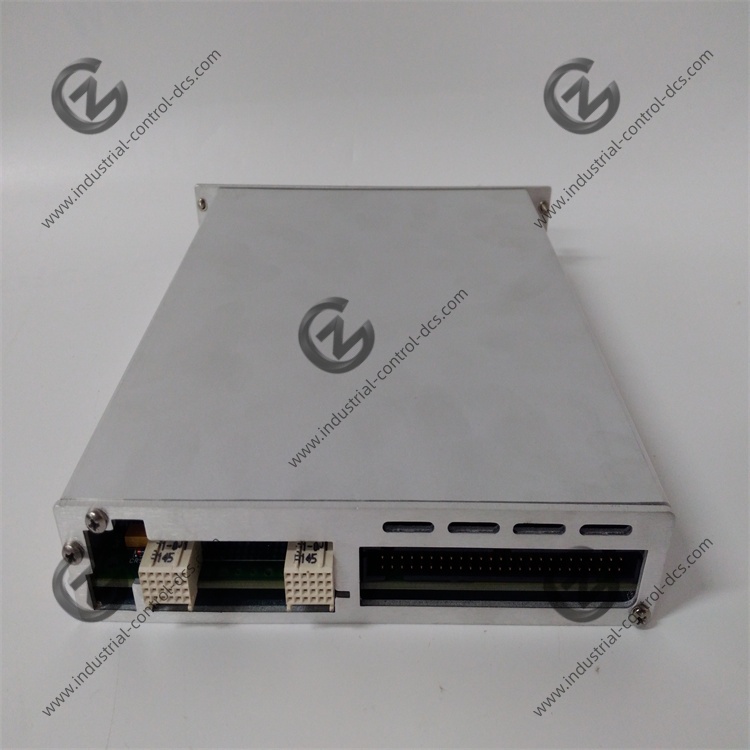

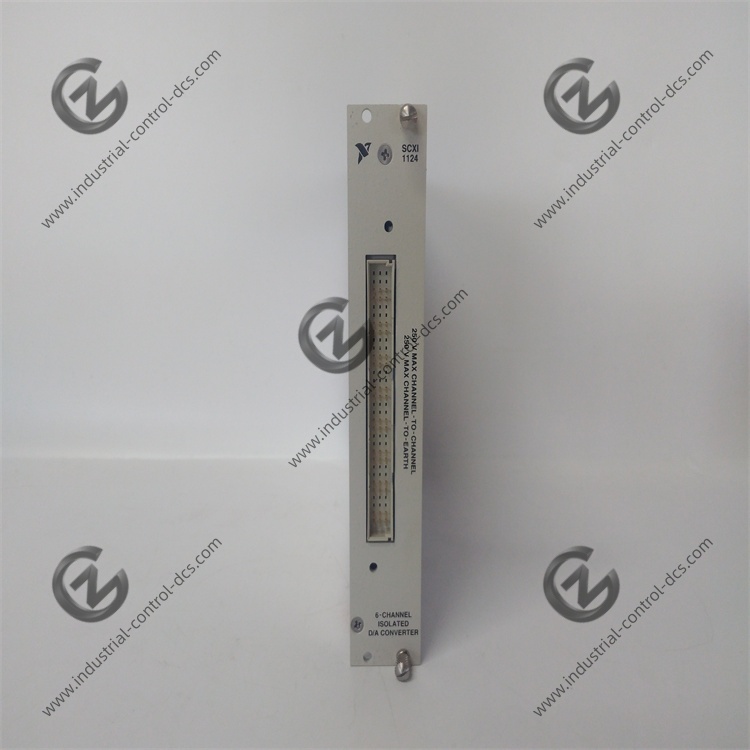

• Front 96-pin DIN connector, rear standard SCXI backplane interface

Programmable Output Ranges

• Voltage Output (3 bipolar, 3 unipolar): ±1 V, ±5 V, ±10 V, 0-1 V, 0-5 V, 0-10 V
• Current Output: 0-20 mA (default compatible with 4-20 mA loop)
• DAC Resolution: 16-bit monotonic conversion
• Max update rate: 30 Hz per channel (low-bandwidth DC output only)

Calibration & Filter Parameters

• Onboard non-volatile EEPROM for calibration coefficient storage
• Built-in low-pass RC filter for DC signal smoothing, fixed 35 Hz cutoff
• Max output settling time: 65 ms to reach full-scale accuracy
• Output short-circuit protection for all individual channels

Key Electrical Specifications

• Isolation withstand voltage: 250 Vrms continuous, 1000 V transient surge
• Absolute accuracy: ±0.1% FSR maximum at 25℃
• Output drive capability: ±10 mA for voltage mode, 20 mA for current mode
• Output ripple & noise: <1.2 mVpp within 100 Hz bandwidth
• Power consumption: 4.2 W typical operating power
• Isolation safety certification: CE, UL, CSA, IEC 61010-1

Mechanical & Environmental Specifications

• Dimension: 172×86×32 mm, standard single-slot SCXI module
• Operating temperature: -40℃ ~ +85℃
• Storage temperature: -55℃ ~ +100℃
• Humidity: 10%–90% non-condensing

Software Compatibility

• Drivers: NI-DAQmx, Traditional NI-DAQ
• Supported software: LabVIEW, LabWindows/CVI, Python DAQmx, C#
• Perfect matched terminal block: SCXI-1325 high-voltage isolated terminal block

Pros & Limitations

• Pros: Independent channel isolation, dual voltage/current output, onboard calibration storage, wide temperature tolerance, high safety for industrial loop control
• Limitations: Low update rate only for DC/static signals, obsolete official inventory, no high-speed dynamic output support
