Description

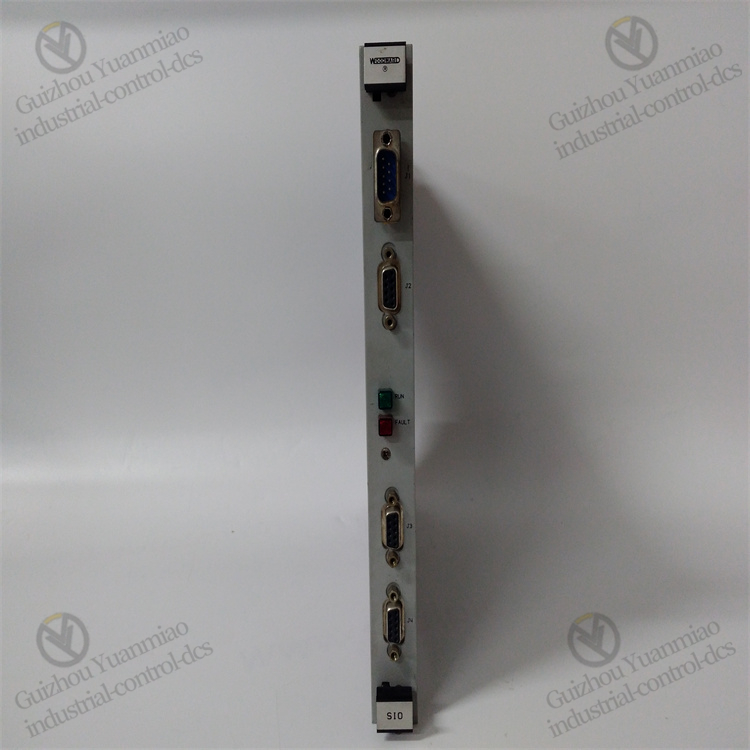

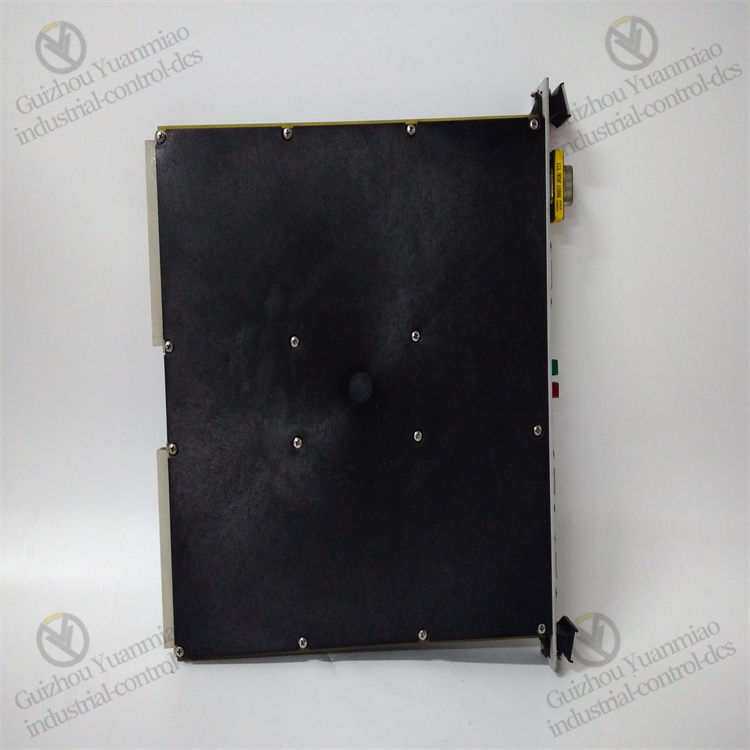

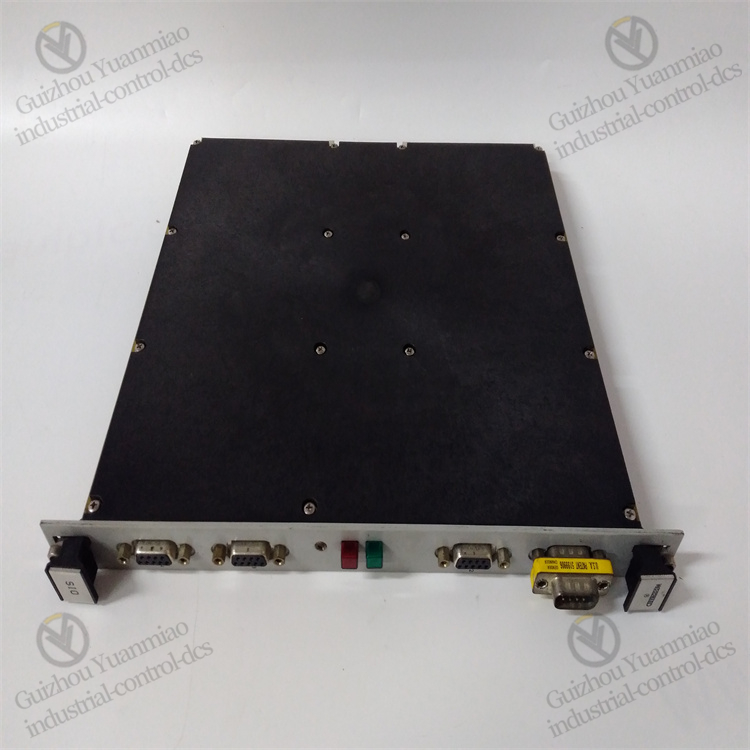

Woodward  5501-471  Multi-functional I/O Expansion module

Basic Information

• Series: Woodward MicroNet digital control series
• Functional Positioning: Multi-function I/O expansion module
• Input Voltage: 24VDC (wide range of 18-32VDC)
• Power Consumption: <10W
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +125°C
• Protection Level: IP65 (dustproof and splashproof)
• Dimensions: 110mm x 110mm x 55mm
• Weight: Approximately 1.2kg

Channel Configuration

• Digital Input: 16 channels, supporting dry or wet contact input
• Digital Output: 16 channels, relay output (2A/point) or transistor output (0.5A/point)
• Analog Input: 8 channels, configurable for 4-20mA or 0-10V
• Analog Output: 4 channels, configurable for 4-20mA or 0-10V
• Pulse Input: 2 channels, high-speed counters (up to 100kHz)

Product Features

High Reliability

• Industrial-grade design, vibration and shock resistant (compliant with IEC 60068 standards)
• Redundant power input, supporting hot-swappable replacement
• Built-in surge protection (6kV) and ESD protection (±15kV)

Flexible Configuration

• All I/O channels can be configured via software, supporting multiple signal types
• Modular design, expandable to up to 8 I/O modules
• Supports hot-swapping without shutdown for maintenance

High-Precision Signal Processing

• Analog input resolution: 16 bits
• Analog output resolution: 12 bits
• Temperature drift: <50ppm/°C

Communication Capability

• Built-in Modbus RTU/TCP protocol
• Supports optional communication modules such as Profibus-DP and Ethernet/IP
• Dual communication ports, supporting daisy chain topology

Main Functions

Signal Expansion

• Provides additional I/O channels for Woodward controllers (such as 5501-470) to meet complex system requirements.

Data Acquisition

• Collects analog signals like temperature, pressure, and flow, as well as digital signals such as switch status and valve positions.

Execution Control

• Outputs analog signals to control regulating valves and frequency converters, or controls actuators like relays and solenoid valves through digital outputs.

Safety Interlocking

• Supports Emergency Shutdown (ESD) and safety loops to ensure safe equipment operation.

Application Fields

Power Generation and Energy

• Gas turbine/steam turbine control
• Generator protection systems
• Boiler water level/pressure control

Industrial Automation

• Production line monitoring and control
• Robot interface expansion
• Process variable acquisition and adjustment

Oil and Gas

• Pipeline pressure monitoring
• Compressor control
• Offshore platform safety systems

Transportation

• Rail transit signal systems
• Marine power control
• Airport baggage handling systems

Technical Comparison

Fault Diagnosis and Maintenance

LED Status Indication

• Each I/O channel is equipped with status indicator lights to display signal status in real time.
• Module-level indicators show power, communication, and fault status.

Remote Monitoring

• Reads diagnostic information via MODBUS or other protocols.
• Supports fault code upload (e.g., overvoltage, short circuit, open circuit).

Hot-Swap Maintenance

• Supports online module replacement without shutdown.
• Automatically saves configuration parameters, eliminating the need for reconfiguration after replacement.
