Description

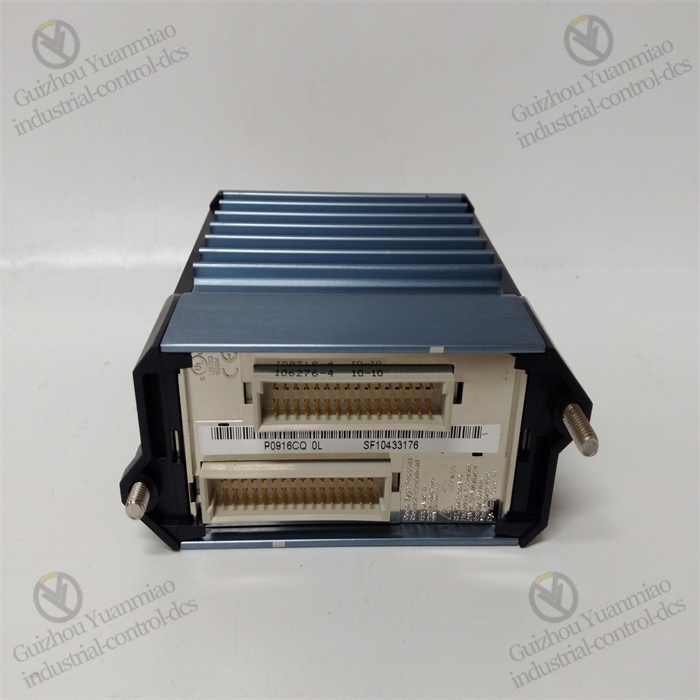

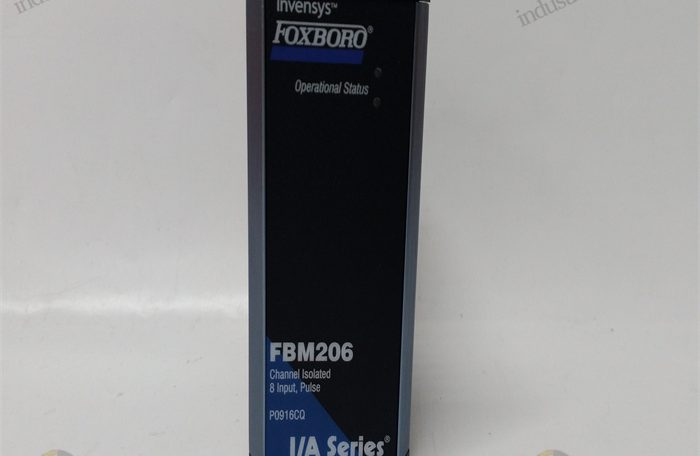

Foxboro P0916CQ I/O Module
Foxboro P0916CQ is an I/O module specially designed for industrial automation control systems, often referred to as the FBM206 pulse input module. It belongs to the Foxboro I/A Series system and performs excellently in high-precision motion control and signal processing scenarios. The following is a detailed introduction:
Main Features
High-speed Pulse Signal Processing Capability
- Supports high-frequency pulse input and output, can receive high-speed pulse signals (up to 1MHz) from encoders, linear scales and other devices, and can real-time capture dynamic parameters such as position and speed of equipment.
- Equipped with pulse generation function, it can output precise pulse and direction commands to directly drive actuators such as servo drives and stepping motors, realizing complex motion control such as fixed-length cutting, synchronous transmission and precise positioning.
Real-time Control Independent of Controllers
- Built-in dedicated motion control chip, which can independently complete tasks such as pulse counting, speed calculation and position closed-loop control without the main controller. The response time is not affected by the controller’s scanning cycle (avoiding delays caused by processor load), and the control accuracy can reach the micrometer or millisecond level.
Flexible Multi-channel Configuration
- Usually equipped with 4-8 independent pulse input/output channels, supporting differential signal input (with stronger anti-interference ability), and can connect multiple motion axes or detection devices at the same time, meeting the needs of multi-axis linkage control (such as synchronous movement of XY platforms, coordination of multiple stations in assembly lines).
Industrial-grade Reliability Design
- 1500Vrms electrical isolation is adopted between channels and between channels and the system, effectively resisting electromagnetic interference (EMI), ground loops and other problems in industrial sites, and protecting the module and upstream and downstream equipment.
- Wide operating temperature range (-40°C to +85°C) and protection level up to IP65/IP67 (requires sealed installation), adapting to harsh environments such as dust, humidity and vibration.
Integrated Diagnostic and Communication Functions
- Built-in self-diagnostic circuit, which can real-time monitor channel faults, signal loss, power supply abnormalities and other states, and feed back to the control system through Fieldbus or Ethernet, facilitating quick problem location.
- Supports HART, MODBUS and other protocols, can be seamlessly integrated with DCS and PLC systems, realizing remote configuration, parameter modification and status monitoring.
Technical Parameters (Typical Configuration)
| Parameter | Details |
|---|---|
| Number of Channels | 4-8 pulse input/output channels (mainly differential signals) |
| Pulse Input Range | 5V-24V differential pulses, maximum frequency 1MHz (counting range up to 32-bit unsigned integer) |
| Pulse Output Type | Open collector or differential output, supporting pulse + direction, CW/CCW dual pulse and other modes |
| Control Mode | Position mode, speed mode, torque mode (configurable via software) |
| Power Supply Voltage | 24VDC (supports redundant power supply to ensure uninterrupted operation) |
| Isolation Voltage | 1500Vrms (between channels, between channels and the system) |
| Operating Temperature | -40°C to +85°C |
| Protection Level | IP65/IP67 (requires a dedicated installation housing) |
| Dimensions (L×W×H) | Approximately 120mm × 100mm × 50mm (compact design, suitable for dense installation) |
Application Fields
Precision manufacturing industry: In scenarios such as auto parts processing (e.g., bearing grinding, gear meshing positioning), electronic packaging (e.g., chip mounting, PCB drilling), and medical device assembly, it is used to control the high-precision positioning and synchronous movement of robotic arms and conveyor belts.
Packaging and printing industry: Realizes fixed-length cutting of films and papers (error ≤ 0.1mm), overprint alignment of printed patterns, and compensates for material stretching or mechanical gaps through pulse counting.
Metallurgy and material processing: Monitors the speed and length of coiled materials in rolling mills and wire drawing machines, and controls the tension system to maintain constant tension, avoiding material breakage or wrinkling.
DCS system spare parts expansion: As a DCS spare part in process industries such as petroleum and chemical industry, it is compatible with analog, digital and HART signal processing, and is used for equipment speed monitoring (e.g., pulse-type speed sensors of pumps and fans).
Packaging and printing industry: Realizes fixed-length cutting of films and papers (error ≤ 0.1mm), overprint alignment of printed patterns, and compensates for material stretching or mechanical gaps through pulse counting.
Metallurgy and material processing: Monitors the speed and length of coiled materials in rolling mills and wire drawing machines, and controls the tension system to maintain constant tension, avoiding material breakage or wrinkling.
DCS system spare parts expansion: As a DCS spare part in process industries such as petroleum and chemical industry, it is compatible with analog, digital and HART signal processing, and is used for equipment speed monitoring (e.g., pulse-type speed sensors of pumps and fans).
Installation and Maintenance
Installation method: Adopts DIN rail or backplane installation, supports hot swapping, no need to shut down when replacing modules, reducing production interruption.
Wiring: Use shielded differential cables to connect pulse equipment to avoid electromagnetic interference; terminals adopt spring-type or screw-type design, ensuring firm wiring and easy debugging.
Diagnosis and calibration: Real-time viewing of pulse counting and channel status is available through I/A Series configuration software, supporting online calibration of pulse equivalent (e.g., number of pulses per millimeter), simplifying the debugging process.
Wiring: Use shielded differential cables to connect pulse equipment to avoid electromagnetic interference; terminals adopt spring-type or screw-type design, ensuring firm wiring and easy debugging.
Diagnosis and calibration: Real-time viewing of pulse counting and channel status is available through I/A Series configuration software, supporting online calibration of pulse equivalent (e.g., number of pulses per millimeter), simplifying the debugging process.
